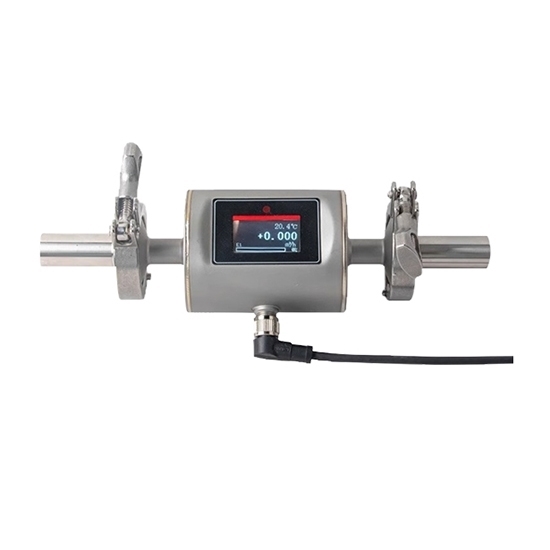

Micro Magnetic Flow Meter for Water/Liquid, DN6-DN65

5 out of 5 based on 1 reviews | Write a review

$1,194.63

Hot sale accurate measurement of liquid flow micro magnetic flow meter, using adaptable DN6-DN65 diameter! Suitable for water/liquid/conductive liquids, measuring accuracy up to ±0.5%, support RS485 and 4-20mA output, can be easily integrated into the automation system.

Nominal Diameter *

SKU: ATO-FLOW-FMX

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Compact magnetic flow meter will be the traditional electromagnetic flow meter sensor and converter integrated into the body to support the general diameter DN6~DN65 optional, small form, using infrared remote control for operation to measure the conductivity greater than 2us/cm conductive liquid volume flow, easy to install and commissioning is widely used in a variety of measurement of water/liquid industry.

Specification

Model	ATO-FMX240
Nominal Diameter	DN6~DN65
Measurement Range	Reference flow range table
Measurement Range Ratio	1:150
Measured Medium	Conductive liquid (conductivity not less than 2uS/cm)
Transmission Output	4~20mA, output load≤500 Ω
Communication Output	RS485 interface, MODBUS-RTU communication protocol
Flow Meter Liner	Polyetheretherketone (PEEK) lining
Power Supply	18~36VDC
Power Consumption	≤5W
Electrical Interfaces	M12-4 pole connector
Process Connections	Clamp
Accuracy	±0.5%
Repeatability	≤0.1%
Medium Temperature	0°C~100°C
Process Pressure	-0.1MPa~6.3MPa
Conductivity	≥2μS/cm
Ambient Temperature	-20°C~60°C
Storage Temperature	-25°C~85°C
Relative Humidity	5%RH~95%RH
Protection Class	IP67

Flow Meter Flow Range

Nominal Diameter	Flow Rate Range
DN6	6L/h~900L/h (0.006m³/h~0.9m³/h)
DN10	15L/h~2250L/h (0.015m³/h~2.25m³/h)
DN15	40L/h~6000L/h (0.04m³/h~6m³/h)
DN20	60L/h~9000L/h (0.06m³/h~9m³/h)
DN25	100L/h~15000L/h (0.1m³/h~15m³/h)
DN32	150L/h~2250L/h (0.15m³/h~22.5m³/h)
DN40	250L/h~37500L/h (0.25m³/h~37.5m³/h)
DN50	400L/h~60000L/h (0.4m³/h~60m³/h)
DN65	500L/h~75000L/h (0.5m³/h~75m³/h)

Dimension (unit: mm)

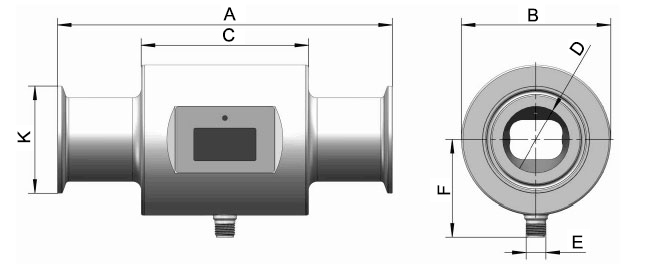

Micro magnetic flow meter size

Size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	K (clamp) (mm)
DN6	150	70	90	6	M12×1	38.5	50.5
DN10	150	70	90	10	M12×1	38.5	50.5
DN15	150	70	90	15	M12×1	38.5	50.5
DN20	150	70	90	20	M12×1	45	50.5
DN25	150	76	90	25	M12×1	45	50.5
DN32	150	76	100	32	M12×1	57.5	50.5
DN40	200	89	100	40	M12×1	57.5	64
DN50	200	95	100	50	M12×1	57.5	77.5
DN65	200	95	100	65	M12×1	57.5	91

Detail

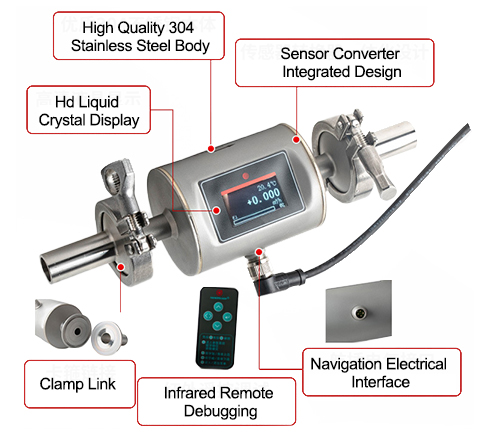

Micro magnetic flow meter detail

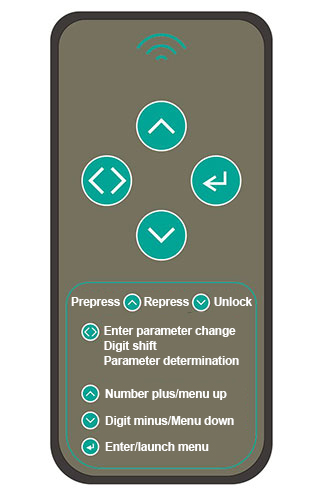

Infrared Remote Control Details

Micro magnetic flow meter infrared remote control details

Logo	Key Name	Function
Up Key + Down Key	Unlock key	Press the up button first, then the down button to unlock the function.
Up Button	Up button	Digit plus or menu up to select
Left Button	Left button	Enter parameter modification
		Digital displacement
		Parameter determination
Down Key	Down button	Digit minus or menu down select
Right Button	Right button	Enter the password input screen
Right Button	Right button	Exit menu

Application

Micro magnetic flow meter application

Tips: Compact flow meter measurement principle

Electromagnetic flow meter to take advanced low-frequency square wave excitation design, the working principle is based on Faraday's law of electromagnetic induction. water flow meter up and down the two ends of the two electromagnetic coils produce a constant or alternating magnetic field, when the conductive medium flow through the electromagnetic flow meter, electromagnetic water flow meter pipe wall between the two electrodes can be detected between the induction of electric potential.

The size of the induced electromotive force and the conductive medium flow rate, the magnetic induction strength of the magnetic field, the width of the conductor (flowmeter measuring tube diameter) is proportional to the medium flow rate can be obtained through the operation.

The induced electromotive force equation is: E = K x B x V x D

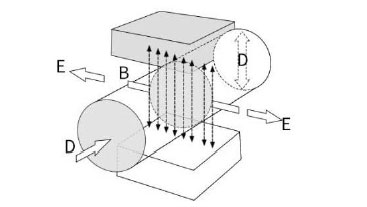

Induced electromotive force equation

E an induced electromotive force.
K a meter constant.
B is the magnetic induction.
V is the average flow velocity in the cross-section of the measuring tube.
D is the inner diameter of the measuring tube.
