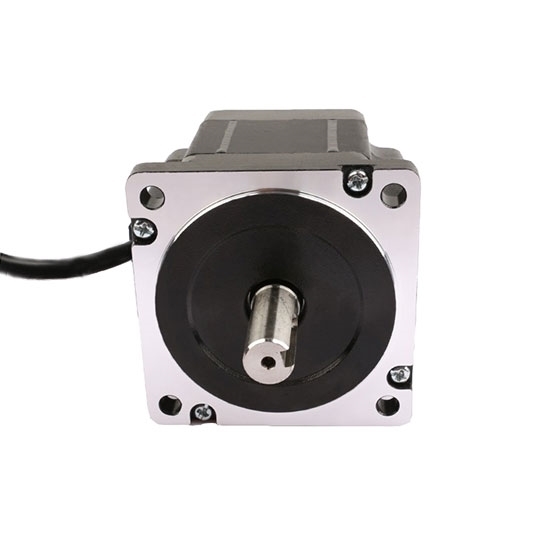

    Nema 34 Stepper Motor, 1.1A, 1.2 degree, 3 phase 6 wires

    $110.46
    3-phase 6-wire Nema 34 Stepper motor features 1.2 deg. step angle(300 steps/revolution). Each phase draws current 1.1A, allowing for holding torque of 5.4Nm. Brand new and manufacturer direct sale.
    SKU: ATO3096-1106A

    Nema 34 Stepper motor, 5.4Nm holding torque, 1.1A phase curent, 1.2° step angle, manufacturer direct sale.

    Specification

    Basics Model ATO3096-1106A
    Holding torque 5.4Nm
    Current/phase 1.1A
    Resistance 10.3Ω
    Step angle 1.2°
    Rotor inertia 2200g.cm²
    Weight 2.8kg
    Length 96mm
    Motor leads 6
    Technical parameters Step Angle Accuracy ±5%(full step, no load)
    Resistance Accuracy ±10%
    Inductance Accuracy ±20%
    Temperature Rise 80℃ Max.(rated current, 2 phase on)
    Ambient Temperature -10℃~+ 50℃
    Insulation Resistance 100MΩ Min 500V DC
    Dielectric Strength 500V AC for one minute
    Shaft Radial Play 0.06Max.(450g)
    Shaft Axial Play 0.08Max.(450g)

    Dimensions

    nema 34 stepper motor dimension

    Motor Connection

    3 phase stepper motor wiring

    Tips: What is 2-phase stepper motor?

    2-phase stepper motor is the most common stepper motor and also the choice with best performance ratio. Therefore, under the circumstance of no special requirements, it is necessary to give priority in choosing the 2-phase stepper motor. The 2-pahse stepper motors are mainly hybrid stepper motors. The smoothness of 2-phase stepper is not better than that of 3-phase and 5-phase stepper motor. However, the usage requirements of majority of users can be satisfied under the circumstance of subdivided drive. The stepping angle of 2-pahse hybrid stepping angle is generally 1.8° and 0.9°, first of which is common while 0.9° will be taken into account for the occasion of low-velocity rotation. As for 2-pahse hybrid stepper motor, there are also stepping angles namely 3.6° and 3.75°, which are not common. The stepping angle with large stepping angle is applicable for the occasion of high-velocity rotation, featuring relatively low noise.
    The size range of common flange of 2-phase stepping motor is 20-110mm. Compared to the stepper motor with larger size of flange, 3-phase stepper motor is more advantageous. Meanwhile, compared to the stepper motor with smaller size of flange, PM stepper motor has obvious advantage over size and cost.
