Nema 8 Micro Stepper Motor, 12V/ 24V, 2 Phase, Bipolar

Write a review

$43.69

Cheap Nema 8 micro stepper motor for sale, 2 phase. Optional rated voltage 12V/24V, corresponding current 0.6A/0.3A, resistance 20Ω/6.5Ω, holding torque 11/15 mN-m, stepping angle 18°. Miniature bipolar stepper motor with metal gear, good price.

Rated Voltage *

SKU: ATO-MGSTEP-812242

This product has a minimum quantity of 2

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Buy 2-phase micro stepper motor at low price. Motor size Nema 8 (20mm), rated voltage DC 12V/24V, current 0.6Amp/0.3Amp, resistance 20Ω/6.5Ω, stepping angle 18 degree. Miniature stepper motor with metal gear, bipolar drive, used in medical equipment, printer, scanner, automotive meter, gas range, sewing machine, security systems, optical fiber welding equipment, etc.

Specification Datasheet

Model	ATO-SM2014	ATO-SM2019
Rated Voltage	24V	12V
Rated Current	0.3A	0.6A
Resistance	6.5Ω	20Ω
Phase	2 Phase	2 Phase
Stepping Angle	18°	18°
Excitation Method	2	2
Pull-in Torque	5.2 mN-m (500 pps)	3.2 mN-m (500 pps)
Pull-out Torque	6.5 mN-m (500 pps)	4.5 mN-m (500 pps)
Holding Torque	15.0 mN-m (0 pps)	11.0 mN-m (0 pps)
Max. Continuous Response Frequency	1200 pps	1200 pps
Max. Starting Frequency	900 pps	900 pps
Drive Mode	Bipolar Drive
Ambient Temperature	0℃~55℃
Insulation Resistance	500VDC 100MΩ min
Insulation Grade	E

Phase Sequence Excitation & Dimensions Diagram (Unit: mm)

24V 0.3A Micro Stepper Motor (ATO-SM2014)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Yellow	ON	-	-	ON	A
2	Red	-	-	ON	ON	A
3	Black	ON	ON	-	-	B
4	Blue	-	ON	ON	-	B

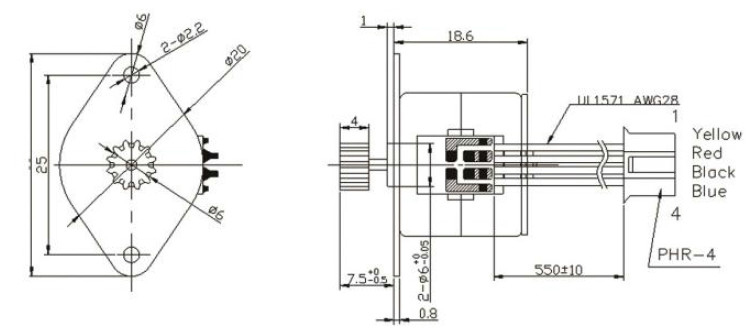

Dimensions of Nema 8 Micro Geared Stepper Motor, 24V, 0.3A, 2 Phase

12V 0.6A Micro Stepper Motor (ATO-SM2019)

Connector PIN Location
PIN No.	Color	CCW←→CW (Seen from flange side)				Phase
1	Yellow	ON	-	-	ON	A
2	Red	ON	ON	-	-	A
3	Black	-	-	ON	ON	B
4	Blue	-	ON	ON	-	B

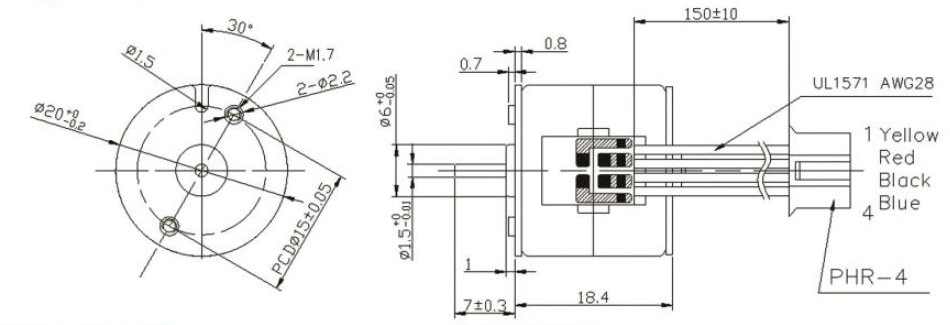

Dimensions of Nema 8 Micro Geared Stepper Motor, 12V, 0.6A, 2 Phase

Details

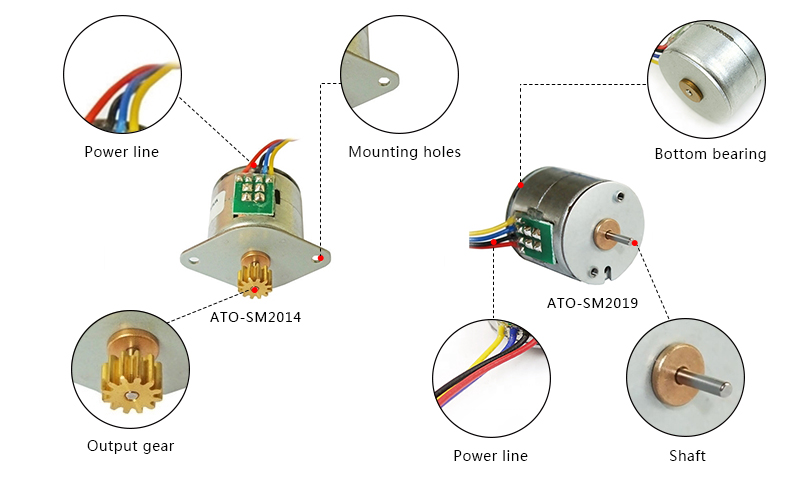

Nema 8 Micro Stepper Motor Details

Tips: Nema 8 micro stepper motor maintenance.

Zero excitation maintenance: maintain the Nema 8 micro stepper motor with an excitation circuit formed by a current relay.
Over-voltage maintenance: maintain the Nema 8 micro stepper motor with an armature circuit composed of over-voltage relay.
Overload protection: use an armature circuit composed of a current relay to maintain the Nema 8 micro stepper motor.
Overcurrent protection: use an armature circuit composed of overcurrent relay to maintain the Nema 8 micro stepper motor.
Grounding maintenance: Use a grounding device formed by voltage relay to maintain the Nema 8 micro stepper motor. When any point of the DC motor is grounded, the voltage relay will act to send out a warning signal or cut off the power supply.
