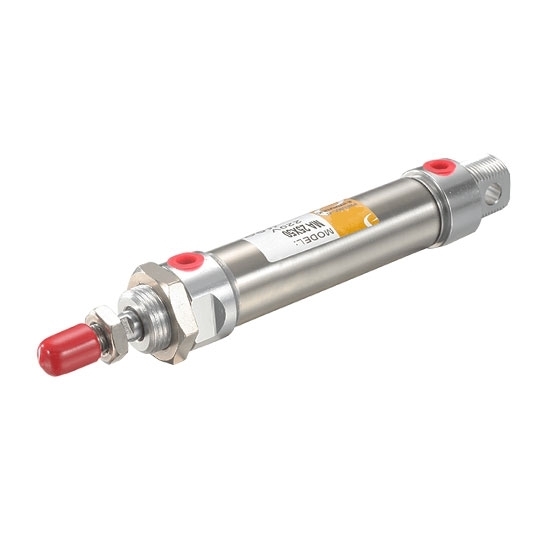

Double Acting Pneumatic Cylinder, 25mm Bore, 75mm Stroke

5 out of 5 based on 1 reviews | Write a review

$79.25

Mini pneumatic cylinder for sale, round body air cylinder bore size can select 12mm, 16mm, 20mm, 25mm, or 40mm, stroke length can choose 75mm, 100mm, 200mm or 300mm. Adjusting the cushioning of pneumatic cylinder, the material of stainless steel, double acting, bore and stroke can be customized.

Bore X Stroke *

SKU: ATO-CP-MA

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Round body air cylinder can choose different bore and stroke, 20mm bore X 200mm stroke, 25mm bore X 75mm stroke, 40mm bore X 300mm stroke (or other bore and stroke). The material of the cylinder tube is high precision stainless steel with high strength, good wear resistance and corrosion resistance.

Round body Air Cylinder Specifications

Model					ATO-CP-MA
Bore Size					12mm, 16mm, 20mm, 25mm, 32mm, 40mm
Stroke					25mm, 50mm, 75mm, 100mm, 200mm, 350mm, 500mm
Acting Type					Double Acting
Working Medium					Air
Max Pressure					0.1-0.9 Mpa
Working Temperature					-5~+70℃
Speed Range					50-800 mm/s
Cushion Type					Rubber Buffer
Port Size					M5 X 0.8", G 1/8"
Material					Stainless Steel

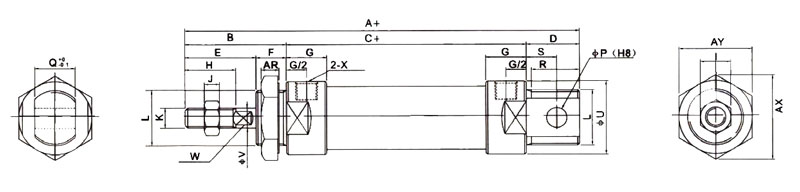

Double Acting Air Pneumatic Cylinder Dimension (mm)

Bore/ symbol	A	B	C	D	D1	E	F	G	H	I	J	K
16	114	38	60	16	15	22	16	10	16	10	5	M6 X 1.5
20	137	40	76	21	12	28	12	16	20	12	6	M8 X 1.5
25	141	44	76	21	14	30	14	16	22	17	6	M10 X 1.25
32	147	44	76	27	14	30	14	16	22	17	6	M10 X 1.25
40	149	46	76	27	14	32	14	16.7	24	17	7	M12 X 1.25

Bore/ symbol	M	P	Q	R	R1	S	U	V	W	AR	AX	AY
16	14	6	12	14	14	9	21	6	5	6	25	22
20	10	8	16	19	12	12	27	8	6	7	33	29
25	12	8	16	19	14	12	30	10	8	7	33	29
32	12	10	16	25	14	15	35	12	10	8	37	32
40	12	12	20	25	14	15	41.6	16	14	9	47	41

Tips: Difference between single acting pneumatic cylinders and double acting pneumatic cylinders
Single acting pneumatic cylinder with spring reset function, double acting pneumatic cylinder without spring reset function.
Spring reset function: The initial state of the valve is closed. Commonly known as Air open, after the valve opening, if the sudden gas source is broken, then the spring reset function will work, the spring reset would turn off the valve, the same, if the initial state of the valve is opened commonly known as gas closed after the valve closed, if the sudden gas source is broken, then the spring reset will open the valve.
Double acting pneumatic cylinder. Whether it is opened or closed, the valve need gas source, if the sudden gas source is broken, the valve will remain in the state of which at that time, the gas source reconnected on the valve can continue to work.

Existing reviews of Double Acting Pneumatic Cylinder, 25mm Bore, 75mm Stroke

Great double acting pneumatic cylinder!

So far this double acting cylinder is working fine. Been running for a few hours so far without any issues. I have been running the air supply at 200 PSI. It does crush cans well. I was able to crush the jar down to about 1/2 inch without much trouble. That's great!

From: Bil | Date: 07/04/2022
