Portable Air Quality Sensor, Stainless Steel Pipe Type

Write a review

$142.65

Portable air quality sensor with a stainless steel pipe and ABS flame-retardant housing, supporting RS485 and 0-20mA output. High accuracy, good linearity, and stable measurement results unaffected by environmental factors. Insert-type structure with flange and air guide tube for easy installation. Wide measurement range capable of detecting both low-level and high-level physical quantities.

Air Type *

SKU: ATO-AQS-820B

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Portable air quality sensor online with a stainless steel duct tube and flame-retardant housing, providing reliable digital and analog outputs. Offers stable, accurate performance and easy installation with its insert-type flange design, suitable for a wide range of air quality measurements.

Specification

Model	ATO-FS00820B
Operating Voltage	DC 10V ~ 30V (Standard 24V)
Operating Current	≤ 200 mA
Warm-up Time	3 min
Output Type	Modbus-RS485 / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V
Material	ABS Flame-Retardant Housing (stainless steel air pipe)
Installation Method	Duct-type
Operating Temperature	-10°C ~ 50°C
Operating Humidity	0%RH ~ 95%RH (non-condensing)
Storage Temperature	-30°C ~ 60°C
Storage Humidity	0 ~ 99%RH (non-condensing)

Wiring & Signals

Red	VCC Power Input DC24V
Black	GND Ground Terminal
Blue	Modbus-A	V1	IOUT1
Green	Modbus-B	V2	IOUT2
Temperature and Humidity Sensor: V1/IOUT1 Humidity, V2/IOUT2 Temperature Other Sensors: V1/IOUT1 Sensor Data

Detectable Gas Information

Category	Air Type	Range	Resolution	Accuracy	Service Life (in air)
General Gases	CO₂	400 ~ 5000ppm	1ppm	±(50 ppm + 3% of reading)	10 years
	CH₂O	0 ~ 1500μg/m³	1μg/m³	±10% of reading	2 years
	TVOC	0 ~ 5000μg/m³	1μg/m³	±10% of reading	10 years
Special Gases	O₃	0 ~ 10ppm	0.001ppm	±2% of reading	2 years
	CH₄	0 ~ 100%LEL	1%LEL	±5% of reading	3 years
	CO	0 ~ 1000ppm	1ppm	±3% of reading	2 years
	NH₃	0 ~ 100ppm	0.1ppm	±5% of reading	2 years
	NO₂	0 ~ 20ppm	0.1ppm	±3% of reading	2 years
	SO₂	0 ~ 20ppm	0.1ppm	±3% of reading	2 years

Feature

Durable Housing: Portable air quality sensor with a stainless steel duct tube and ABS flame-retardant shell.
Multiple Outputs: Supports RS485 digital and analog output options.
High Accuracy: Air quality sensor provides precise measurements with excellent linearity.
Stable Performance: Results unaffected by environmental conditions.
Easy Installation: Insert-type flange design for duct mounting.
Wide Range: Accurate air quality sensor measures both low-level and high-level physical quantities.
Long Lifespan: Service life up to 10 years.

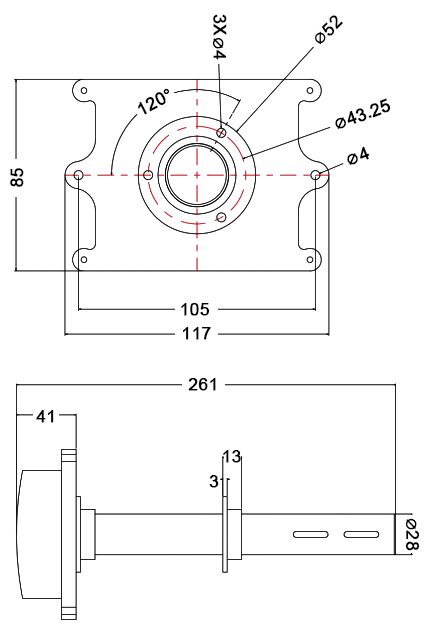

Size (unit: mm)

Portable air quality sensor size

Application

Portable air quality sensor application

Tips: What should be noted during use and storage this air quality sensor?

Avoid installing the air quality sensor in areas with high thermal conductivity or locations that create a direct temperature difference from the measurement zone, as this may lead to inaccurate readings.
Do not fully encapsulate with resin materials or immerse it in an oxygen-free environment; otherwise, its performance may be damaged.
Do not operate in environments containing corrosive gases for extended periods, as such gases can deteriorate the sensor.
When powered on for the first time, the portable air quality sensor requires a warm-up time of more than 3 minutes.
Do not use this module in systems involving personal safety.
If the air quality sensor needs to be placed in a confined space, ensure that the area is well-ventilated.
