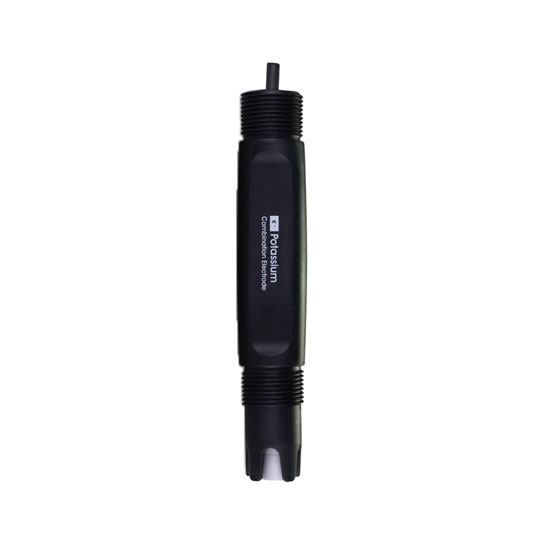

Potassium Sensor for Water Quality, 0.7~98,000 ppm

Write a review

$589.63

Good price potassium sensor with 0.7~98,000 ppm measurement range for water quality for sale. It has 0.01 ppm resolution, ±3% FS measurement accuracy. Digital potassium water quality sensor offers RS485 output signal. Application for drinking water, industrial circulation, wastewater, soil, seawater, and biological fluid testing.

SKU: ATO-WQS-IK

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Selling a potassium sensor with a 0.7 to 98,000 ppm range, 0.01 ppm resolution, and ±3% accuracy. It has RS485 output and is ideal for drinking water, wastewater, soil, seawater, and biological fluid testing.

Specification

Ion Concentration
Measurement Range	0.7~98,000 ppm
Resolution	0.01 ppm
Measurement Accuracy	±3% FS
Temperature
Measurement Range	-10.0 to 110.0 ℃
Resolution	0.1 ℃
Measurement Accuracy	±0.5 ℃
Temperature Type	Thermistor NTC10K
Temperature Compensation	Automatic
Data Transmission
Interface	RS-485
Protocol	MODBUS-RTU communication protocol
Other Parameters
Working Voltage	9~27 VDC
Dielectric Strength	2500 Vrms
Power Consumption	Approx. 0.5 W
Material	PPS Solid
Installation Method	3/4 inch front and rear thread
Slope	56±3 mV
Sensitivity	± 2%
Ion Selectivity	Cs⁺, NH₄⁺
Working Temperature Range	0°C to 50°C
Pressure Range	0 to 2 atm
Response Time	30 seconds to 95% response
Storage	Long-term storage: dry storage, short-term: store in high-standard electrolyte solution
pH Range	2~12 pH
Internal Resistance	20~50 MΩ
Maintenance	Rinse with distilled water and store in electrolyte solution
Online Monitoring	Supported
Reference Electrode	20 ppm K⁺
Connector	End terminal
Applications	Mineral water drinking water, industrial circulation, wastewater, soil, seawater, and biological fluid testing

Feature

Ionised water quality sensor features

High Precision Electrodes: The potassium sensor uses high-precision ion-selective electrodes for accurate, stable measurements without trial reagents.
Easy Installation: With a G3/4 pipe thread, the sensor is easy to install, reducing setup costs.
RS485 Output: Digital potassium water quality sensor supports RS485 output for seamless integration with monitoring systems.
Low Power Consumption: Operates with less than 0.5W, ensuring energy efficiency.
High-Quality Cable: Has a 5m (customizable) low-noise cable for stable data transmission.
Automatic Temperature Compensation: Adjusts automatically to temperature changes for stable readings.
Durability and Environmental Resistance: Designed to withstand external environmental factors, suitable for various industrial and natural settings.

Dimension (Unit: mm)

Ionised water quality sensor size

Wiring Instructions

Function	Color	Description
Data Transmission	Yellow Wire	RS-485 Communication T/R+ (A)
Data Transmission	White Wire	RS-485 Communication T/R− (B)
Power Supply	Red Wire	DC Power Positive
Power Supply	Black Wire	DC Power Ground

Application

Ionised water quality sensor application

Tips: How does the potassium sensor compensate for temperature variations?

The potassium sensor is equipped with automatic temperature compensation. This feature adjusts the readings based on temperature fluctuations, ensuring that the sensor maintains accurate and stable data regardless of temperature changes. Since temperature can significantly affect the ion concentration in water, automatic compensation helps eliminate this variable and enhances the reliability of the readings in environments where the water temperature may change frequently, such as in outdoor applications or in industrial environments where water is heated or cooled.
