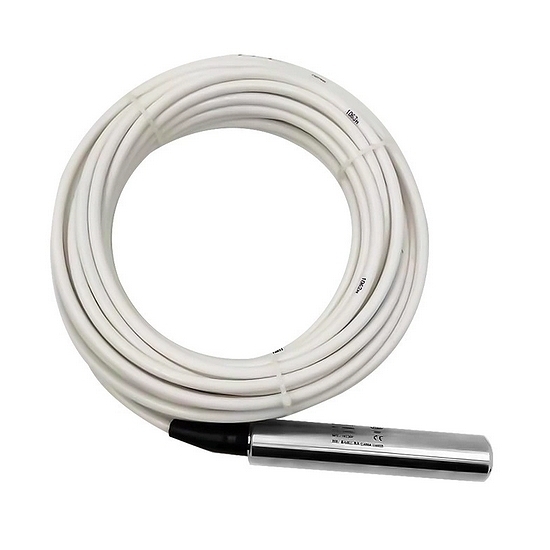

PTFE Submersible Level Sensor for Seawater, 4-20mA

This submersible level sensor features a diffused silicon sensing core, anti-clogging pressure inlet, and dual waterproof sealing for dependable operation. It supports 24V DC power, 150% overload capacity, IP68 probe protection, and optional 0-5V, 0-10V, or RS485 outputs. Buy now for stable level measurement in demanding applications.

Specification

Features

1. PTFE Corrosion Protection: The submersible level sensor features a 316 stainless steel housing, 316L diaphragm, and PTFE-protected cable, providing enhanced corrosion resistance for seawater, weak acids, weak alkalis, and other harsh media.
2. Wide 0–200m Measuring Range: With a measuring range of 0–200m and 0.5%FS accuracy, this level sensor provides reliable measurement for deep tanks, wells, reservoirs, and other large-scale liquid level monitoring applications.
3. Anti-Clogging Pressure Inlet: The water level sensor adopts a 45° inclined pressure inlet that helps reduce particle blockage and measurement errors caused by liquid fluctuations, improving measurement stability in challenging environments.
4. Reliable Waterproof Sealing: The submersible level sensor uses dual waterproof sealing and integrated laser welding to improve leak resistance and structural durability, with an IP68-rated probe for continuous submerged measurement.
5. Stable & High-Precision Measurement: By adopting a diffused silicon sensing core, the liquid level sensor achieves stable level measurement performance, with standard 0.5%FS accuracy and an optional 0.2%FS accuracy for higher-precision applications.
6. Flexible Signal Integration: The level sensor provides a standard 4–20mA output and optional 0–5V, 0–10V, or RS485 signals, enabling convenient integration with PLCs, monitoring systems, and industrial control equipment.

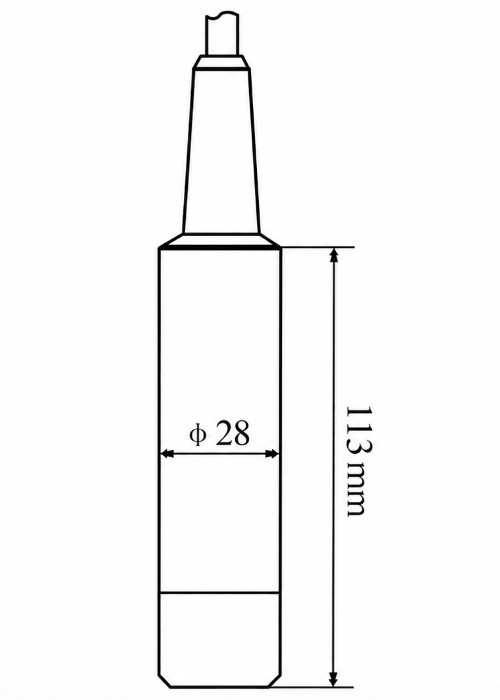

Dimension (unit: mm)

Tips: How does PTFE protect submersible level sensors?

PTFE provides a highly corrosion-resistant protective layer for a submersible level sensor, isolating the cable and internal components from corrosive liquids. Its excellent chemical resistance allows it to withstand seawater, salts, weak acids, weak alkalis, and other aggressive media, while its low surface energy helps resist liquid and contaminant adhesion. This combination improves cable durability, insulation stability, and long-term reliability, making PTFE protection particularly suitable for level sensors used in harsh submerged environments.
