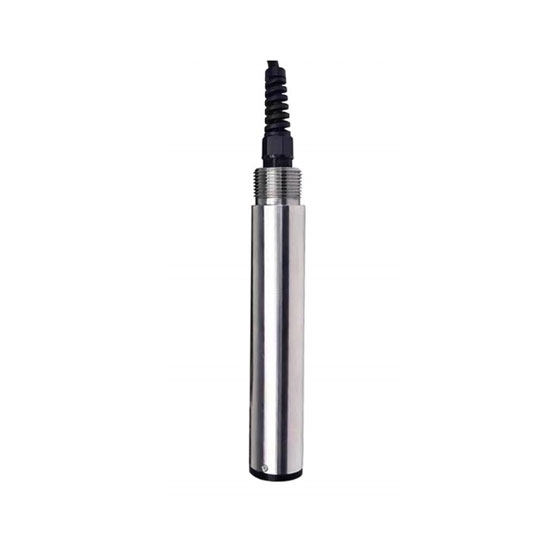

Suspended Solids Sensor for Water Quality, 0.5~2000mg/L

Write a review

$895.88

Smart online suspended solids sensor for professional water quality monitoring, measuring range 0.5~2000mg/L, has dual electrodes, RS485 communication, and IP68 protection. Offers reagent-free operation, eco-friendly design, and strong anti-interference capability. With automatic cleaning brush to effectively eliminate air bubbles. Suspended solids water quality sensor suitable for industrial wastewater, sewage treatment, aquaculture.

SKU: ATO-WQS-SS

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Highly accurate suspended solids water quality sensor with a 0.5~2000mg/L range, offers dual electrodes, RS485 output, IP68 protection, and automatic cleaning to remove air bubbles. It supports reagent-free, eco-friendly, and anti-interference operation, ideal for wastewater, sewage, and aquaculture monitoring.

Specification

Model	ATO-BSK-SS-100
Measuring Range	0.5 ~ 2000 mg/L
Accuracy	±2%
Resolution	0.1 mg/L
Stability	≤1 mg/L per 24 hours
Output Signal	RS485 (Standard Modbus-RTU protocol, default address: 01)
Power Supply	12~24V DC
Operating Environment	Temperature: 0~60°C; Humidity: ≤85% RH
Power Consumption	≤0.5W

Feature

High Stability: This suspended solids sensor provides excellent data stability for accurate and reliable measurements.
Compact & Portable: Highly integrated design with small size, low power consumption, and easy installation.
Cost-Effective: Designed to deliver high performance at low cost, the water quality sensor is ideal for budget-conscious monitoring solutions.
Durable & Reliable: Offers long service life and high reliability, reducing maintenance needs in continuous suspended solids detection.
Strong Anti-Interference: Equipped with a four-electrode structure to resist complex field interference, with waterproof rating up to IP68.
Long-Distance Transmission: Uses high-quality low-noise cables to ensure signal output distances over 20 meters for remote monitoring.
High Repeatability: Ensures consistent and repeatable data, enhancing confidence in long-term suspended solids measurements.
Light-Resistant: The suspended solids water quality sensor remains unaffected by ambient light, ensuring stable operation under various lighting conditions.

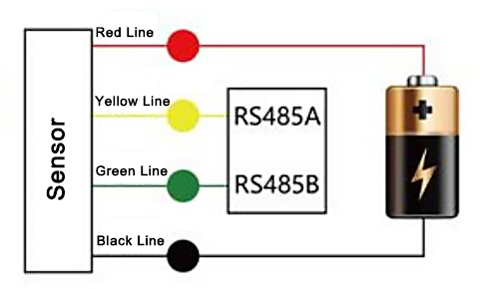

Wiring Diagram

Suspended solids sensor wiring diagram

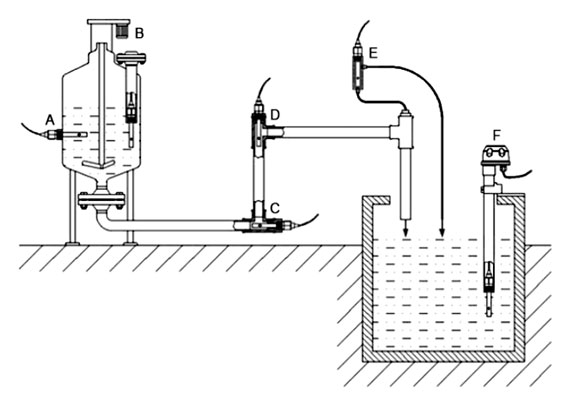

Installation Method

Suspended solids sensor mounting

A	B	C
Sidewall Mount	Top Flange Mount	Pipe Turning Mount
D	E	F
Pipe Turning Mount	Flow-through Mount	Submersible Mount

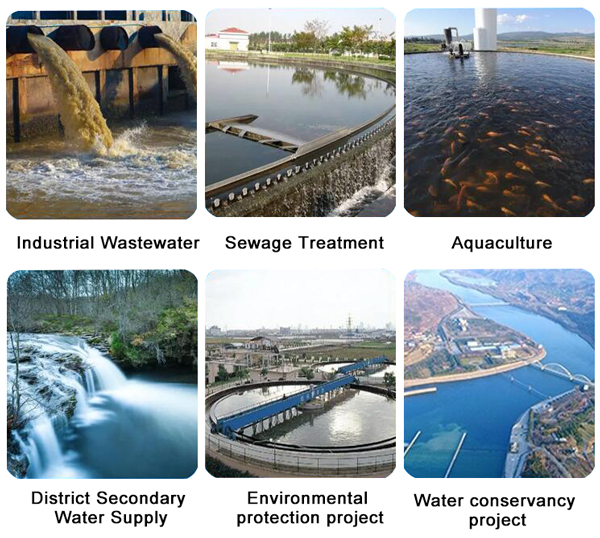

Application

Suspended solids sensor application

Tips: What sets the suspended solids sensor apart from traditional optical turbidity sensors?

Unlike traditional turbidity sensors that rely on light scattering or absorption and are easily affected by ambient light, this sensor measures suspended solids directly through electrode-based conductivity/resistivity methods. This makes it more resistant to light interference, more accurate in highly turbid water, and more suitable for detecting actual particulate concentration (mg/L) rather than indirect optical turbidity (NTU).
