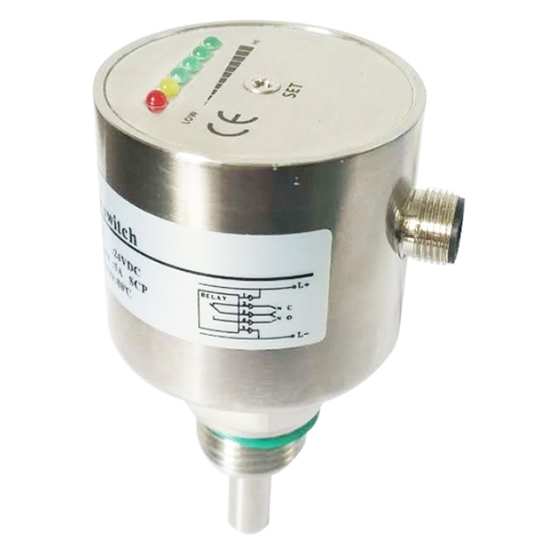

Thermal Dispersion Water Flow Switch, Relay/ 4-20mA

5 out of 5 based on 1 reviews | Write a review
$170.51
ATO thermal dispersion water flow switch has 6 LED lights to indicate the flow rate, which is very intuitive. The 4 optional output signals are PNP/ NPN/ Relay/ 4-20mA. The length of the sensor can be selected from 15mm, 20mm, 30mm, 40mm, 60mm, or can be customized as required.
*
*
*
SKU: ATO-RMD-F1
30-day Returns
Free Shipping
Delivery date: 6-12 days

With an accuracy of ±1-±10cm/s, the ATO-RMD-F1 water flow switch can easily measure water with a range of 3-300cm/s, air with 200-3000cm/s and oil with 3-300cm/s. It has stainless steel shell and IP67 protection grade. Good quality but lower cost.

Specification

Model ATO-RMD-F1
Media type Liquid
Measuring range Water 3-300cm/s, Air 200-3000cm/s, Oil 3-300cm/s
Accuracy ±1-±10cm/s
Settling time 3 minutes
Working pressure 100bar
Medium temperature -20℃ to 80℃
Thread G1/2, G1/4 Male Thread, M18 Female Thread
Power 24VDC, 110VAC, 220VAC
Output signal PNP/ NPN/ Relay/ 4-20mA
Sensor length 15mm, 20mm, 30mm, 40mm, 60mm
Setting Potentiometer
Consumption current <80mA
Flow indicator 6 LED lamps
Response time 2 (2-10)s
Max. temperature gradient of medium 300K/min
Protect Reverse/ Short/ Overload
Protection grade Ip67
Power connector M12 connector
Material

Sensor: ANSI316L

Body: ANSI316L

Load

Current: 250mA

Relay: 30VDC/5A, 110VAC/5A, 220VAC/5A

Net Weight 1kg
Single package size 140x120x110mm
Package type Carton box, each flow switch is individually packaged

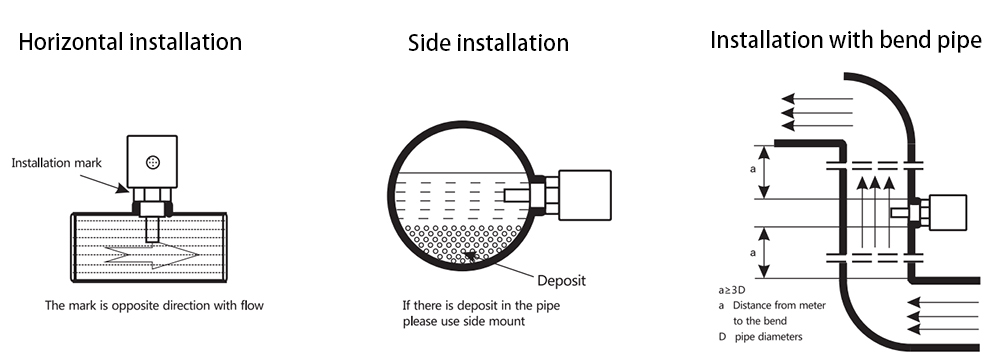

Thermal dispersion water flow switch installation diagram

Thermal dispersion flow switch installation diagram

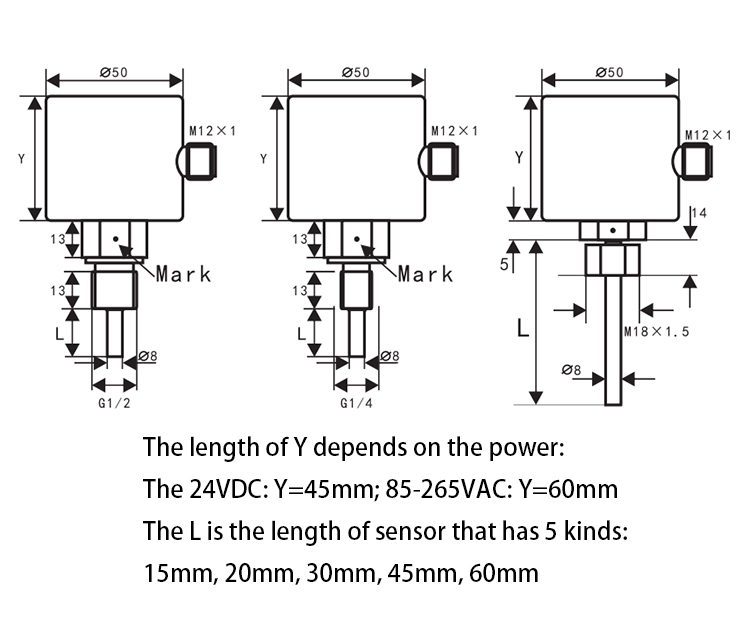

Thermal dispersion flow switch dimension diagram

Thermal dispersion water flow switch dimension diagram

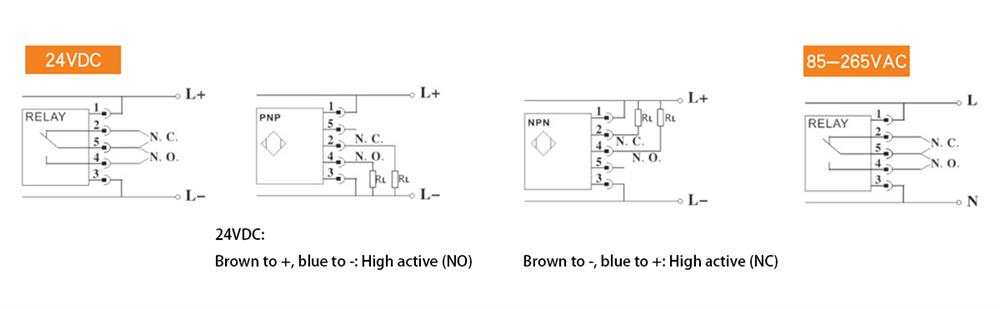

Thermal dispersion water flow switch wiring diagram

Thermal dispersion water flow switch wiring diagram

Recommended collocation

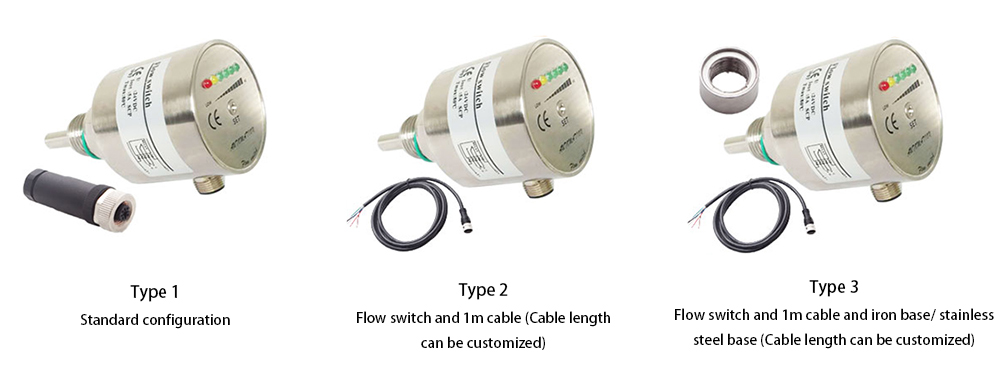

Flow switch recommended collocation

Details

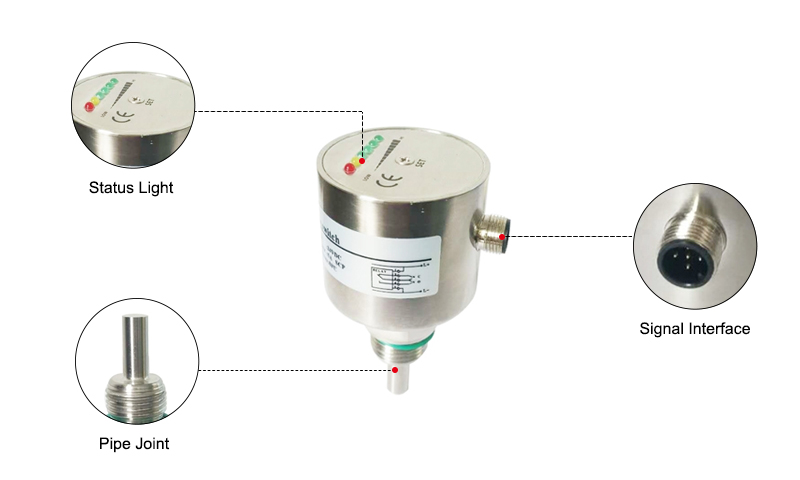

Thermal Dispersion Water Flow Switch Details

Tips: Advantages of ATO thermal dispersion flow switch

  • The probe has been specially treated with a protective film on the surface, which is completely anti-corrosion and anti-scaling.
  • ATO thermal dispersion flow switch is set directly through the drive screw and the dynamic potentiometer, without disassembly, so it is completely waterproof.
  • The original dual conditioning skills are used to make conditioning more convenient and more accurate.
  • The LED light can reflect the current flow.
  • Ultra-small shell, integrated planning, made of stainless steel, beautiful and durable.
  • The interface adopts a standard interface, which is completely compatible with other general flow switches and can be directly replaced.
  • ATO thermal dispersion flow switch can completely replace the currently commonly used monotonic thermal conductivity, which is the upgraded product of monotonic thermal conductivity.
