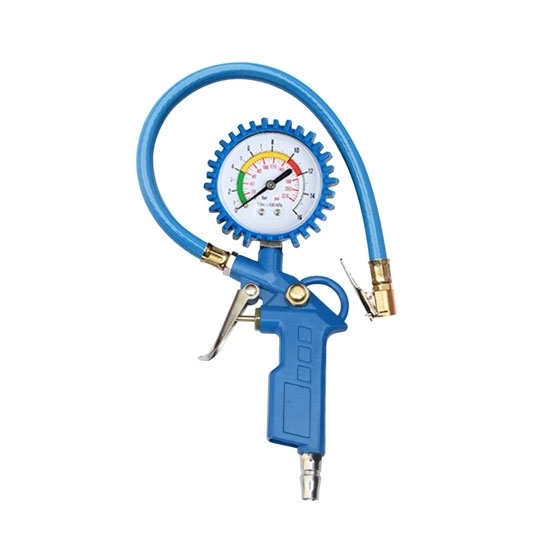

0~220 psi Tire Inflator with Pressure Gauge

Economical price tire inflator with mechanical pressure gauge is used for tire pressure checking, tire inflating and tire pressure releasing for various vehicle. It come with ergonomic handle, portable and easy to operate.

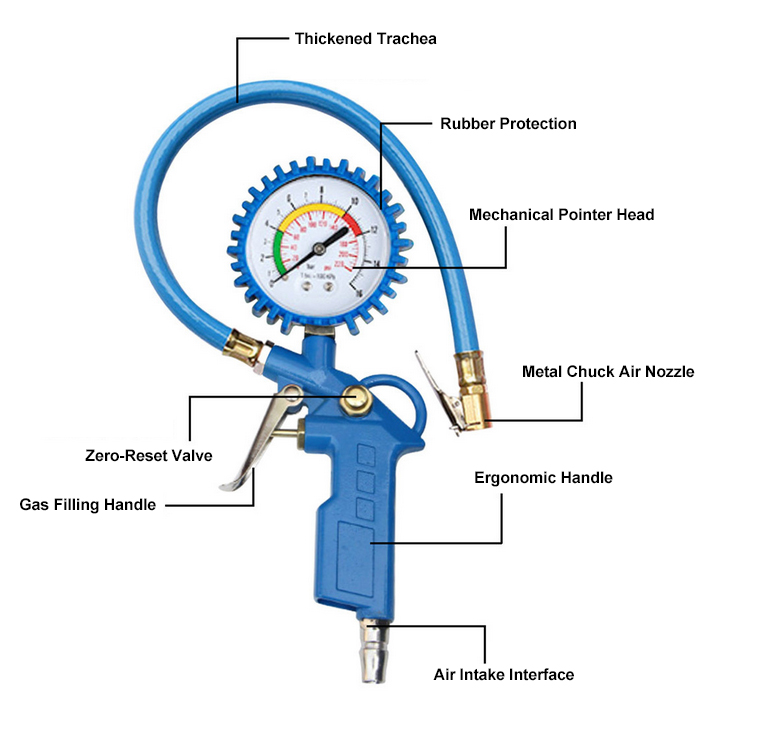

Features

• Industrial tire inflator with pressure gauge is powered by air compressor.
• It is a durable tool with anti-shock gauge and high property sealing valve.
• Ergonomic handle, portable and easy to operate.

Specification

• Model: ATO-TG-5
• Measuring Medium: Gas
• Pressure Measurement Range: 0~220 psi (0~15 bar)
• Working Pressure: 0~116 psi (0~8 bar)
• Working Temperature: -20°C ~ 60°C
• Gauge Accuracy: 2.0 Grade
• Gauge Type: Mechanical Gauge
• Display Unit: psi, bar
• Air Inlet: Customizable
• Pressure Gauge Diameter: 40mm
• Dimension: 550mm (L) * 180mm (W) * 40mm (H)

How to use a tire pressure gauge?

Connect the air compressor and insert the inflatable chuck into the tire valve to view the current tire pressure.

Tips: Tire pressure gauge advantages

Tire pressure monitoring is very necessary. The tire is the only part of the car that touches the ground. Both the driving force and the braking force come from the tire. The tire pressure gauge can play a role in ensuring the best condition of the tire. It has the following advantages:

1. Ensuring normal tire pressure plays a very important role in driving safety, and abnormal tire pressure may bring serious consequences every minute.
2. Reduce the braking performance. If the tire pressure is too high, the contact area between the tread and the ground is reduced, and the friction force is reduced, which will prolong the braking distance.
3. Extend tire life. If the tire pressure is too high, the middle of the tread will be excessively worn.
