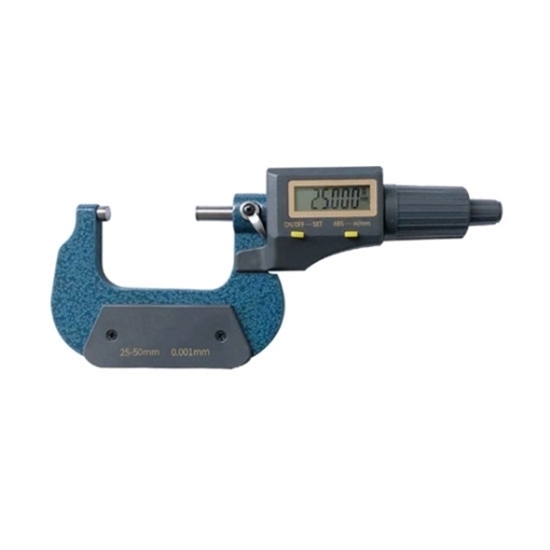

    1-2" Range Digital Micrometer, 0.0001 Inch Accuracy

    The digital micrometer has two types of reading, mechanical laser scale and digital display, with a range of 1 to 2 inches (25 to 50 mm) and a resolution of 0.00005 inches. IP65 protection allows the micrometer to withstand harsh environments with ease.
    SKU: ATO-DM-1025
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The electronic digital display micrometer uses a 3V large-capacity battery to ensure long-term measurement work, with a measuring range of 1~2 inches and an accuracy of 0.00005 inches. The digital outer diameter micrometer has mm/inch conversion/zero function for each position. Easy to use, suitable for novices and professionals alike.


    Model ATO-JZ25-50
    Digital Display Scale Digital display + scale
    Range 25~50mm (1~2 inch)
    Resolution 0.001 mm (0.00005 inch)
    Accuracy ±0.002mm (0.00005 inch)
    Metric to English Conversion Yes
    Home Position Measurement Yes
    Data Hold Yes
    Power Supply LR44 button cell
    Out of Tolerance Alert Yes
    Scale Body Quality High quality steel
    Product Process Surface spraying
    Scale Process Laser scale
    Packaging Drop-proof blow mold box


    Set zero

     Digital micrometer zeroing method

    1. Wipe the probe measuring.
    2. Probe closure.
    3. Lock the screw with the stopper.
    4. Use a wrench to pull the fixing sleeve until the zero line is aligned.

    Tips: Precautions for using a digital screw gauge

    • A digital screw gauge is a precision gauge, in the use and preservation of the process to prevent the loss of accuracy such as drop collision, otherwise needs to re-check the calibration before use.
    • Use as much as possible to avoid exposure to dusty places, and avoid the sun's ultraviolet-level high-temperature radiation.
    • Do not put the digital micrometer on the magnetic object, the workpiece needs to demagnetize after measurement.
    • Gasoline or alcohol can be used to scrub the measuring surface.
      Use temperature:0-40°C;Use humidity:≤80%
