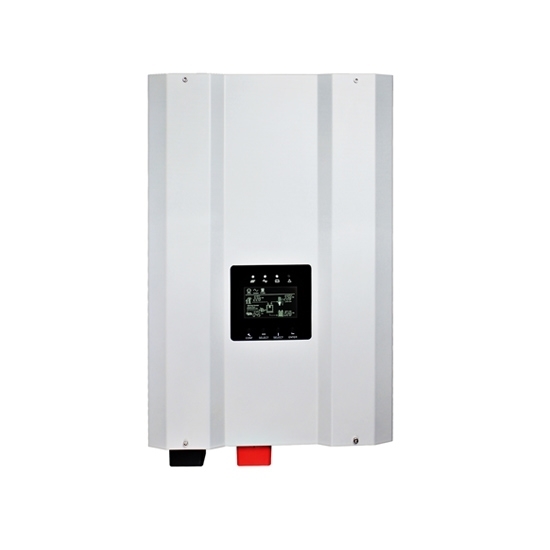

    10000 Watt 48V Pure Sine Wave Inverter Charger

    Popular 10000W pure sine wave inverter/charger, battery DC output voltage 48V, adjustable 5 stages AC charging current, high reliability. LED/LCD display, enhanced functions setting , via LCD, Man-machine intelligent design, 120 MPTT solar charger, multi-protections against overload, over-temperature, low battery and overcharge.
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    10000W pure sine wave inverter / charger, high reliability. Battery DC output voltage 48V, adjustable 5-level AC charging current. With multiple protection, overload, over temperature, low power, overcharge. built in 40A / 60A optional MPPT solar charger controller, LED / LCD display, enhanced function setting, through LCD display, man-machine intelligent design, more effectively.


    • GS Series AC/Solar charging Off-grid Hybrid Inverter
    • LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design
    • Built-in 40A/60A optional MPPT solar charger
    • LCD shows the solar capacity
    • Adjustable 5 stages AC charging current. AC charging also can be closed.
    • AC/DC priority modes can be set
    • Generator restart signal. (Dry contact)
    • 3 times peak power. Strong loading capacity
    • Overload, output short-circuit protection
    • Apply to Split Phase system, 2 live lines 1 neutral line, voltage is 120/240V.

    10000W Inverter/Charger Specification

    Model GS10000
    Power 10000 Watt
    Phase Single phase, Split phase
    AC Input Input Voltage Waveform sinusoidal (utility or generator)
    Nominal input Voltage HOT-N: 120V AC, 230V AC, 240V AC
    Split phase (HOT-HOT): 240V AC
    Low Line Disconnect 180Vac±4% (Normal) or 140Vac±4% (Wide)
    Low Line Re-connect 190Vac±4% (Normal) or 150Vac±4% (Wide)
    High Line Disconnect 270Vac±4% (Normal) or 270Vac±4% (Wide)
    High Line Re-connect 260Vac±4% (Normal) or 260Vac±4% (Wide)
    Max AC input Voltage Max280V
    Frequency 50Hz:41-54Hz, 60Hz:51-64Hz
    AC Output Output Voltage Waveform Sinewave
    Power Factor 1
    Nominal Output Voltage (V) HOT1-N: 120Vac ±10%rms; HOT2-N: 120Vac ±10%rms; HO1-HOT2: 240Vac ±10%rms
    output phase difference HOT1-N and HOT2-N is 180°; HOT1-N and HOT1-HOT2 is 0°; HOT2-N and HOT1-HOT2 is 180°
    Nominal Output Frequency (Hz) 50Hz ± 1Hz, 60Hz ± 1Hz
    AC Charger Nominal Charger Current 20A/35A/50A/70A/90A (According to the inverter model) ; adjustable 5 stages charging current;
    Over charge Protection Bat.V≥15.5VDC for 12V battery, Bat.V≥31.0VDC for 24V battery, Bat.V≥62.0VDC for 48V battery; beeps 0.5s every 1s & fault after 60s
    Solar charger Rated Charge Current alternative 40A/60A
    PV Input Voltage range 15VDC-40VDC for 12VDC, 30VDC-75VDC for 24VDC, 60-145VDC for 48V
    Max.PV open circuit array Voltage 12V for 40Vdc, 24V for 75Vdc, 48V for 145Vdc
    Charger mode MPPT
    PV Low Voltage Re-connect PV≥Bat.V+3V
    PV Low Voltage Disconnect PV≦Bat.V
    Effificiency ≥97%
    DC Input Battery Voltage 48VDC
    Low Battery Alarm 42VDC±1.2VDC
    Low DC input shut & down 40VDC±1.2VDC
    High DC input Alarm & Fault  64VDC±1.2VDC
    Efficiency Efficiency (Battery Mode) ≥87%
    Efficiency (Line Mode) >98%
    Transfer Time AC to DC 20ms (max)
    DC to AC 15ms (max)
    System Parameter Over-Load Protection 110%<load<150%, beeps 0.5s every 1s, and Fault after 60s off the output, load>150%, beeps 0.5s every 1s, and Fault after 20s
    Output Short Circuit Protection YES
    Surge Rating 1:3 (VA)
    Protections Low battery, over charging, over load, over temp
    Indicators LED+LCD Display
    General Specifications Operating Temperature Range 0℃~40℃
    Stor age Temperature ﹣15℃~60℃
    Operation humidity 5% to 95% (non-condensing)
    Audible Noise 80dB max
    cooling Forced air, variable speed fan
    Dimension (L*W*H) 627x416x204mm
    Net Weight (kg) 73kg

    *Note: Product specifications are subject to change without further notice.


    10000 Watt Pure Sine Wave Inverter Charger Details

    Inverter/Charger Applications

    Inverter charger applications

    Inverter Split-Phase Output Terminal Description

    Inverter split phase output terminal description

    Tips: What are the main characteristics and advantages of inverter?

    • The inverter has the characteristics of fast start and high conversion efficiency. It is worth saying that after improvement, its performance and functions in all aspects have been greatly improved, and the speed of converting current has been greatly improved, which has greatly improved its overall work efficiency. Therefore, people do not need to worry about the speed of its transformation.
    • It has to be said that the safety of the inverter. Electricity safety is crucial. In the research and development process, the personnel fully considered the Countermeasures under various conditions such as short circuit, negative pressure and overtemperature, so that it has the function of solving these problems. Therefore, it is a very safe power tool. There is no need to worry about potential safety hazards in the process of use.
    • The inverter also has very good stability. In case of insufficient voltage or negative pressure, it can better keep its performance unchanged.
