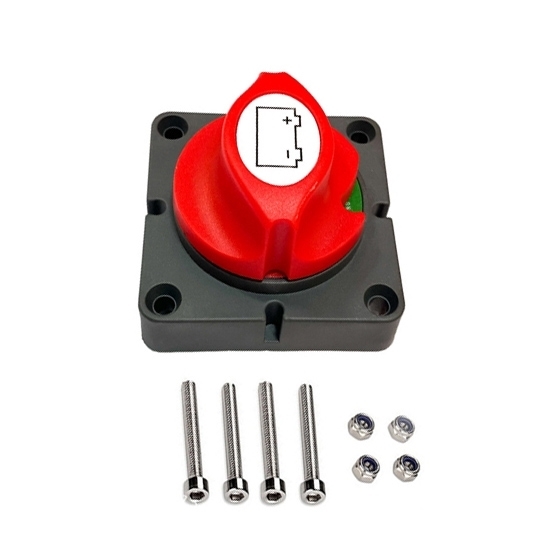

12V Battery Disconnect Switch, Battery Isolator Switch

$53.84

Safety 12V battery disconnect switch can protect the power supply and prevent leakage. high current 300A disconnect switch is suitable for vehicles, cars, marine, trucks, RVs, automobiles, and motorcycles.

SKU: ATO-BIS-A701-PM

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

300A 12V battery disconnect switch for sale online. Red power isolator switch is ideal for protecting the power supply and preventing leakage in vehicles, cars, marine, trucks, RVs, automobiles, and motorcycles.

Specifications

Model: ATO-A701-PM
Product Material: Tinned Brass Screw
Screw Diameter: 10mm
Rated Current: 300A (12V)
Instantaneous Current: 1000A (12V)
Packaging Size: 72x72x100mm
Product Includes: Switch + 4 Sets of Stainless Steel Screws
Application Range: Yachts, Cars, Trucks, etc.
Product Function: Protect Power Supply, Prevent Leakage

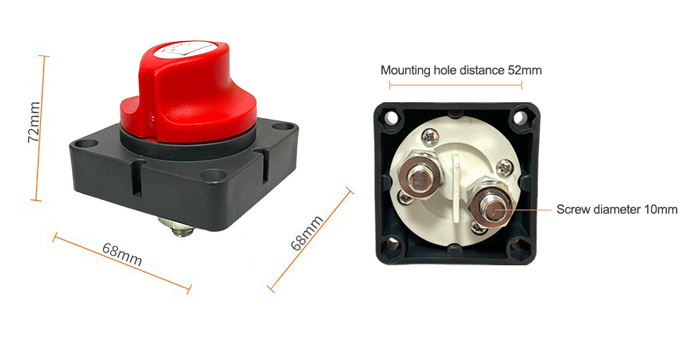

Dimension (Unit: mm)

12v battery disconnect switch

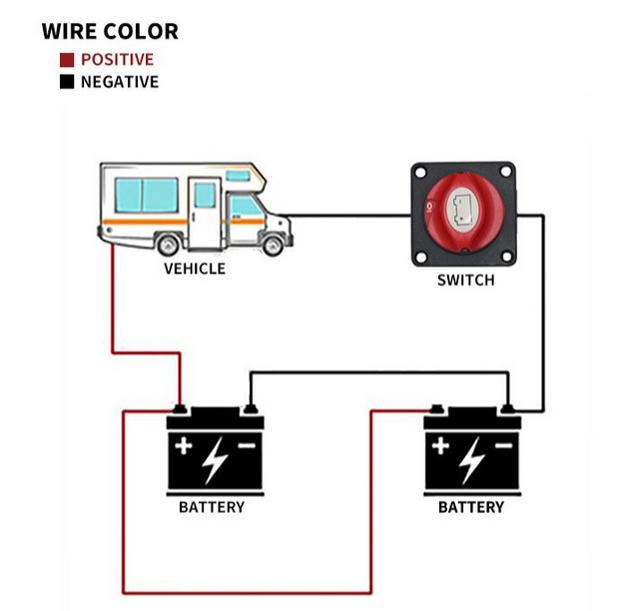

Wiring

12v battery disconnec wiring

Applications

12v battery disconnec applications

Tips: What is a battery disconnect switch?

A battery disconnect switch is a device used to isolate a battery from the electrical system. It allows users to cut off the battery’s power supply, preventing electrical current flow when needed. This can be useful for safety during maintenance, preventing battery drain, or isolating the battery in emergencies. The switch can be manual or automatic and is commonly found in vehicles, boats, and various industrial applications.
