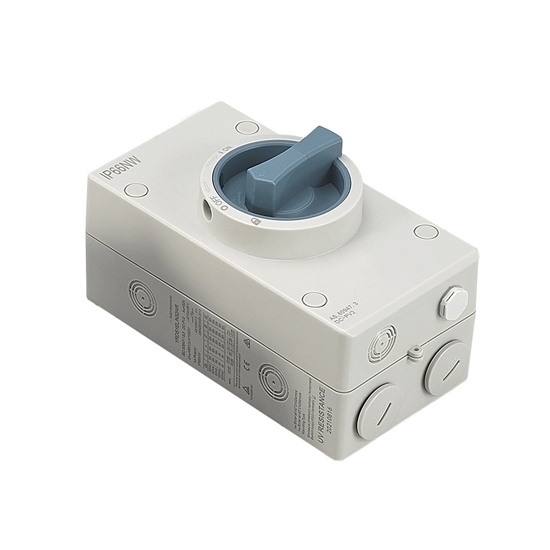

32 amp 1000V DC Isolator Switch for Solar PV, 4 Pole

Write a review

$77.33

4 pole 32A 1000V DC isolator switch is specially designed for solar PV arrays. IP66 waterproof disconnect switch offers CE/TUV/SAA certification, wall-mounted design, and non-flammable flame-retardant housing, dustproof and impact-resistant. 3 various wiring methods are available.

Wiring Method *

SKU: ATO-DCIS-32

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Cost-effective DC isolator switch manufacturer direct sale online. It is a solar PV isolating switch, available with 4 pole, 10A-32A, 1000V to 1200V DC voltage, CE/TUV/SAA certificate, IP66 waterproof level and 3 different wiring methods.

Specifications

Model: ATO-YRDS1EL/S32
Number of Poles: 4 Pole
Rated Voltage: 1000V DC to 1200V DC
Rated Current: 10A-32A
Dimension: 108X101X166mm
Waterproof Grade: IP66
Breaking Capacity: 1000/1700
Certificate: CE/TUV/SAA
Implementation Standard: IEC60947-3
Working Temperature: -25℃--+85℃
Insulation Voltage: DC 1500V
Connection Type: M20 M25
Wiring Modes: No Wiring (Default), Top in and Bottom out Wiring, Bottom in and Bottom out Wiring, Left and Right Wiring

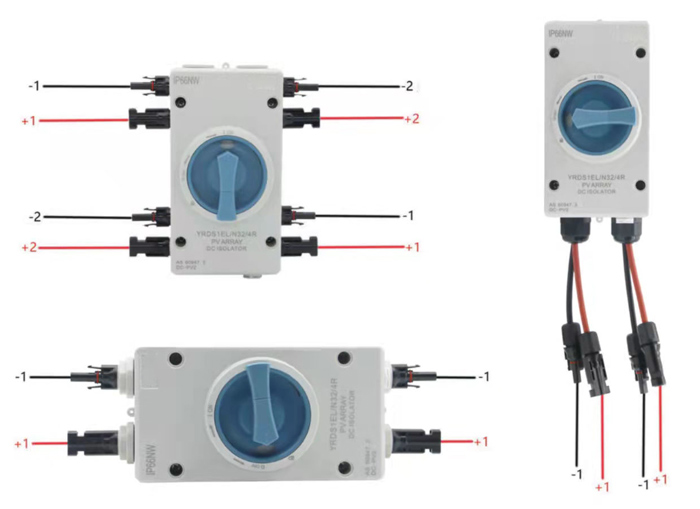

Wiring

Applications

Tips: What is a DC isolator switch?

A DC isolator switch is a device used to disconnect or isolate direct current (DC) electrical circuits. It allows users to safely interrupt the flow of electricity for maintenance, safety, or protection purposes. Typically used in solar power systems, battery storage systems, and other DC applications, the switch ensures safe and reliable operation by providing a clear means to cut off power from the circuit. It often features a robust design with high insulation and breaking capacity to handle the specific demands of DC circuits.

Load Break Switches Explained

Load break switch is a kind of mechanical switching device that can be opened and closed under load. In this video, we have explained what a load break switch is and what they can achieve in electrical applications , and most of all we have detailed the features of load break switches so as to give you a comprehensive understanding of their benefits.
