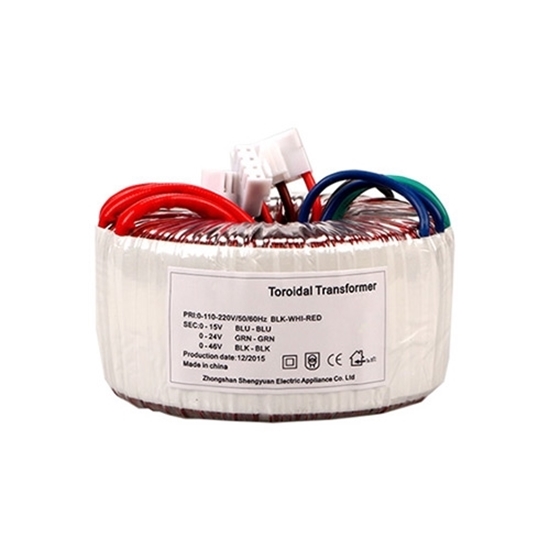

    150VA Toroidal Transformer, 120V AC to 12V/24V/2x30V

    5 out of 5 based on 3 reviews | Write a review
    This single phase toroidal transformer for sales, 150VA (150W) full power, is designed for a primary voltage of 120V AC and dual secondary voltages of 2x30V (30-0-30), one output 12V/24V is optional, all copper winding, manufactured according to CE, RoHS, ISO, UL standard.
    SKU: ATO-T-C150VA
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    ATO 1 phase 30 0 30 toroidal transformer is 150VA capacity, features a single primary winding tapped at 120VAC 50/60Hz and 2x30V dual secondary windings, short circuit and overload protected with thermal fuse on primary side. Twin secondary windings may be connected in series or parallel or used independently.

    Advantages of ATO Toroidal Transformer

    1. High Efficiency: Winding matches core perfectly, which makes the transformer more efficiency.

    2. Long Service Life: With high quality materials and manufacturing technology, the transformer can be used for 30 years.

    3. Less Noise: The core is seamlessly rolled and the winding is set evenly over it, which makes the transformer quiet when it is working.

    4. Less Radiation: Toroidal structure and winding technology reduce electromagnetic radiation.

    5. Low Temperature Rise: Even it is overloaded at 120%, temperature rise will be less than 70℃.

    150VA Toroidal Transformer Specifications

    Model ATO-C150VA
    Phase Single phase
    Power 150VA (150W)
    Primary Voltage 120V AC (Optional: 110V, 120V, 220V, 230V, 240V)
    Secondary Voltage 2x30V (30-0-30) AC (Optional: 12V, 24V, 48V, 110V, 220V, 2x6V, 2x12V, 2x15V, 2x24V, 2x30V, 2x35V, 2x40V, 2x50V, can be customized)
    Secondary Current 2.5A each winding
    No. of Inputs 1 input
    No. of Outputs

    2 outputs, 4 wire (1 output is available)

    Note: For the transformer with 2 outputs 4-wire, each output provides the same voltage and current level, the sum of 2 output power capacities is equal to the total capacity.

    Frequency 50Hz/60Hz
    Winding Material Copper Wire
    Coil Structure Toroidal
    Efficiency 90%-96%
    No-load Loss <2.5W
    Input Wire UL1672-18#Red
    Output Wire UL1015-16#Blue
    Voltage Strength DC2500V
    Insulation Impedance ≥500MΩ
    Cooling Method Natural air cooling
    Temperature +40℃
    Certification CE, RoHS, ISO, UL
    Warranty 12 months
    External Diameter 115mm
    Height 56mm
    Pedestal 120*120mm
    Mounting Hole Distance 110*110mm
    Weight 2.5kg
    Package Included 1*Toroidal transformer + 1*Accesorries sets (Nut, Shim, Metal disk, Rubber gaske, Pedestal, Screw)

    Toroidal Transformer Accessories

    toroidal transformer accessories

    Toroidal Transformer Mounting Methods

    toroidal transformer mounting method

    Toroidal Transformer Internal Structure

    toroidal transformer internal structure


    Tips: What Causes toroidal transformer fault or burn-out?

    1. Overpower use, also known as overload use. When the load connected to the toroidal transformer exceeds rated power, the long-term overload operation may result in overheating of toroidal transformer and further damage it.
    Therefore, users must test the actual power required by the machine when purchasing toroidal transformer, rather than guess how many watts the toroidal transformer should be based on their own ideas. Meanwhile, the margin of toroidal transformer should be taken into full account. Otherwise, it is easy to burn out the annular transformer due to the overpower use.

    2. The voltage connected to the toroidal transformer on the input terminal has exceeded 10% of the rated voltage, and the input voltage is too high for a long time, which causes the burn-out of toroidal transformer.
    For example, the rated voltage of the toroidal transformer is 220V, but users access it to 260V voltage. Since the voltage connected to the toroidal transformer is higher than 10% of its rated power, it will cause the primary coil of the transformer to heat too fast, which will shorten its service life and cause damage to it.

    3. Artificial damage.
    As a fragile article, the toroidal transformer is very easy to break actually, such as bumping into it accidently during installation and use, falling off the table, being pressed by heavy object and so on, which may lead to scratching or breaking of all copper wires inside the toroidal transformer, thus resulting in failure or burnout.
