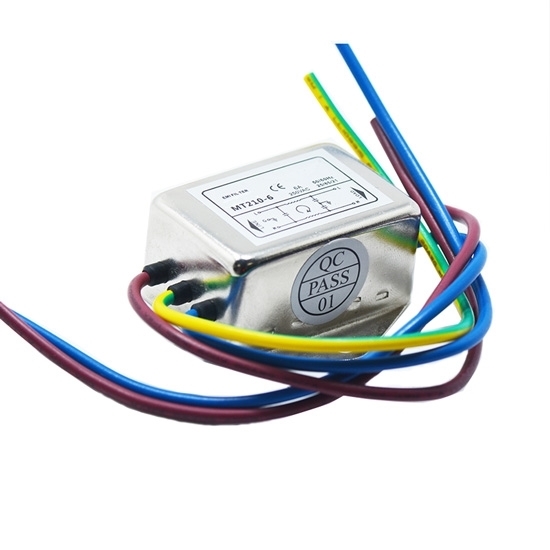

    1A EMI Power Line Filter

    $57.85
    1A EMI power line filter features single phase single stage with rated voltage 250V AC, and general purpose line filter can suppress the electromagnetic one line to line and line to ground effectively.
    SKU: ATO-YB11E1-1A
    *
    Free shipping
    Delivery date: 6-12 days

    EMI power line filter, single-phase single-stage, rated current 1A and rated voltage 250V AC, is designed for commonly use in line filtering or noise filtering of switching power supply, UPS, information technology equipment, measuring instruments, display, industrial computer, controller and other equipment.

    1A 1 Phase Filter Specification

    Model ATO-YB11E1-1A
    Filter Type EMI
    Phase Single Phase
    Rated Current @ 40℃ 1A
    Rated Voltage 115/250V AC
    Operating Frequency 50/60Hz
    Leakage Current ≤0.8mA @ 250V AC 50Hz
    Hipot Rating (one minute) Line to Line 1450V DC
    Line to Ground 2250V DC or 2000V DC
    Climatic Category 25/085/21
    Working Tempearte -25°C~+85°C
    Output Termainal (Optional) Solder Lug (Q) or Wire (W)
    Dimension See below

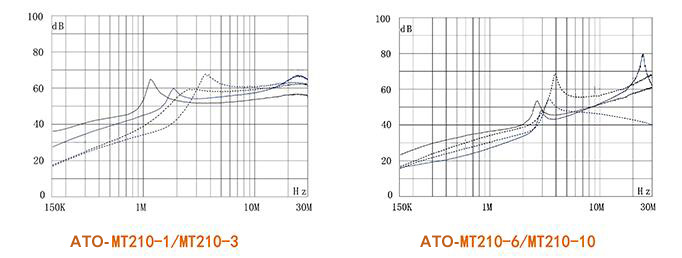

    Insertion Loss Table (in 50Ω system acccording to IEC/CISPR No.17)

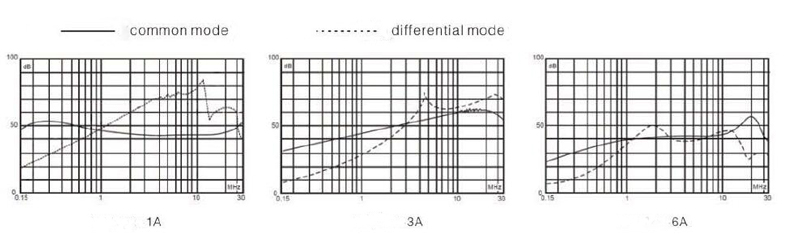

    1 phase EMI filter insertion loss

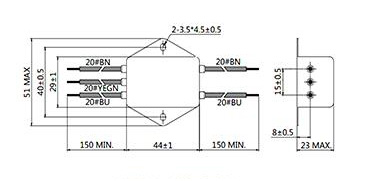

    Dimensions (1-phase filter with solder lug terminal)

    1A-6A single phase EMI filter dimension

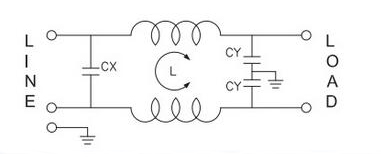

    Electrical Schematic

    1A-6A 1-phase EMI line filter electrical schematic

    Tips: What is power line filter?
    Power line filter is electrical equipment which effectively filters particular frequency point in the power line or the frequency out of the particular frequency point. Power line filter performance is to get a certain frequency power supply signal or power supply signal after eliminating a certain frequency through connecting power supply filter in power line. Based on this performance of power line filter, a square wave group or compound noise wave could be converted into a certain frequency sine wave through power line filter.
    Power supply filter is a passive bi-directional network, that is, one end is power supply, and the other end is load. Power supply filter principle is a impedance adaption network: the larger the impedance mismatching is (between “power filter input&output” and “power & load” side), the more effective the attenuation of electrical magneto interference is.
