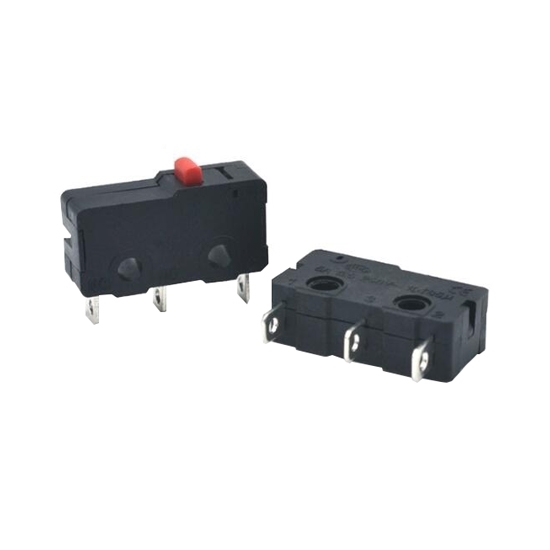

3 Pin Limit Micro Switch, 3A, 125V/250V

The 3 pin limit micro switch is easy to install and can be easily integrated into existing systems. The limit micro switch is rated at 3A, 125V/250V AC. Highly accurate limit micro switch offers excellent value for money and is a popular choice for companies looking to reduce costs.

Specification

• Model: ATO-MS-02
• Rating: 3A 125/250VAC
• Contact Resistance: 500mΩ Max
• Insulation Resistance: >100MQ DC500V
• Withstand Voltage: AC 1500V, 1min
• Soldering Temperature: 235±5°C, 5s
• Mechanical Life: 1000,000 Cycles
• Electrical Life: Ambient Temperure: -25°C to +105°C
• Ambient Humidity:<85% at +40°C
• Operating Force: 60-100gf max
• Contact Type: 1NC+1NO

Features

• 3 Pin limit micro switches are typically very small and compact, making them easy to install in tight spaces.
• Limit micro switches require very little force to activate, which makes them ideal for use in applications where a light touch is required.
• Snap action switches are designed to be very precise and accurate, ensuring that they activate only when the intended motion or object comes into contact with them.
• Micro switches require very little force to activate, which makes them ideal for use in applications where a light touch is required.

Dimension (Unit mm)

Details

Applications

Micro switches, also known as snap-action switches, are a kind of small low force switches. Micro switches have a wide range of applications including industrial machinery, appliances, automotive systems, etc. Microswitches are compatible with a wide variety of voltages and currents, making them a flexible and versatile choice for many different applications.

Tips: What are the types of micro switches?

Micro switches are commonly used in various electronic devices and industrial applications. There are different types of micro switches available, including:

• Basic Micro Switch: This type of micro switch has a simple design and is commonly used in home appliances, electronic gadgets, and other low current applications.
• Subminiature Micro Switch: This type of micro switch is smaller in size than basic micro switches and is suitable for applications where space is limited.
• Sealed Micro Switch: This type of micro switch has a sealed construction that protects it from dirt, dust, and other contaminants. Sealed micro switches are commonly used in harsh environments.
• Double-Pole Micro Switch: This type of micro switch has two sets of contacts, which make it suitable for applications that require higher current or voltage ratings.
• Snap-Action Micro Switch: This type of micro switch has a mechanism that ensures a quick and reliable switching action. Snap-action micro switches are commonly used in safety devices and other applications where speed and accuracy are important.
• Limit Switch: This type of micro switch is commonly used in industrial applications to detect the presence or absence of an object. Limit switches are often used in conveyor systems, machine tools, and other automated equipment.
• Roller Lever Micro Switch: This type of micro switch has a roller lever that enables it to detect changes in position or movement. Roller lever micro switches are commonly used in automation and control applications.
