    40 kVA 3 Phase Variac Transformer

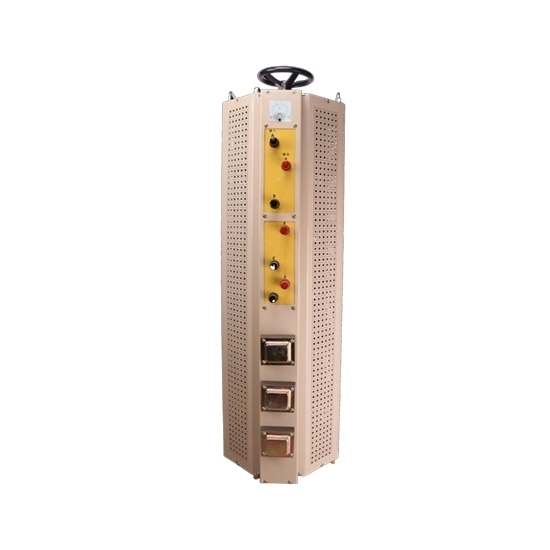

    40 kVA 3 Phase Variac Transformer

    5 out of 5 based on 4 reviews | Write a review
    $3,989.59
    Three phase variac transformer rated power 40 kVA, 52 Amp, input voltage 380V, with the functions of voltage regulation, the built-in copper wires of the variable transformer are densely arranged, and the painted shell has a long service life.
    *
    SKU: ATO-VVR-TH40
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    The intelligent 3 phase variac transformer is sold at low price, the input and output voltage is 380V, the voltage is adjusted from 0 to high when used, and the output voltage is 0-430V or 0-500V.

    Specification

    • Model: ATO-VVR-TH40
    • Rated Power: 40 kVA
    • Input Voltage: 380V
    • Output Voltage: 0~430V, 0~500V
    • Frequency: 50/60 Hz
    • Rated Full Offset Current: 52A
    • Insulation Resistance: ≥5 MΩ
    • Pressure Resistance: 2000 V/1min
    • Weight: 160 kg
    • Dimension: 345mm x 450mm x 1100mm
    • Certificate: CE

    Wiring method

    Installation and use of three-phase variac transformer should be noted: the wiring must be firmly pressed, there can be no loose.

    Three-phase variac transformer is a three-phase four-wire system, the input side should be connected to the zero line, when using the regulator to adjust the voltage should be adjusted from 0V to high voltage, the output voltage is different corresponding to the load power is different.

    Variac transformer wiring

    3 Phase 40 kVA Variac Voltage Regulator Details

    Three phase variable transformer details

    Three phase variac transformer detail

    Tips: Classification of voltage regulators

    Voltage regulators are divided into five types: auto-coupling regulators, isolation regulators, oil-immersed induction regulators, column-type electric regulators and thyristor regulators. The working mode of the pressure regulator is divided into manual pressure regulation and electric pressure regulation.

    Existing reviews of 40 kVA 3 Phase Variac Transformer
    Is there a list of transformers that work with an input of 480V on website?
    Thank you for clarifying.
    Is there a list of available variac transformers that work with an input of 480V on your website?
    From: carson | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we did not update the 480v input voltage on the website, because it needs to be customized.
    For parameters, please refer to this 3-phase variac transformer of 380V website.
    Only the voltage has changed in the parameters.
    Which input voltage can transformer work with?
    Thank you for confirming.
    And does it work with an input voltage of 380V and 480V?
    From: zeki | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    It works with an input voltage of 380V.
    Can you confirm that the ratings given are for 50 and 60Hz transformer?
    Can you confirm that the ratings given are for 50 and 60Hz?
    From: cloe | Date: 25/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, frequency 50Hz and 60Hz are both ok.
    A datasheet for variac transformer
    Do you have a datasheet for ATO-VVR-TH40?
    Specifically, I am looking for confirmation that the unit can output 500 VAC at 50 Hz.
    From: jorel | Date: 20/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Unfortunately, we do not provide the datasheet you mentioned, you can refer to our website for the specific parameters of the transformer: https://www.ato.com/40-kva-3-phase-variac-transformer
