80 amp 3/4 Pole DC Coil Contactor, 12V/24V/48V/220V Coil

5 out of 5 based on 1 reviews | Write a review

$136.29

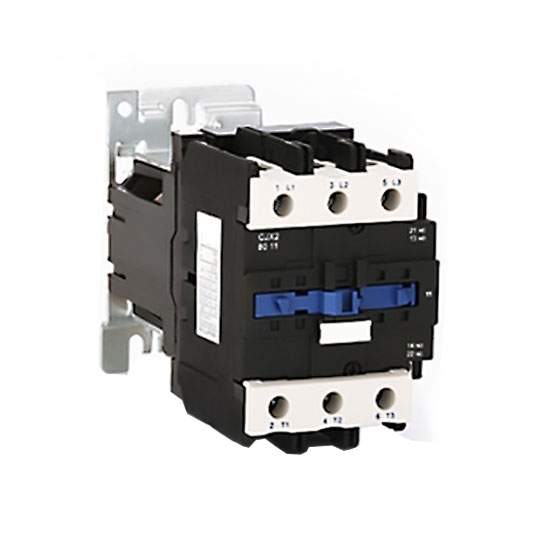

12V ~ 220V 80A AC contactor with DC control works to connect and break of the circuit load, It is designed for DC adjustable speed drive circuits which require a combination contacts of normally open and normally closed. 3 pole (3NO) or 4 pole (2NO+2NC) contact form available, high performance and low price.

Contact Form *
Auxiliary Contact *
Auxiliary Contact *
Auxiliary Contact *
Coil Rated Voltage *

SKU: ATO-DCCON-80A

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Cost-effectively DC contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

Specification

Model		ATO-CJX2-80Z	ATO-CJX2-80008Z
Rated Current		80A AC
Coil Rated Voltage (Optional)		12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
Contact Form (Optional)		3 Pole (3NO)+1NO+1NC	4 Pole (2NO+2NC)
Frequency		50Hz/ 60Hz AC
Rated Power (AC-3)	200-240V	22kW (30HP)
	380-440V	37kW (50HP)
	500-550V	45kW (60HP)
	600-690V	45kW (60HP)
Conventional Thermal Current		110A
Operating Temperature		-40℃~85℃
Operating Humidity		5~95% RH
Dimensions		87 x 129 x 182mm	96 x 129 x 196mm
Weight		1.75kg

Circuits Diagram

80 amp DC Contactor Circuit Diagram

Details

Tips: DC contactor Applications

The DC contactor adopts a modular design, which can assemble the number of contacts required by the customer and the contact form (normally open, normally closed and conversion) required by the customer with the least parts. It has a high contact breaking voltage, and adopts horizontal blowing magnetic field to extinguish the arc, and the highest breaking voltage can reach 220VDC. This DC contactor is suitable for program-controlled power supply or uninterruptible power supply system, forklift, electric vehicle, engineering machinery system.
