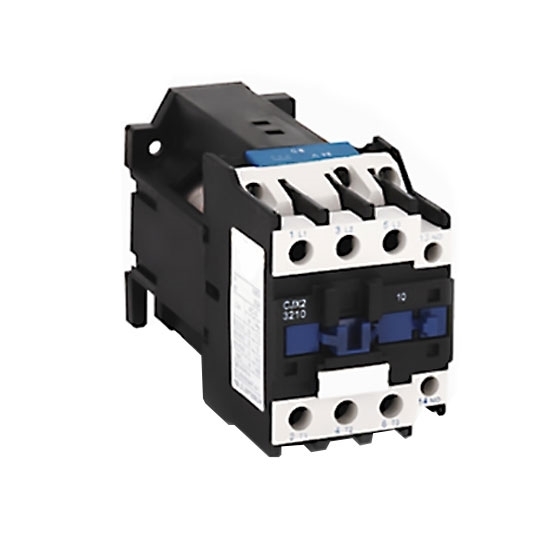

    32 amp 3/4 Pole DC Contactor, 12V/24V/48V/220V Coil

    5 out of 5 based on 1 reviews | Write a review
    $59.99
    12V 24V 48V 220V DC contactor works to connect and break of the circuit load, which can fully meet the special demand of electric locomotive, diesel locomotive and electric motor car group. 3 pole (3NO) or 4 pole (2NO+2NC) contact form, 32 amp, high performance and low price.
    SKU: ATO-DCCON-32A
    *
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

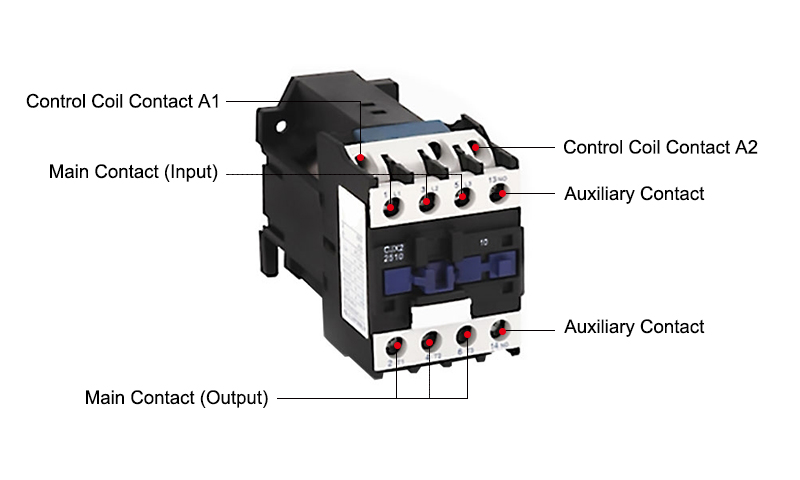

    32 amp DC Contactor is an electrical controlled switch to connect and break of the circuit load, which is widely used in the control system of DC electric control, storage battery circuit and capacitance circuit.

    Specification

    Model ATO-CJX2-32Z ATO-CJX2-32008Z
    Rated Current 32A
    Coil Rated Voltage (Optional) 12V DC, 24V DC, 36V DC, 48V DC, 110V DC, 220V DC
    Contact Form (Optional) 3 Pole (3NO)+1NO+1NC 4 Pole (2NO+2NC)
    Frequency 50Hz/ 60Hz
    Rated Power (AC-3) 200-240V 7.5kW (10HP)
    380-440V 15kW (20HP)
    500-550V 18.5kW (25HP)
    600-690V 18.5kW (25HP)
    Conventional Thermal Current 50A
    Operating Temperature -40℃~85℃
    Operating Humidity 5~95% RH
    Dimensions 57 x 86 x 136mm 57 x 86 x 138mm
    Weight 0.75kg

    Circuits Diagram

    Circuit Diagram of 32 amp DC Contactor

    Tips: Working principle of DC contactor

    When the DC contactor coil is energized, the coil current generates a magnetic field, which causes the static iron core to generate electromagnetic attraction to attract the moving iron core and drive the contact action: the normally closed contact is disconnected, and the normally open contact is closed. The two are linked. When the coil is de-energized, the electromagnetic attraction force disappears, and the armature is released under the action of the release spring to restore the contacts: the normally open contact is disconnected, and the normally closed contact is closed.

    Existing reviews of 32 amp 3/4 Pole DC Contactor, 12V/24V/48V/220V Coil
    DC contactor of reliable quality
    I bought it for the pumping station to control the water pump. Great DC Contactor with fine workmanship and solid structure. The installation is easy. Very useful electrical accessories of reliable quality.
    From: Daniel | Date: 07/05/2022
    Was this review helpful? Yes No (0/0)
