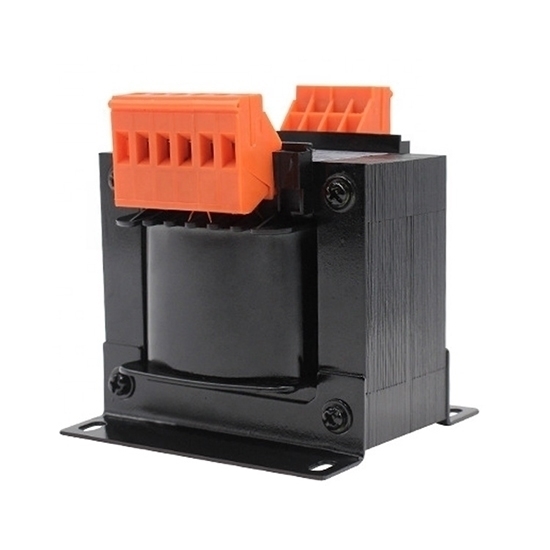

8000VA Control Transformer, 240V to 110/24V

5 out of 5 based on 1 reviews | Write a review
$1,521.54
8kVA 1 phase industrial control transformer with affordable price, is suitable for circuit of AC 50/60Hz and step down 240V input voltage to 110/24V dual output voltage, fully electric isolation between primary side and secondary sides, H class enameled wired ensure long service life.
*
*
*
SKU: ATO-T-BK8000VA
30-day Returns
Delivery date: 6-12 days

Control and lighting purposed miniature dry type air automatic mode transformer has 8000VA power rating, 1-phase, and converting the 240V primary voltages to 110/24V secondary voltage. It has the advantages of excellent performance, reliable operation, wide application, etc.

Specifications

Product Name Single phase control transformer
Product Model ATOBK-8000VA
Winding Material* Enameled copper wire or enameled aluminum wire (Optional)
Total Output Capacity 8000VA
Note: (If your output includes multiple voltage levels, please email us with the capacity of each output. The total capacity should be the sum of all individual outputs. For example, if your outputs are aV and bV, then aV (capacity) + bV (capacity) = 8000VA).
Primary Voltage* (VAC) 110, 120, 208, 220, 230, 240, 380, 400, 480, 110/220, 120/240, 240/480...(Optional and Customized)
Secondary Voltage* (VAC) 6, 12, 24, 36, 48, 110/48, 120/24, 208/36, 220/48, 230/36, 240/120, 120/24/12, 110/36/24, 127/36/6, 208/48/36/24...(Optional and Customized)
Frequency 50 / 60Hz
Insulation Level F / H
Withstand Voltage Test Primary to secondary 2.5KV/min
Primary to safety ground 2.5KV/min
Secondary to safety ground 1.5KV/min
Insulation Resistance Primary to secondary 2500V>100 megohm
Primary to safety ground 2500V>100 megohm
Secondary to safety ground 1500V>100 megohm
Induction Withstand Voltage Test 125Hz/ 800V/min
Ground Resistance 25A<80 milliohm
Cooling Method Natural or air cooling
Transformation Ratio <3%
Air Carrying Current <6%
Impedance Voltage about 6%
Total Losses 0.1
Efficiency 80%~99%
Operating Temperature -25℃~40℃ (40℃, 93% RH, 56 days)
Storage Temperature -25℃~100℃ (40℃, 93% RH, 56 days)
Certificate CE, ISO
Warranty 12 months
Size Overall size: 240*220*230mm, Hold distance for installation: 180*200mm, Installation hold: 20*10mm
Weight 70kg

Schematic diagram illustration

Control transformer schematic diagram illustration

 Control transformer dimension

Control transformer dimension

Overall size (mm) Hole distance for installation (mm) Installation hole (mm)
B E D A C K x J
240 220 230 180 200 20 x 10

Tips: What are the essential safety requirements for control transformers?

1. Temperature rise

The temperature rise of the control transformer has a direct impact on its safe use. When the insulation of the transformer is class E, the temperature rise should be lower than 75K. The temperature rise of iron core transformer should be controlled within 55K.

2. Insulation resistance

The size of the insulation resistance is directly related to the safety performance of the control transformer. Generally, the insulation resistance of the transformer should be greater than 10 mΩ in cold state, and its insulation pad should be greater than 2 mΩ when the transformer is in hot state for a period of time.

3. Insulation strength

In order to ensure the safe and stable operation of the transformer, it must also have a large insulation strength. Generally, we require that it can withstand the withstand voltage test of 2000V, 50 Hz sinusoidal AC voltage and pass the test, that is to say, when the withstand voltage is reached for one minute, there will be no flashover or breakdown.

4. Leakage current

If the leakage current of the transformer is too large, it may affect other electronic components, so we generally require that the leakage current of the control transformer should be less than 3mA.

5. Grounding is essential

In the safe use and requirements of the whole control transformer, grounding is the most easy to be forgotten. Only when we properly ground the transformer can we ensure that the electrical equipment will not be damaged in case of short circuit, leakage, etc. Generally, we have equipped the special grounding terminal for the transformer product and marked the obvious grounding mark on it.
