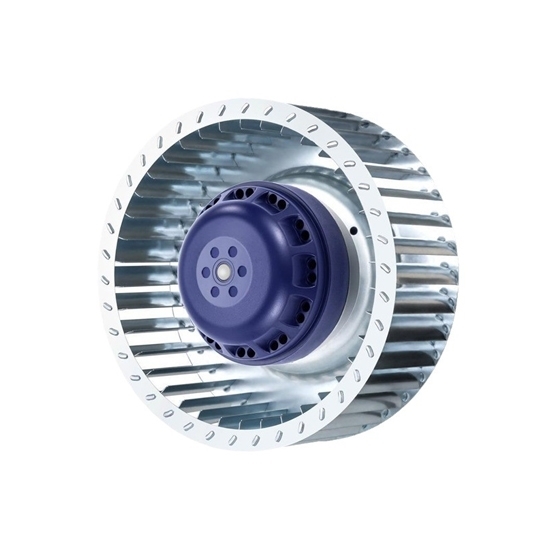

AC Forward Curved Centrifugal Fan, 160mm, 230V

ATO forward curved centrifugal fan with 160mm impeller features a wheel with numerous small blades that curve forward in the direction of rotation. Its design aids in maintaining lower noise levels, making it suitable for both commercial and residential applications.

Specification

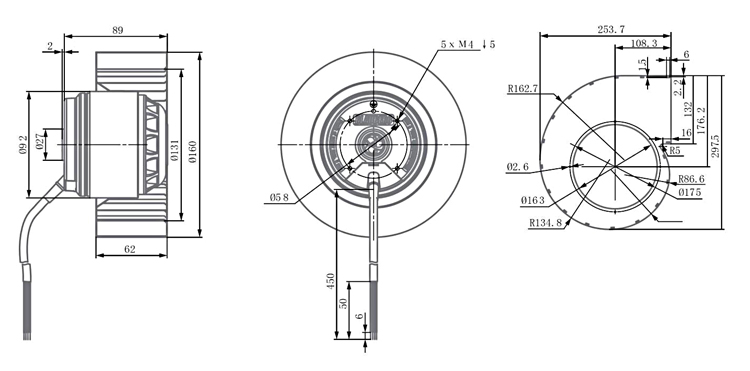

Dimension (Unit: mm)

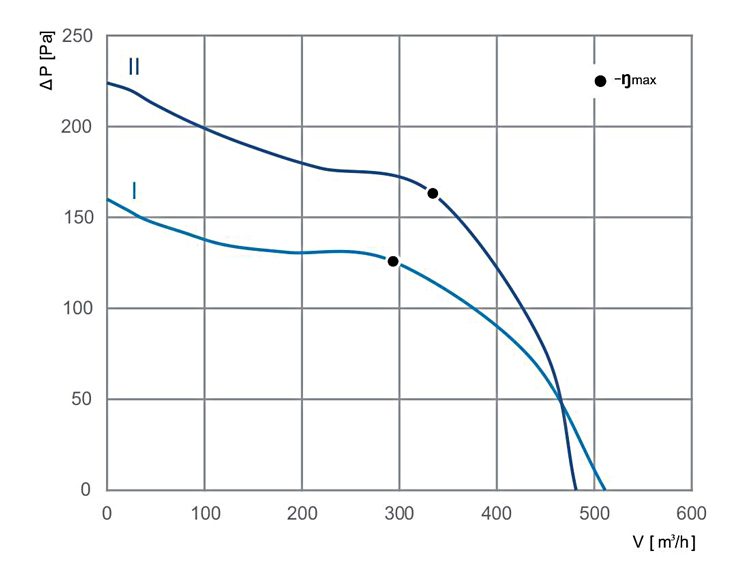

Performance Curve

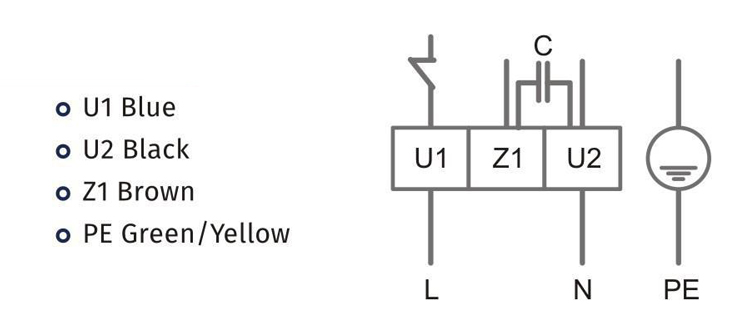

Wiring

Detail

Tips: What is an AC forward curved centrifugal fan?

An AC forward curved centrifugal fan is a type of fan used in various industrial and HVAC applications. It features a rotor with blades that curve forward in the direction of rotation, which helps to increase airflow efficiency. Powered by an alternating current (AC) motor, this fan design is known for its compact size and high air volume output relative to its size. The forward curved blades are particularly effective in delivering a high volume of air at low to moderate static pressures. This makes them ideal for applications such as air handling units, ventilation systems, and small-scale cooling systems. They are often used in situations where space is limited and quiet operation is important. However, they are less effective in high-pressure applications compared to backward inclined fans.
