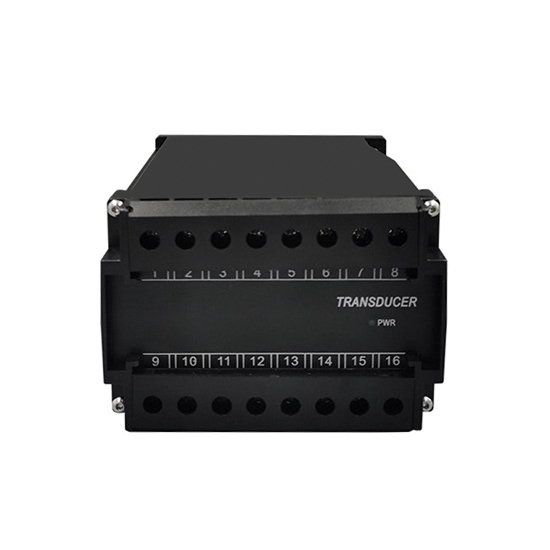

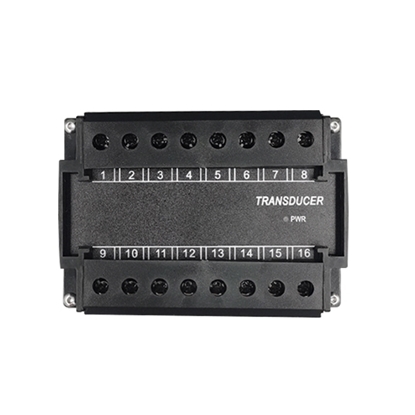

Active and Reactive Combined Transducer, 3 Phase 3 Wire/ 3 Phase 4 Wire

Write a review

$243.23

Active and reactive combined transducer for sale at a low price. The measurement of the active and reactive combined transducer is 3-phase 3-wire or 3-phase 4-wire. The active and reactive combined transducer has high accuracy and sensitive response, with an accuracy of 0.2/0.5 and a response time of less than 400ms.

Measurement *
Accuracy *
Input Signal *
Output Channel *
Output Signal *
Transducer Power *

SKU: ATO-PT-PQ3

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The active and reactive combined transducer is an integrated measurement device that can monitor the active and reactive power in the power system at the same time and provide comprehensive power parameter data. The active and reactive combined transducer can reduce the installation space and wiring complexity, and reduce the cost of multi-sensor deployment. The active and reactive combined transducer is calculated based on the voltage and current signals at the same time to avoid errors caused by time differences.

Specification

Model	ATO-PT-HDB-PQ3
Measurement	3phase 3wire or 3phase 4wire (optional)
Input	AC Voltage: 57.7V, 100V, 220V, 380V, 450V, 660V, customization AC Current: 1A, 5A, 10A, 20A, customization (optional)
Input Load	CT of voltage transformer: ≤0.1VA CT of current transformer: ≤0.2VA
Allow Overload	Voltage × 2 times the nominal value continuous Current × 2 times the nominal value continuous Current × 10 times the nominal value for 10s
Accuracy	0.2, 0.5 (optional)
Response Time	≤400ms
Output Channel	1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage	0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current	0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output	RS485, customization
Output Ripple	≤0.5% RO peak
Work Environment Temperature and humidity	0~50℃/less than 80% relative humidity (non-condensing state)
Storage conditions temperature and Humidity	-20~70℃/less than 70% relative humidity (non-condensing state)
Aux.power Supply	DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 650 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimensions	120（L）× 110（W）× 75（H）mm
Installation Method	35mm standard rail or fixed on the cabinet

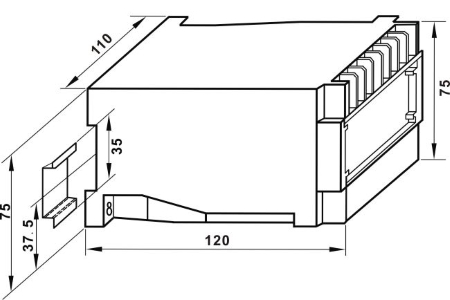

Dimension (Unit: mm)

Calibration Fine Tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

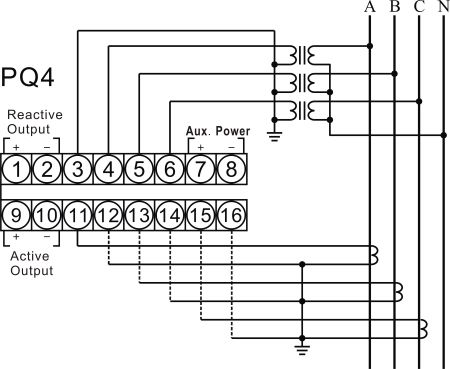

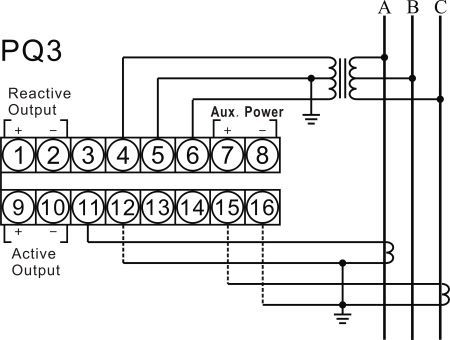

Wiring

Tips: Advantages of active and reactive combined power transducer

Save space and cost: Measure active and reactive power simultaneously with a single device, reducing the need to install multiple independent transducers, hardware costs and wiring complexity. Suitable for scenarios with limited space (such as distribution cabinets, and compact equipment).
High data synchronization: Calculate active and reactive power based on voltage and current signals at the same time point, avoiding data asynchrony caused by the sampling time difference of split sensors.
Easy maintenance: Only a single device needs to be calibrated, reducing the workload of calibrating split transducers one by one. The centralized design facilitates monitoring and diagnosis, reducing maintenance difficulty.
