Frequency Power Transducer, 40~60Hz/45~55Hz/55~65Hz/0~100Hz

Write a review

$175.54

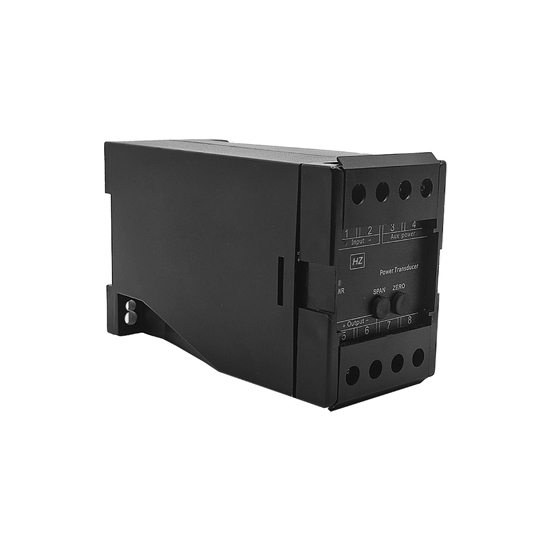

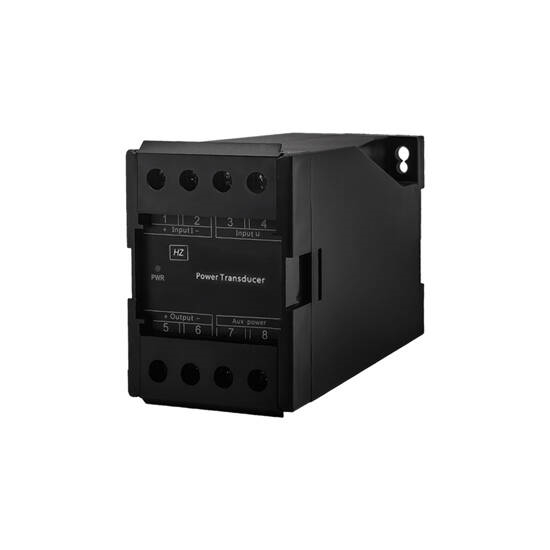

Reliable frequency power transducer, the range is 40~60Hz/45~55Hz/55~65Hz/0~100Hz. The working environment temperature of the frequency power transducer is 0~50℃, the working environment humidity is <80% relative humidity, and the compressive strength is AC2Kvrms/min. It has a wide range of applications and is durable.

Range *
Accuracy *

SKU: ATO-PT-F

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The output voltage of the frequency power transducer is 0~10Vdc, 0~5Vdc. The output current of the frequency power is 0~20mADC, 4~20mADC. The output ripple is ≤ 0.5% RO peak. The shell material of the frequency power transducer is ABS fireproof material, and the compressive strength is AC2Kvrms/min. It is installed using a 35mm standard rail or fixed on a cabinet.

Specification

Model	ATO-PT-HDB-F
Range	40~60Hz, 45~55Hz, 55~65Hz, 0~100Hz (optional)
Allow Overload	Voltage×1.2 times the nominal value lasts
Accuracy	0.2%, 0.5% (optional)
Response Time	≤400ms
Output Voltage	0~10VDC, 0~5VDC (load resistance = input voltage/10mADC)
Output Current	0~20mADC, 4~20mADC (Load resistance=10VDC/output current)
Output Ripple	≤0.5% RO peak
Work Environment Temperature and Humidity	0~50℃/less than 80% relative humidity (no condensing)
Storage Conditions Temperature and Humidity	-20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply	AC/DC 80V~270V, please contact us for special specifications
Isolation	Input/output/power supply/shell
Power Consumption	DC about 3W, AC about 4VA
Material of Shell	ABS fireproof material
Weight	About 300 grams
Compressive Strength	AC2kVrms/min
Insulation Resistance	>100MΩ at DC500V
Dimension	120 (L) × 55 (W) × 75 (H) mm
Installation Method	35mm standard guide rail or fixed on the cabinet

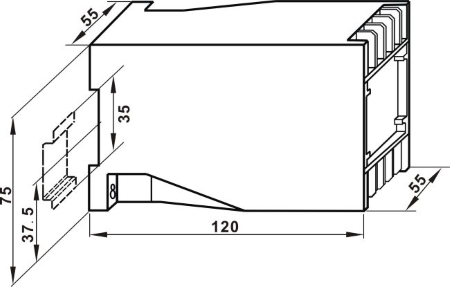

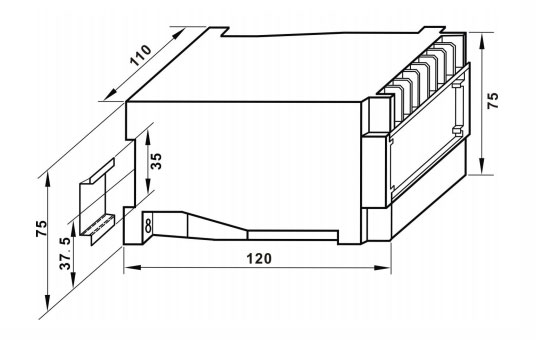

Dimension (Unit: mm)

Dimension of frequency power transducer

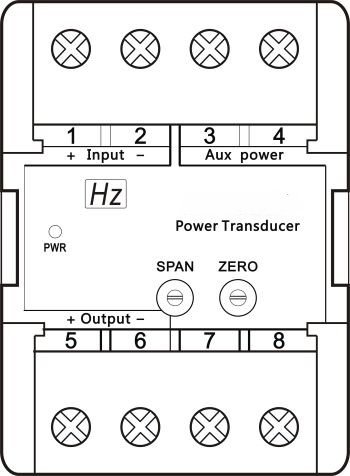

Calibration Fine Tuning

Frequency power transducer calibration fine tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

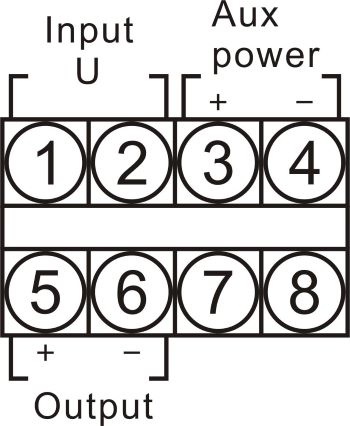

Wiring

Tips: How to choose the right power transducer?

Determine the type of power to be measured: Select a transducer that is compatible with the type of power in your system, and make sure the sensor matches your electrical system configuration.
Determine electrical parameters: Select a transducer with voltage input that matches your system (e.g., 0-100V, 0-600V, etc.), and choose a model that supports the expected current load, either directly or through a current transformer (CT).
Consider accuracy and response time: High accuracy is critical for precise power monitoring in industrial and commercial applications. Fast response time is critical for dynamic load monitoring.
Environmental and mounting considerations: Mounting types include DIN rail, panel, or enclosure mounting. Make sure the operating temperature and humidity of the power transducer selected can withstand the environmental conditions.

Write your review for Frequency Power Transducer, 40~60Hz/45~55Hz/55~65Hz/0~100Hz
