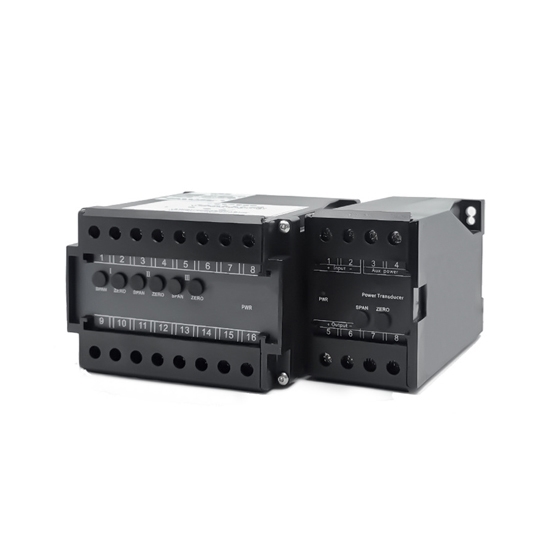

DC Current Transducer, 0-1A/5A/10A/75mV

$175.54
Buy a low price DC current transducer, DC 0-1A/0-5A/0-10A/75mV current input can be selected, with an accuracy of up to 0.2/0.5, and a response time of ≤400ms. The DC current transducer is reliable and durable, with a long life, providing accurate detection for the power system.
*
*
*
*
*
SKU: ATO-PT-DA
30-day Returns
Free Shipping
Delivery date: 6-12 days

The DC current transducer has low energy consumption and strong durability. It consumes about 3W in DC and about 4VA in AC. The compressive strength is AC2kVrms/min. The DC current transducer is small in size and easy to install. It is installed with 35mm standard rails or base screws and is suitable for different situations.

Specification

Model ATO-PT-HDB-DA
DC Input 0-1A 0-5A, 0-10A, 75mV, customization (optional)
Input Load CT of current transformer: ≤0.2VA
Allow Overload Current×2 times the nominal value lasts
Current×10 times the nominal value 10s
Accuracy 0.2, 0.5 (optional)
Response Time ≤400ms
Output Channel 1 channel, 2 channels, 3 channels (optional)
Output Voltage 0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current 0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output RS485, customization
Output Ripple ≤0.5% RO Peak-to-peak value
Work Environment Temperature and Humidity 0~50℃/less than 80% relative humidity (non-condensing state)
Storage Conditions Temperature and Humidity -20~70℃/less than 70% relative humidity (non-condensing state)
Aux.power Supply DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation Input/output/power supply/shell
Power Consumption DC about 3W, AC about 4VA
Material of Shell ABS fireproof material
Weight About 300 grams
Compressive Strength AC2kVrms/min
Insulation Resistance >100MΩ at DC500V
Dimension 55(W)× 75(H)×120(L) mm
Installation Method 35mm standard rail, base screw installation

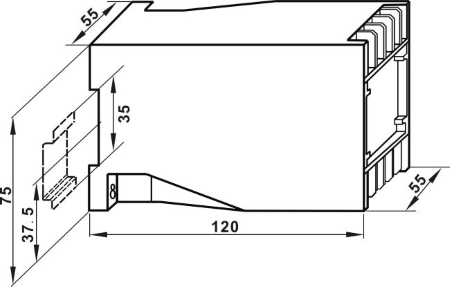

Dimension (Unit: mm)

Dimension of DC current power transducer

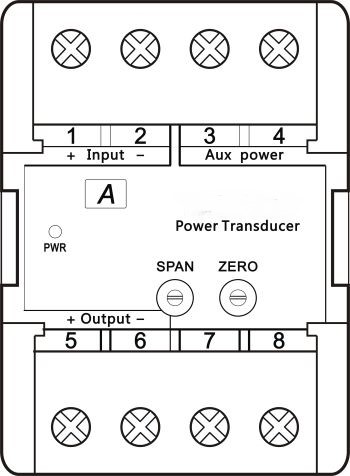

Calibration Fine Tuning



DC current power transducer calibration fine tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

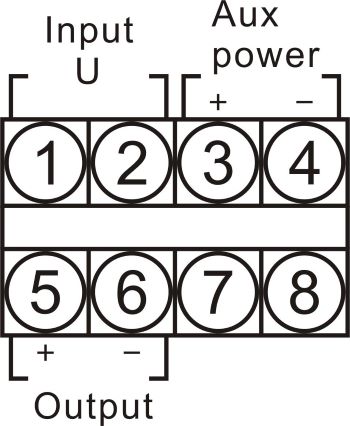

Wiring

DC current power transducer wiring

Tips: Types of power transducers

Power transducers are classified into different types based on the electrical parameters they measure and their applications. The following are the main types of power transducers:

  • Based on power type: AC power transducers measure active power (kW), reactive power (kVAR), or apparent power (kVA) in AC electrical systems. They are used in industrial automation, power distribution, and energy monitoring. DC power transducers measure power in DC circuits, such as solar systems, battery monitoring, and electric vehicles, and are commonly used in applications such as telecommunications and railway traction systems.
  • Based on measurement parameters: Active power transducers measure active power in AC or DC circuits for energy monitoring and efficiency analysis. Reactive power transducers measure reactive power in AC circuits for power factor correction and reactive power compensation. Frequency transducers convert frequency changes into analog or digital outputs for generator monitoring and frequency stability applications.
  • Based on connection configuration: Single-phase power transducers are used in residential and small commercial applications to measure voltage, current, and power on a single-phase load. Three-phase power transducers are used in industrial and large distribution systems.
