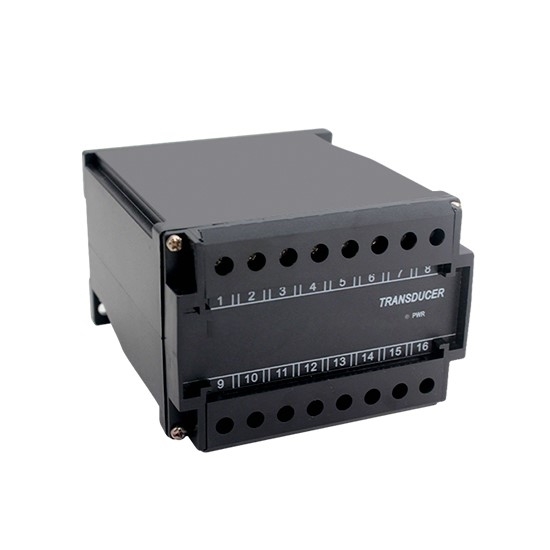

3-phase AC Voltage Transducer, 0~120V/300V/450V/600V

$237.08
Factory price 3-phase AC voltage transducer for sale online. The response time of the three-phase AC voltage transducer is less than 400ms. It supports 0-120V/0-300V/0-450V/0-600V AC voltage input, and provides 0-1mA/0-10mA/0-20mA/4-20mA/0-10V/0-5V/1-5V output.
*
*
*
*
*
SKU: ATO-PT-V3
30-day Returns
Free Shipping
Delivery date: 6-12 days

The 3-phase AC voltage transducer is sold at a low price, with an accuracy of 0.2/0.5, a response time of less than 400ms, and an output ripple of ≤0.5% RO peak. The three-phase AC voltage transducer is designed for different environments, and the storage conditions are a temperature of -20~70℃ and a relative humidity of less than 70%.

Specification

Model ATO-PT-HDB-V3
AC Voltage Input 0-120V,0-300V,0-450V,0-600V, customization (optional)
Input Load Voltage transformer PT: ≤0.1VA
Allow Overload Voltage×1.2 times the nominal value lasts
Accuracy Average measurement, 0.5
True RMS measurement, 0.5
Average measurement, 0.2
True RMS measurement, 0.2 (optional)
Response Time ≤400ms
Output Channel 1 channel, 2 channels, 3 channels, 4 channels (optional)
Output Voltage 0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current 0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output RS485, customization
Output Ripple ≤0.5% RO peak
Work Environment Temperature and Humidity 0~50℃/less than 80% relative humidity (no condensing)
Storage Conditions Temperature and Humidity -20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation Input/output/power supply/shell
Power Consumption DC about 3W, AC about 4VA
Material of Shell ABS fireproof material
Weight About 450 grams
Compressive Strength AC2kVrms/min
Insulation Resistance >100MΩ at DC500V
Dimensions 120(L)×  110(W)× 75(H)mm
Installation Method 35mm standard guide rail or fixed on the cabinet


Dimension (Unit: mm)

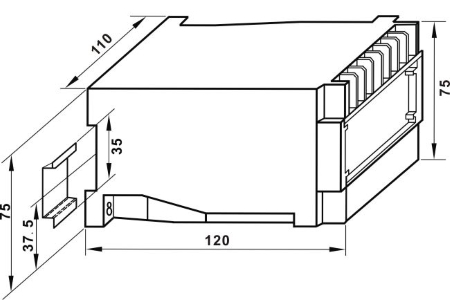

Dimension of 3 phase AC voltage power transducer

Calibration Fine Tuning

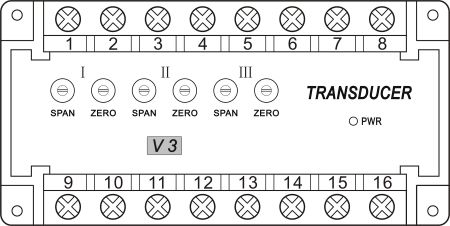

3 phase AC voltage power transducer calibration fine tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

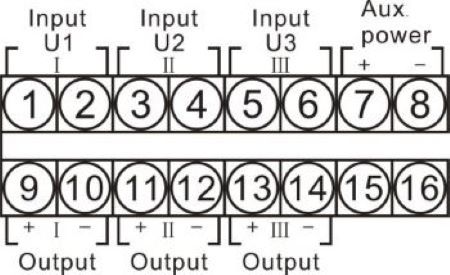

3 phase AC voltage power transducer wiring

Tips: Use and maintenance of power transducer

  • Regular calibration: After long-term use, the sensor may drift. Regular calibration is recommended to ensure accurate measurement.
  • Check the connection terminals: After long-term operation, the terminal screws may loosen, resulting in unstable signals. Check and tighten them regularly.
  • Avoid overload: Make sure the input signal does not exceed the rated range to prevent damage to the sensor or increase in measurement error.
  • Prevent moisture and high temperature: Excessive ambient temperature and humidity may affect the life of the circuit board. Keep it ventilated and dry.
