1-phase AC Voltage Transducer, 0~120V/300V/450V/600V

$175.54
1-phase AC voltage transducer for sale at a low price, 0-120V/300V/450V/600V input, compressive strength AC2Kvrms/min, output voltage 0-10VDC/0-5VDC/1-5VDC, output current 0-1mA/0-10mA/0-20mA/4-20mA, stable output signal. Suitable for residential, commercial equipment and single-phase industrial circuit monitoring.
*
*
*
*
*
SKU: ATO-PT-V1
30-day Returns
Free Shipping
Delivery date: 6-12 days

Single-phase AC voltage transducer shell material ABS fireproof material, insulation resistance exceeds 100mΩ, uses 35mm standard rail or fixed on the cabinet, working environment temperature is 0~50℃, working environment humidity <80% relative humidity, strong and durable.

Specification

Model ATO-PT-HDB-V1
AC Voltage Input 0-120V,0-300V,0-450V, 0-600V, customization (optional)
Allow Overload Voltage×1.2 times the nominal value lasts
Accuracy Average measurement, 0.5
True RMS measurement, 0.5
Average measurement, 0.2
True RMS measurement, 0.2 (optional)
Response Time ≤400ms
Output Channel 1 channel, 2 channels, 3 channels (optional)
Output Voltage 0-10V, 0-5V, 1-5V (load resistance = input voltage/10mAdc)
Output Current 0-1mA, 0-10mA, 0-20mA, 4-20mA (Load resistance=10VDC/output current)
Other Output RS485, customization
Output Ripple ≤0.5% RO peak
Work Environment Temperature and Humidity 0~50℃/less than 80% relative humidity (no condensation)
Storage Conditions Temperature and Humidity -20~70℃/less than 70% relative humidity (no condensation)
Aux.power Supply DC12V, DC24V, AC220V, DC220V, AC110V, DC110V, 2-wire circuit power supply (optional)
Isolation Input/output/power supply/shell
Power Consumption DC about 3W, AC about 4VA
Material of Shell ABS fireproof material
Weight About 300 grams
Compressive Strength AC2kVrms/min
Insulation Resistance >100MΩ at DC500V
Dimension 120 (L) × 55 (W) × 75 (H) mm
Installation Method 35mm standard guide rail or fixed on the cabinet


Dimension (Unit: mm)

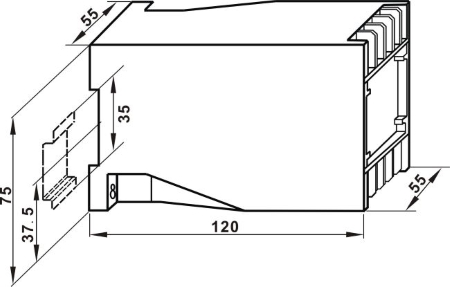

Dimension of 1 phase AC voltage power transducer

Calibration Fine Tuning

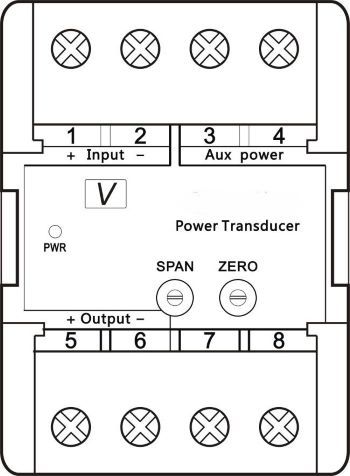

1 phase AC voltage power transducer calibration fine tuning

PWR: Power indicator
SPAN: Calibration full scale potentiometer
ZERO: Zero potentiometer

Wiring

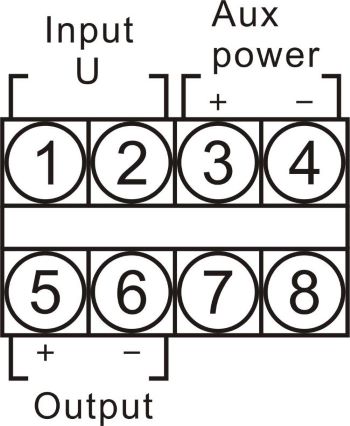

1 phase AC voltage power transducer wiring

Tips: Main uses of power transducers

  • Power system monitoring: power management of substations and power plants, monitoring power changes in distribution systems, identifying load imbalance, power loss and other problems
  • Industrial automation: monitoring and controlling the power consumption of industrial equipment to improve efficiency. Load management to prevent equipment overload or abnormal operation.
  • Energy management: monitoring energy consumption data of factories, buildings, shopping malls and other places, identifying high-energy consumption equipment, optimizing power distribution, reducing operating costs, assisting smart grids in optimizing power supply and improving energy efficiency.
  • Motor and equipment protection: monitoring the operating status of equipment such as motors and transformers, identifying current/voltage anomalies, timely alarming, preventing damage, ensuring long-term stable operation of equipment, and reducing maintenance costs.
