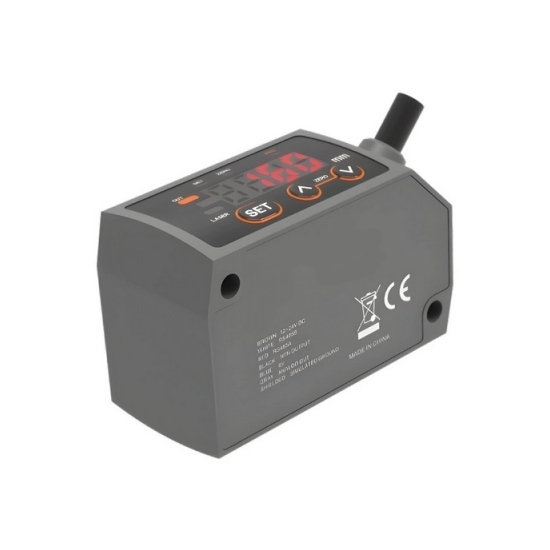

Digital Displacement Sensor, Laser Triangulation, 30-200mm

Write a review

$307.38

Precise, non-contact measurement, the digital displacement sensor makes displacement measurement more efficient. Utilizing laser triangulation and a unique optical design, this displacement sensor delivers exceptional stability with repeatability up to 10μm and linearity as high as ±0.1% F.S. Available in multiple ranges from 30-200mm and with NPN/PNP output options, it suits diverse applications including thickness, height, and step detection to meet varied requirements.

Output *
Range *

SKU: ATO-DC-30200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Micro digital displacement sensor with a small size for easy installation. It features IP67 dustproof and waterproof protection. Metal sleeves are embedded in the mounting holes, enabling it to withstand a tightening torque of 0.8 N·m for enhanced stability. This displacement sensor integrates multiple protection mechanisms, ensuring safe operation and reducing maintenance costs.

Specification

Model	NPN	ATO-MLD25-30NV	ATO-MLD25-50NV	ATO-MLD25-100NV	ATO-MLD25-200NV
	PNP	ATO-MLD25-30PV	ATO-MLD25-50PV	ATO-MLD25-100PV	ATO-MLD25-200PV
Operating Principle		Triangulation Measurement
Housing Style		Square type
Optical Principle		Diffuse reflection
Reference Distance *1		30 mm	50 mm	100 mm	200 mm
Measuring Range		25–35 mm	35–65 mm	65–135 mm	120–280 mm
Light Source *2		Red semiconductor laser, Wavelength: 655 nm, 1 mW, Class 2
Spot Size *3		φ40 μm	φ50 μm	φ80 μm	φ140 μm
Switching Mode		L.on/D.on mode / Pushbutton / RS-485 switching
Output Mode		Switching (NPN/PNP) / Analog (Voltage 0–5 V / Current 4–20 mA) / RS485 Output
Analog Output	Voltage	Output range: 0 V ~ 5 V (+5.2 V at alarm), Output impedance: 100 Ω
	Current	Output range: 4 mA ~ 20 mA (0 mA at alarm), Load impedance: Max. 300 Ω
Communication Protocol		Modbus RTU
Response Time		<10 ms / 5 ms / 1.5 ms
Linearity		±0.1% F.S.			±0.2% F.S.
Repeatability		10 μm	30 μm	70 μm	200 μm
Temp Drift Characteristic		0.03%/℃ F.S.
Supply Voltage		12~24 V DC ±10%
Current Consumption		≤65 mA at 12 V, ≤40 mA at 24 V			≤50 mA at 24 V, ≤80 mA at 12 V
Load Current		≤100 mA
Insulation Resistance		>500 MΩ (at 500 V DC)
Withstand Voltage		<0.1 mA (at 1000 V AC)
Protection Circuits		Reverse polarity protection / Short-circuit protection / Overload protection / Surge protection
Operating Ambient Temperature		-10 ~ +45 ℃ (no freezing)
Operating Ambient Humidity		35–85% RH (no condensation)
Ambient Illumination		Sunlight: ≤10000 lux (no interference); Incandescent lamp: ≤3000 lux
Vibration Resistance		10~55 Hz sweep, 1.5 mm amplitude, 2 hours each on X, Y, Z axes
Protection Rating		IP67
Connection Method		7-core composite cable, 2 m length
Dimensions		20 × 28 × 45 mm
Material		Main housing: Die-cast aluminum; Front cover: Acrylic
Weight		90g
Accessories		Connecting cable
Notes		*1: When no measurement conditions are specified, the following conditions apply: Supply voltage: 24 VDC, Ambient temperature: +20℃, Response time: 10 ms, Analog output at the center measuring distance. Target object: White ceramic.
		*2: Compliant with FDA regulations in accordance with Laser Notice No. 50.
		*3: This value is the result at the reference (center) distance. Defined as 1/e² (approx. 13.5%) of the peak light intensity. Detection results may be affected if light leaks outside the defined area or if objects with higher reflectivity than the target are present around the beam.

Features

Precision Non-Contact Displacement Measurement: The digital displacement sensor employs laser triangulation technology, achieving repeatability accuracy up to 10μm (at 30mm range) with linearity of ±0.1% F.S. It supports diverse applications including thickness, step height, bending, and positioning inspections.
Robust and Durable: Featuring an IP67 protection rating, this displacement sensor is dustproof and waterproof. Its mounting holes with metal sleeves support up to 0.8 N·m tightening torque. Multiple protection mechanisms enhance reliability, making this displacement sensor ideal for harsh industrial environments such as manufacturing and machining.
Multiple Range Options: The ATO digital displacement sensor offers 30/50/100/200mm range selections to accommodate diverse distance detection requirements.

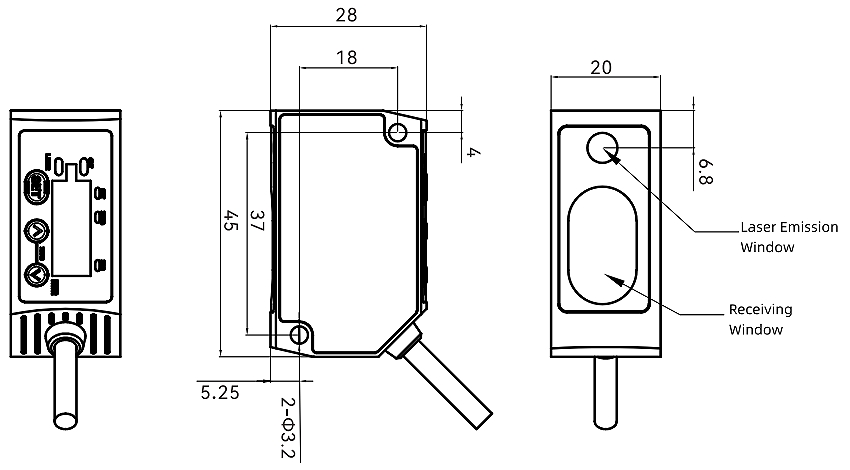

Dimension (unit: mm)

digital displacement sensor dimension

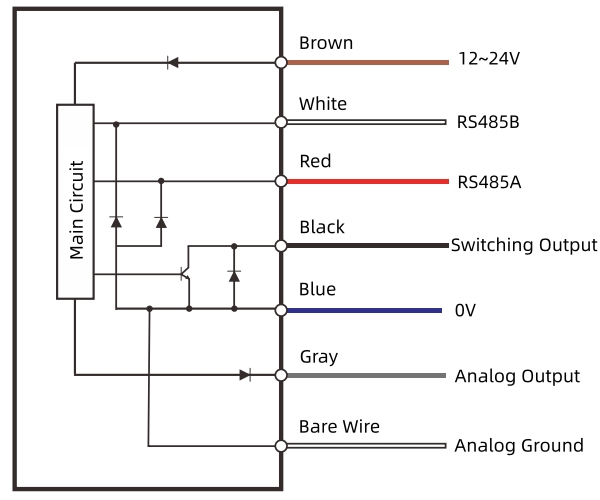

Circuit Diagram

digital displacemen sensor circuit diagram

Tips: What is a digital displacement sensor?

A digital displacement sensor is a high-precision measuring tool that accurately converts the displacement of an object into a digital signal output. It can be used to detect minute changes in thickness, height, gaps, and other minute parameters. Its core feature is that the digital signal output is a discrete digital code, giving the signal high anti-interference capability and high resolution, facilitating direct connection to control systems or data acquisition equipment for automation and precision control. Therefore, digital displacement sensors are widely used in machining, industrial automation, quality inspection, and materials testing.
