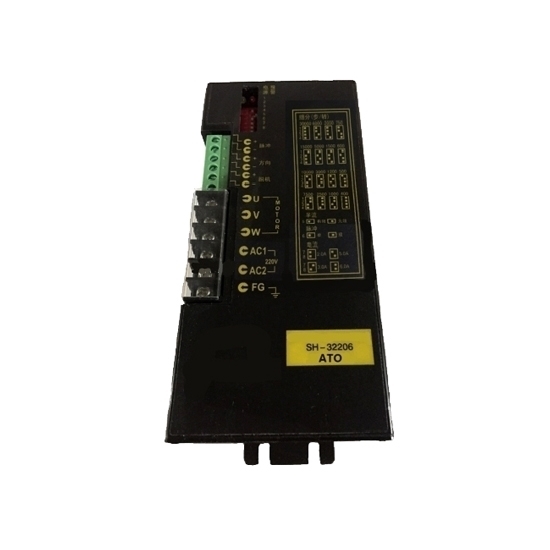

Digital Stepper Driver for 3 phase Nema 34, 42 Stepper Motor

5 out of 5 based on 2 reviews | Write a review

$231.36

ATOSH32206 is digital 3-phase stepper motor drive, it is widely used in middle and big size numerical control devices such as curving machine, CNC machine, and computer embroider machine, packing machines and so on. Capable of driving 3 phase Nema 34, 42 closed-loop hybrid stepper motors.

Input Pulse Voltage *

SKU: ATO-STEP-D3442

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

Cheap Price 3-phase digital stepper driver, AC 80-220V power supply for 3 phase Nema 34, 42 stepper motor, manufacturer direct sale.

Features:

32-bit DSP digital control mode.
Low vibration, low noise, low power consumption.
Flexible subdivision runs more smoothly.
Automatic memory power phase.
Optically isolated input signal.
Space vector bipolar constant current drive.
Maximum output current 6A/ phase.
Provide energy-saving automatic half-current lock function.
Maximum 30000 steps/ turn of the 16 subdivision mode optional.

Specifications

Basics Information
Model	ATOSH32206
Size	187 x 116 x 81 mm
Phase	3
Weight	1.2 kg
Supply Power	AC 80-220V
Capacity	0.8 kVA
Output Current	Peak 6A/Phase (Max.)
Driver Method	Space vector bipolar constant current drive
Isolation Resistance	>500 MΩ
Dielectric Strength	1kV, 1Min
Cooling Method	Natural Convection
Environment
Operation Environment	Temperature		-5℃~+40℃
	Humidity		<80% RH
	Vibration		5.9m/s²(Max.)
Storage Environment	Temperature		-40℃~+55℃
	Humidity		<93% RH
Function Description
Functions	Operation Instructions
Signal Interface	PUL	PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
	DIR	DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
	ENA	ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface	A	A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
	B	B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
	When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light	1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

Driver Wiring Diagram

Installation Size (Unit: mm)

Tips: Full-step drive mode of stepper motor
In the full-step operation, the same kind of stepper motor can be equipped with full / half step driver, as well as subdivision driver, which, however, have different operation effects. The stepper motor driver cyclically energizes the two coils of the two-phase stepper motor (set current for the coil) in pulse / direction commands. Each pulse of this type of drive will move the motor by a base step angle of 1.80 degrees (a standard two-phase motor has a total of 200 step angles in a coil).

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.
