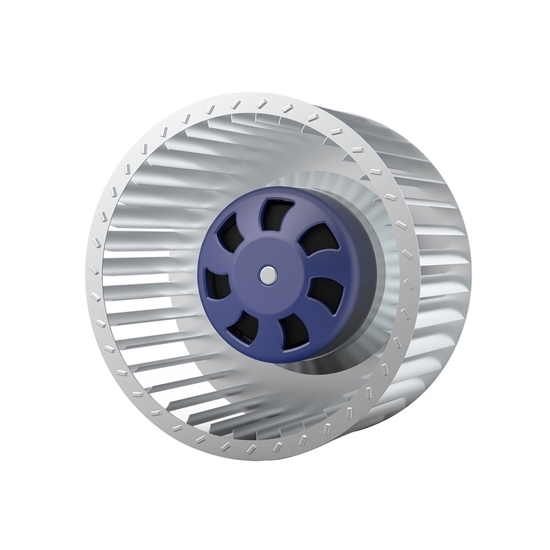

EC Forward Curved Centrifugal Fan, 200mm, 230V

5 out of 5 based on 1 reviews | Write a review

$615.09

Low noise EC (electronically commutated) forward curved centrifugal fan is a high-efficiency air movement device used in various HVAC applications. ATO favorable price EC forward inclined centrifugal blower comes with 200mm (8 inch) impeller, 230W motor, 820m3/h (480 cfm) air volume, 2450rpm speed, working at 230V AC voltage, and 1.5A current, which is effective for low to medium pressure applications, such as ventilation and air conditioning.

SKU: ATO-FCCF-EC200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Proposition 65 Warning

Low noise EC (electronically commutated) forward curved centrifugal fan comes with 200mm (8 inch) impeller working at 230V voltage, which combines the efficiency of EC motors with the effective airflow characteristics of forward inclined blades. EC motors are high efficiency and have variable speed control, and integrated electronics, allowing precise performance adjustments.

Specification

Model	ATO-BL-F200B-EC-07
Operating Voltage	230V AC
Frequency	50/60Hz
Max. Power	230W
Motor Power	230W
Max. Current	1.5A
Noise	70dB(A)
Impeller Diameter	200mm (8 inch)
Speed	2450rpm
Air Volume	820m³/h (480 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	PA6+GF
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protector Automatically Reset
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS
Weight	3.5kg

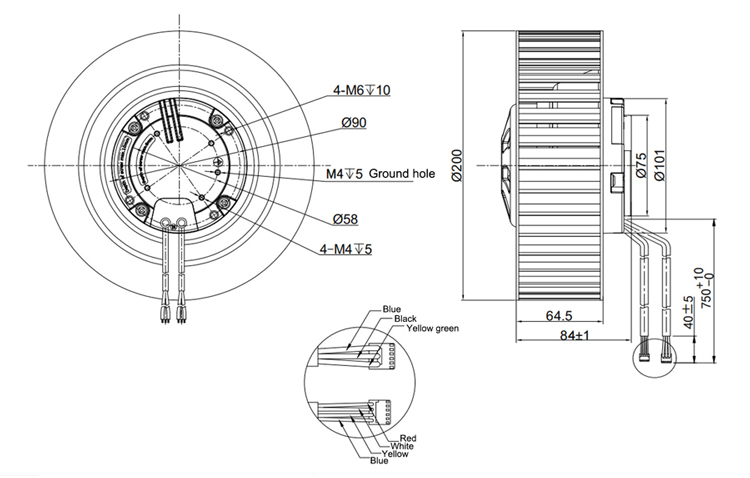

Dimension (Unit: mm)

EC forward curved centrifugal fan dimension

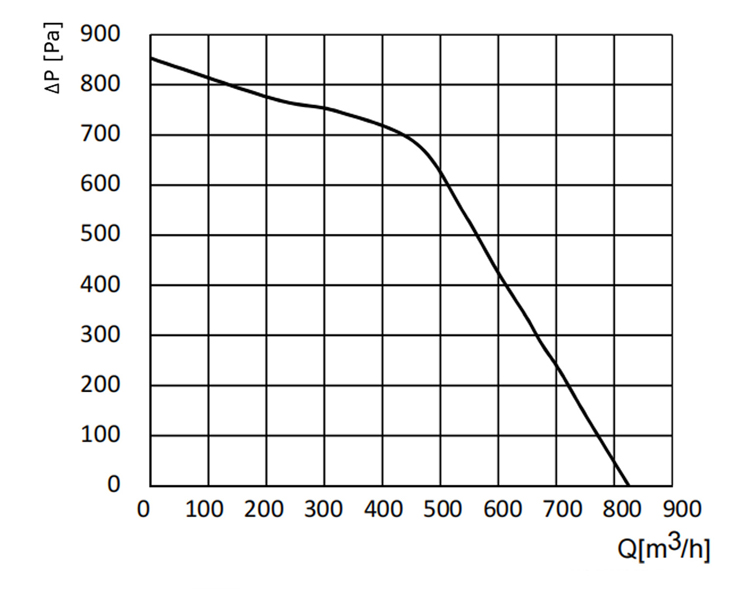

Performance Curve

EC forward curved centrifugal fan performance curve

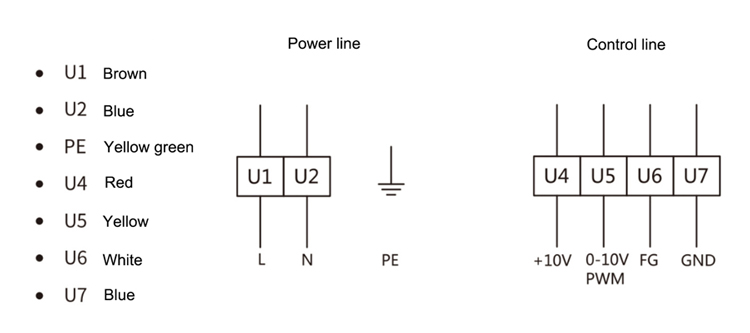

Wiring

EC forward curved centrifugal fan wiring

Detail

EC forward curved centrifugal fan detail

Tips: How does an EC forward curved centrifugal fan work?

An EC (Electronically Commutated) forward curved centrifugal fan operates using a combination of a centrifugal fan design and electronic motor control. The forward curved blades, which are curved in the direction of the airflow, draw air into the fan and then propel it outward at a high velocity. This design is ideal for creating high static pressure and ensuring consistent airflow.

The EC motor, a type of brushless DC motor, integrates electronic controls within the motor itself, allowing precise control of speed and efficiency. Unlike traditional motors with separate speed controllers, EC motors adjust the fan speed based on real-time demand and operational conditions. This results in energy savings, reduced noise, and improved reliability. The synergy between the forward inclined blade design and the EC motor’s control system enhances overall performance and efficiency in ventilation and air handling applications.

*WARNING: This product can expose you to chemicals, including lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

Existing reviews of EC Forward Curved Centrifugal Fan, 200mm, 230V

Strong and consistent

I installed this 200mm EC forward curved centrifugal fan in an HVAC project, and it has been performing exceptionally well. The airflow is strong and consistent, delivering close to its rated 820 m³/h without producing much noise. The 230V EC motor runs efficiently and stays cool even during long operation, and the 2450 rpm speed provides plenty of pressure for ventilation and air-conditioning applications. Wiring and mounting were straightforward, and the build quality feels solid for the price.
