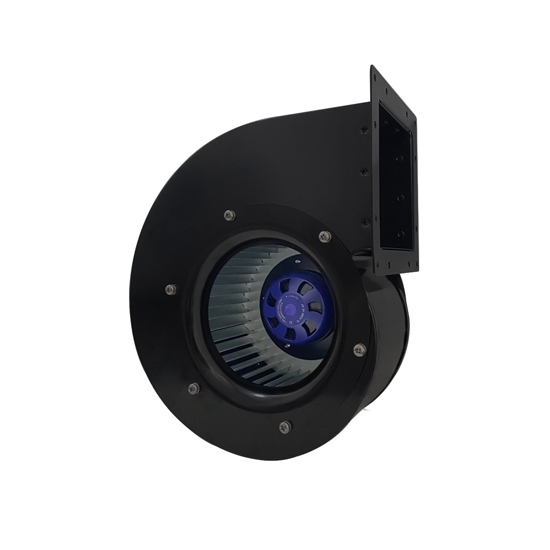

EC Single Inlet Centrifugal Fan, 200mm, 230V

$557.29

EC (electronically commutated) single inlet centrifugal fan is a ventilation blower that combines high efficiency with low noise levels. With a 230W EC motor, 200mm (8 inch) impeller, 1000m3/h (600 cfm) air volume, working at 230V AC voltage and 1.65A current, this turbo centrifugal fan is widely used for applications requiring directional airflows, such as HVAC systems, data centers, and industrial processes.

SKU: ATO-SICF-EC200

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

EC single inlet centrifugal fan with 200mm (8 inch) impeller is a versatile ventilation blower designed for various industrial and commercial applications. Featuring a 230V AC, 230W electronically commutated (EC) motor, this centrifugal exhaust fan offers energy efficiency, low noise levels, and precise speed control.

Specification

Model	ATO-SL-F200A-EC-07
Operating Voltage	230V AC
Frequency	50Hz/60Hz
Max. Power	230W
Motor Power	230W
Max. Current	1.65A
Noise	76dB(A)
Speed	2200rpm
Impeller Diameter	200mm (8 inch)
Air Volume	1000m³/h (600 cfm)
Speed Regulation	0~10VDC / PWM
Impeller Material	Metal
Rotation Direction	Clockwise CW (from the rotor end)
Operation Mode	S1
Bearing	Ball Bearing
Operating Temperature	-25~60℃
Motor Protection	Thermal Protection, Soft Start Protection, Stall Protection
Performance	Low Noise Fan
Protection Level	IP55
Insulation Level	B
Certificate	CCC, RoHS

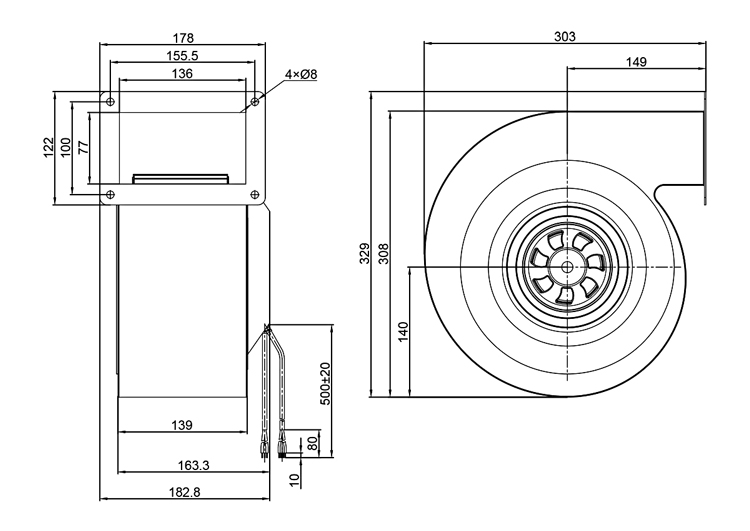

Dimension (Unit: mm)

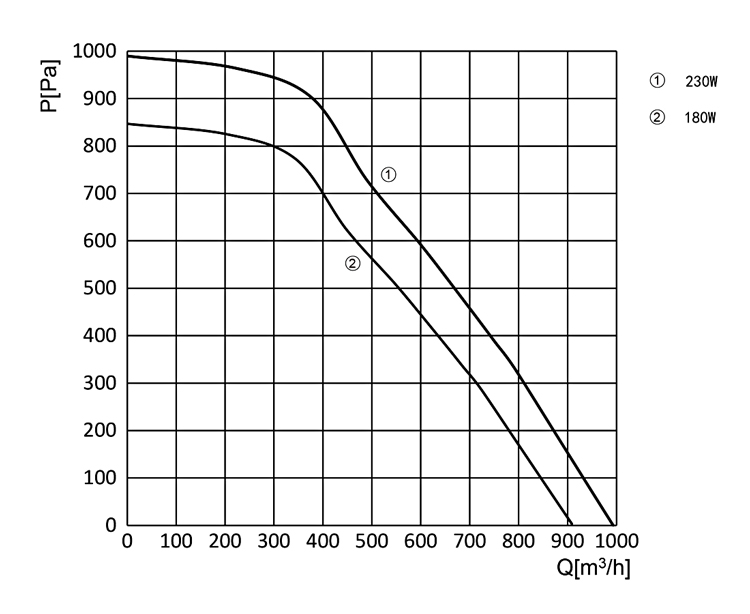

Performance Curve

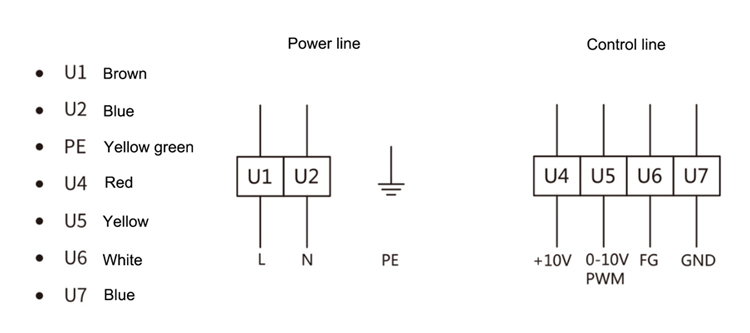

Wiring

Tips: What is a single inlet centrifugal fan?

A single inlet centrifugal fan is a type of air-moving device that uses centrifugal force to move air or gases. It features a single intake where air enters the fan and is then directed to a spinning impeller. The impeller, which consists of curved blades, rotates rapidly, causing the air to be forced outward towards the fan’s discharge. This centrifugal motion increases the air pressure and velocity as it exits the fan. Single inlet centrifugal fans are commonly used in HVAC systems, industrial processes, and ventilation applications for their efficient air handling and compact design. They are ideal for scenarios requiring moderate to high airflow and pressure levels. The design allows for a relatively straightforward installation and operation, making them a popular choice in various industrial and commercial settings.
