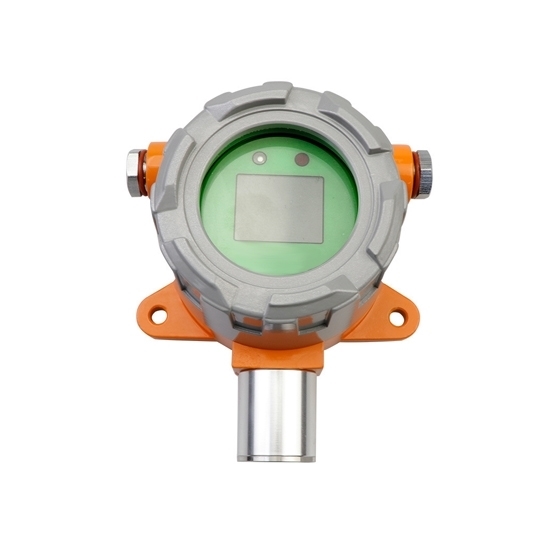

Explosion-Proof Methane (CH4) Gas Detector, 0-100/1000ppm

5 out of 5 based on 1 reviews | Write a review

$372.22

Featuring parameters such as ±3% accuracy, multiple signal outputs (4~20mA, 0-5V, 0-10V, RS485), and a robust IP65 protection rating, this explosion-proof methane gas detector ensures reliable operation in challenging conditions. Currently for sale, the fixed CH4 detector offers good value for its price and is ideal for industrial gas detection in chemical plants and coal yards.

SKU: GD400-CH4

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

This explosion-proof methane gas detector offers high sensitivity and stable signal output, ensuring precise detection across a broad measurement range. With an operating temperature range of -30~+50°C (-20~+40°C continuous) and a response time of less than 15 seconds, it is well-suited for continuous and harsh industrial environments.

Features

Modular structure for easy maintenance and simple wiring installation.
High-sensitivity gas detection probe with stable signal and high accuracy.
Finely designed structure that is waterproof and dustproof.
Wide measurement range, suitable for industrial gas detection.

Specification

Model	ATO-FST100-G109
Measurement Range	0-100ppm / 0-1000ppm
Measurement Method	Electrochemical
Power Supply	12-24VDC
Signal Output	4-20mA, 0-5V, 0-10V, RS485
Baud Rate (RS485)	2400, 4800, 9600
CH Accuracy	±3% of the reading
Power Consumption	<1W
Respond Time	<15s
Operating Temperature	-30℃~+50℃ (-20℃~+40℃ continuous)
Operating Humidity	15~95%RH (non-condensing)
Protecting Rating	IP65
Explosion Proof Marking	ExdIICT6

Dimension (unit: mm)

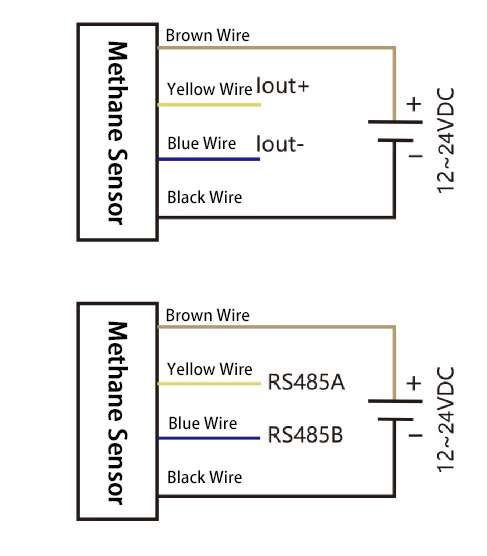

Connection

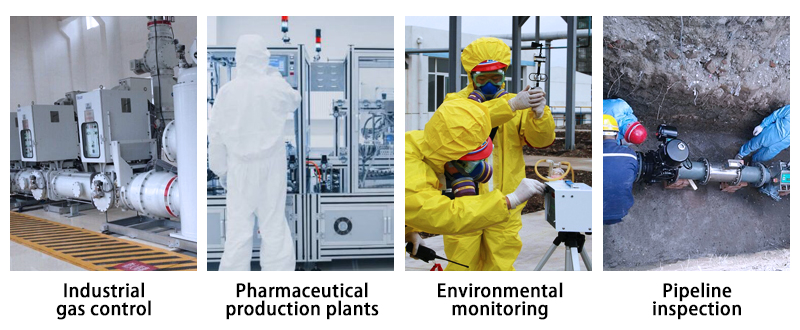

Application

Tips：How does the explosion-proof CH4 gas sensor ensure safety in hazardous environments?

The sensor is designed with ExdIICT6 certification, ensuring it operates safely in explosive atmospheres with methane, providing reliable protection against potential risks. Exd is an indicator of the explosion-proof rating, where “II” refers to a gas environment, “C” indicates it is for use in coal mines, and “T6” signifies that the surface temperature of the sensor will not exceed 85°C (in accordance with IEC 60079-0 standard), allowing it to be used in explosive environments with methane and coal dust.

Different Types of Gas Detectors

Gas detectors can come in a variety of forms to meet the unique needs of different gas monitoring applications. In this video, the different types of gas detectors on the market will be explored based on various criteria to help you choose the option that best suits your specific needs.

Portable Oxygen Gas Detector with PC Interface

The Smart Handheld Gas Detector from ATO is designed to detect oxygen in a range from 0% to 30%. In this video, ATO will show you that the detector uses a micro sampling pump to draw in the measured gas with the max flow rate up to 1L/min. The LED display provides simultaneous pickup of gas variety, density units, the maximum value, local time and atmospheric temperature, etc.
