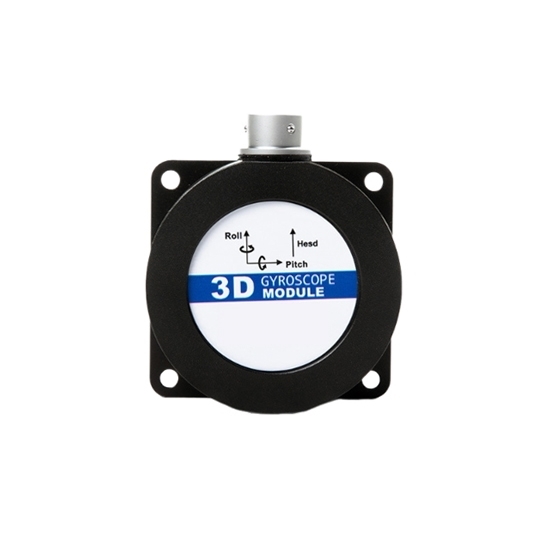

3D Gyroscope Sensor, Voltage Output 0-5V/0-10V, 1/2/3 Axis

Write a review

$686.17

Good price for the latest 3D gyroscope sensor, output voltage 0-5V/0-10V, 0.5-4.5V optional, built-in high-performance digital signal processing chip, angular velocity output 1/2/3 axis optional (X/Y/Z axis). Can measure the fastest rotation speed of ±50°/S ~ ±300°/S, the use of MEMS manufacturing process, with waterproof, shockproof, anti-electromagnetic interference, low power consumption and other characteristics.

Output Signal *
Angular Velocity Range *
Angular Velocity Output *

SKU: ATO-GS-ML720

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-performance voltage output 3D gyro sensor with high consistency and stability, is an industrial level measurement of the angular velocity of the object sensor, output voltage 0-5V/0-10V, 0.5-4.5V, angular velocity output (3-axis X/Y/Z optional), the rotational rate of up to ±50°/S~±1200°/S. Adaptable to a variety of harsh environments, the application of motion attitude control, automated cargo handling vehicles, robot balancing, high-speed trains, and other applications.

Specification

Model	ATO-ML720-50	ATO-ML720-150	ATO-ML720-300
Angular Velocity Range	±50°/S	±150°/S	±300°/S
Output Signal	0-5V/0-10V/0.5-4.5V (optional)
Angular Velocity Output	1/2/3 Axis (X, Y, Z optional)
Acquisition Width	>2000Hz
Resolution	±0.001°/S
Non-linearity	0.1% of FS
Temperature Compensation Range	-45°C~85°C
Temperature Drift	<±0.1°/sec	<±0.15°/sec	<±0.2°/sec
Power-up Time	0.5s
Bias Stability	5°/hr 1σ
MTBF	≥45000 hours/times
Shock Resistance	2000g, 2ms, 1/2sine
Anti Vibrations	10grms, 10~1000Hz
Cable	Standard 1.5 meter length, abrasion-resistant, oil-resistant, wide temperature, shielded cable 6*0.3mm2
Connector	7-pin flight plug
Supply Voltage	9-36VDC
Operating Current	35mA
Output Load	Resistivity: 10kΩ
	Capacitance: 20nF
Operating Temperature	-40°C~85°C
Storage Temperature	-55°C~100°C
Protection Class	IP67
Shell Material	Aluminum alloy frosted oxidation
Mounting	Four head M4 screws
Weight	500g

Note*: If you need ±450°/S, ±1200°/S or others angular velocity output, please contact us.

Dimensional Drawing (unit: mm)

Gyroscope sensor current output size

Axis Direction

Gyroscope sensor current output axial direction

Angular Velocity Measurement

Gyroscope sensor voltage output angular velocity measurement

Electrical Connection

6 Pole Receptacle Pins	7 Pole Receptacle Pins	Pin Color	Single Axis Gyro	Dual Axis Gyro	3-Axis Gyro
1	1	RED	VCC	VCC	VCC
2	2	BLACK	GND	GND	GND
3	3	GREEN	RS232(RX)	RS232(RX)	RS232(RX)
4	4	YELLOW	RS232(TX)	RS232(TX)	RS232(TX)
5	5	WHITE	X-axis voltage signal	X-axis voltage signal	X-axis voltage signal
6	6	BROWN	NC	Y-axis voltage signal	Y-axis voltage signal
/	7	BLUE	NC	NC	Z-axis voltage signal

Wiring Drawing

gyroscope sensor voltage output wiring diagram

Applications

gyroscope sensor applications

Tips: What is voltage type gyroscope sensor?

The ML720 is a high-precision voltage output 3D gyroscope sensor that measures the angular velocity (i.e. rotational speed) of an object in three-dimensional space. Unlike conventional gyroscopes, this sensor utilizes a voltage signal to reflect changes in the angle of rotation, and is commonly used in areas such as navigation, stability control systems, robotics, and aerospace. By sensing rotational motion in the three-axis direction, it provides more comprehensive angular velocity data and is widely used for precision measurement and attitude control.

ATO gyroscope sensors are cost-effective, with small products, non-contact measurement, and stable and reliable long-term operation. They are widely used in automotive, marine, position and attitude control of moving objects, and other applications requiring precise angular measurement.
