    High Temperature Limit Switch with Roller Plunger

    5 out of 5 based on 1 reviews | Write a review
    $148.15
    There are two types of roller plunger limit switch, the roller direction of the one is parallel to the mounting surface, and the other is perpendicular to the mounting surface. Roller plunger has automatic reset function. It is also high temperature limit switch with the fully enclosed 1NO + 1NC contact switches casting from high temperature resistant material. It can be used in the environment temperature 350℃ (622℉) and without being damaged by oxidation or pollution. The default rated current and voltage is 5A/220VAC. Other values are customizable, such as 3A/480VAC, 0.8A/120VDC, etc.
    *
    SKU: ATO-HTLS-RP
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    High temperature limit switch has two types of roller plunger, with contact type 1NO + 1NC and rated current/voltage 5A/220VAC.

    Specification

    Model ATO-HTLS-XWKC ATO-HTLS-XWKD
    Weight 258g
    Roller direction * Parallel to the mounting surface Perpendicular to the mounting surface
    Rated voltage 220VAC (Customizable rated voltage is shown in the reference table below.)
    Rated current 5A (Customizable rated current is shown in the reference table below.)
    Contact type 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4)
    Operating speed 1mm/s~2m/s
    Operating frequency Machinery: 120 times/minute
    Electric: 30 times/minute
    Contact resistance <15MΩ, initial stage
    Insulation resistance >100MΩ (<500VDC)
    Withstand voltage Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute
    Between the terminal and the contact: 2000VAC, 50/60Hz lasts 1 minute
    Between terminal and no-load current metal: 2200VAC, 50/60Hz lasts 1 minute
    Vibration Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude
    Impact Mechanical endurance: >1000m/s2 (>100G)
    Misoperation endurance: >300m/s2 (>30G)
    Shell material Cast aluminum alloy
    Temperature -10~+350℃ (14~622℉)
    Humidity <95%RH
    Working life Machinery: >15million times
    Electric: >0.5million times
    Protection class IP66


    Reference table for customizable rated voltage and rated current

    Rated voltage Rated current (A)
    Non-inductive load Inductive load
    Resistive load Lamp load Inductive load Motor load
    NC NO NC NO NC NO NC NO
    125VAC 10 3 1.5 10 5 2
    250VAC 5 2 1 5 3 1.0
    480VAC 3 1.5 0.8 3 1.5 0.8
    600VAC 1 1 0.5 1.5 1 0.5
    8VDC 10 6 3 10 6
    14VDC 10 6 3 10 6
    30VDC 6 4 3 6 4
    125VDC 0.8 0.2 0.2 0.8 0.2
    250VDC 0.4 0.1 0.1 0.4 0.1

    Note:

    1. Power factor of inductive load is above 0.4 (AC). The time constant is below 7ms (DC).
    2. The inrush current of lamp load is 10 times that of steady state current, and the inrush current of motor load is 6 times that of steady state current.

    Operating Characteristics

    Model ATO-HTLS-XWKC ATO-HTLS-XWKD
    OF (Max.) 2720g 2720g
    RF (Min.) 910g 910g
    PT (Max.) 1.7mm 1.7mm
    OT (Min.) 5.6mm 5.6mm
    MD (Max.) 1mm 1mm
    OP 44±0.8mm 44±0.8mm


    Dimension (unit: mm)

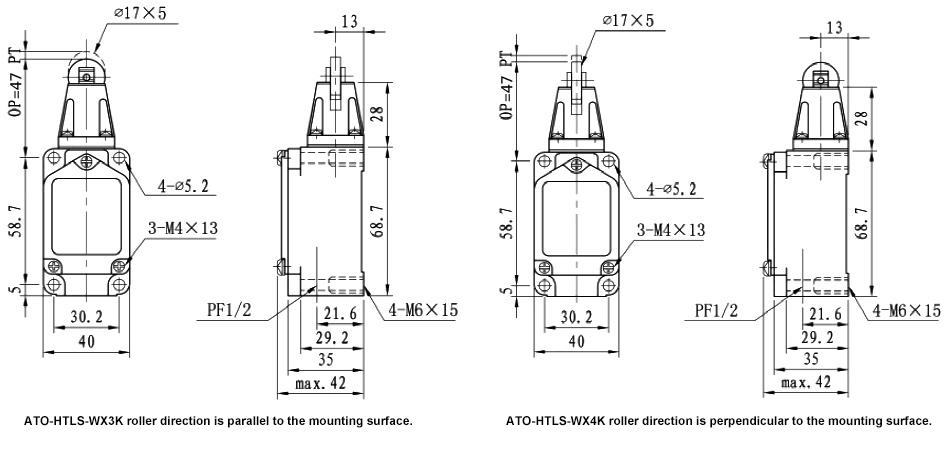

    High temperature limit switch with roller plunger dimension
    Note: In the diagram, OP means operation position, at which the external force is applied to the drive lever to make the movable contact just operating from the state of the free position. PT means pretravel, the distance the drive rod moves from the free position to the operation position.

    Tips: Testing before installing limit switch

    When actually using the limit switch, unexpected problems may occur. Therefore, testing before installation should be done to the extent possible.
    In the test, not only the load conditions but also the use environment must be tested under the same conditions as the actual use state.
    Each rated performance value described in the catalog is the value under the following conditions unless otherwise specified.

    • Inductive load: power factor above 0.4 (AC).
    • Time constant 7ms or less (DC).
    • Solenoid: Inrush current is 10~20 times of constant current.
    • Lamp load: Inrush current is 10~15 times of constant current.
    • Motor load: Inrush current is 5~10 times of constant current.
    • Relay: Inrush current is 4~5 times of constant current.

    The use environment:

    1. Ambient temperature: +5~35℃
    2. Ambient humidity: 40~ 70%RH

    Note that inductive loads are particularly problematic in DC circuits, so it is necessary to fully understand the value of the load's time constant (L/R).

    Existing reviews of High Temperature Limit Switch with Roller Plunger
    Related parameters of high temperature limit switch
    What is tripping travel of your high temperature limit switch?
    From: Arturo | Date: 14/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Tripping travel: ±5 degrees.
    Load more reviews...
