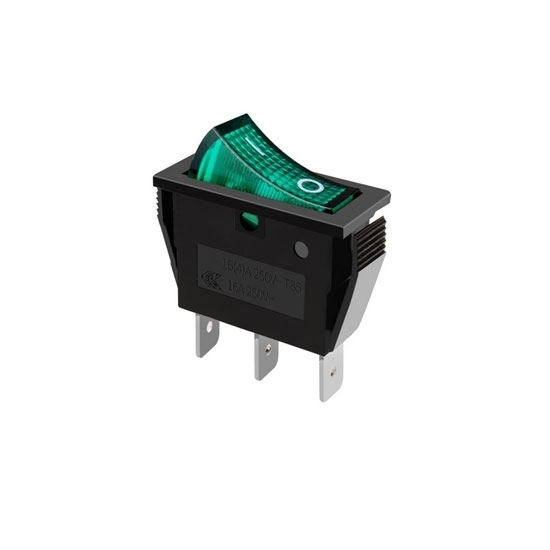

    Illuminated Rocker Switch, 3 Pin

    5 out of 5 based on 2 reviews | Write a review
    $6.98
    Green light illuminated rocker switch, 3 pin 2 position, single pole single throw, hole size 28 x 11mm, max current voltage 16A 250VAC, roker swith has high-quality shock resistance, strong shock resistance, and fast frequency response.
    SKU: ATO-RS-KCD2
    This product has a minimum quantity of 10

    Rocker switch with green led illuminate, 3 pins, 16A, 250V max rated current and voltage, 2 position on/off, high strength, high temperature resistance, corrosion resistance, long service life, stable and reliable.

    Specification

    Model ATO-RS-KCD2
    Rated Current 16A
    Rated Voltage 220V
    Terminals Number 3 Pin
    Contact Resistance ≤50mΩ
    Withstand Voltage 1500VAC 1 min
    Rated Range 15A 250VAC
    Relative Humidity <95%
    Protection Level IP40
    Terminal Insertion Force ≥80N
    Insulation Resistance ≥1000mΩ
    Electrical Life Time 10,000 Cycles
    Flame Retardant Requirements UL94-V2
    Operating Force 2N-8N
    Welding Welding temperature ≤320℃, welding time ≤3 seconds
    Illuminated Voltage Use ≤48V, allow fluctuation ±5%, use ≥48V, allow fluctuation ±25%
    Certificate UL, CE, ENEC
    Warranty 12 Months

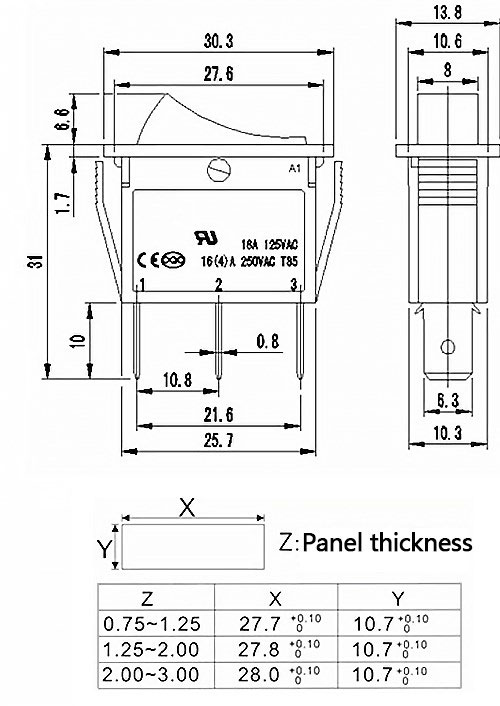

    3 Pin Illuminated Rocker Switch Dimension

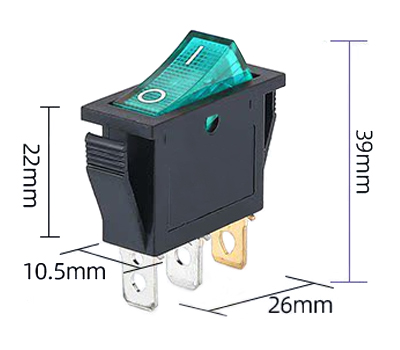

    Illuminated rocker switch dimension
    Single Pole Single Throw Rocker Switch Wiring Circuit Diagram
    Wiring circuit diagram

    Tips: Illuminated rocker switch features

    1. high strength, high temperature resistance, corrosion resistance, long service life, stable and reliable.
    2. The rocker switch adopts copper pin silver contacts, which has strong dust and corrosion resistance, high sensitivity, and good wear resistance and electrical insulation.
    3. Green illuminated rocker switch has excellent impact resistance, strong shock resistance and fast frequency response.

    Existing reviews of Illuminated Rocker Switch, 3 Pin
    Is it quiet?
    Well, just as the title. I am so tired with the noise. It sounds amusing but I really want to know that. Does this switch make an audible "click" when turning off or on? Please give me a favour.
    From: Firth | Date: 07/04/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes. But it’s not loud at all.
    High quality rocker switches
    I just tested a few others to make sure they worked. The switch allows for two different "on" states, which is good because I can have two different voltages to increase the RPM of the motor I'm driving.
    From: Jamir | Date: 06/05/2022
    Was this review helpful? Yes No (0/0)
