    Joystick Switch, 4 way

    5 out of 5 based on 1 reviews | Write a review
    Joystick switch at affordable price, which with 150V/ 250V/ 600V rated voltage, 15A/ 10A/ 4A rated current, 30mm hole diameter. The switch has 4NO/ 8NO 4-way automatic resetting two types for selection. Joystick switch has the advantages of strong shock resistance, convenient operation and long service life.
    This product has a minimum quantity of 3
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Lower price joystick switch with 10-15A operating current, 5-20N operating pressure. The switch is widely used in factory equipment, instrumentation, marine equipment, medical equipment, CNC lathes, and oil extraction.


    Model HKA1-41 HKA1-42
    Type 4 way automatic resetting/ 4NO 4 way automatic resetting/ 8NO
    Rated voltage 150V/ 250V/ 600V
    Rated current 15A/ 10A/ 4A
    Hole diameter 30mm
    Operating current 10-15A
    Contact NO
    Insulation voltage 600V
    Insulation resistance 100MΩ
    Operating pressure 5-20N
    Contact resistance 200Ω
    Operating temperature 0℃~85 ℃
    Operation method Emergency
    Installation size 22mm
    Panel thickness 2-5mm
    Reset method Manual control
    Certificate CCC
    Warranty 12 months

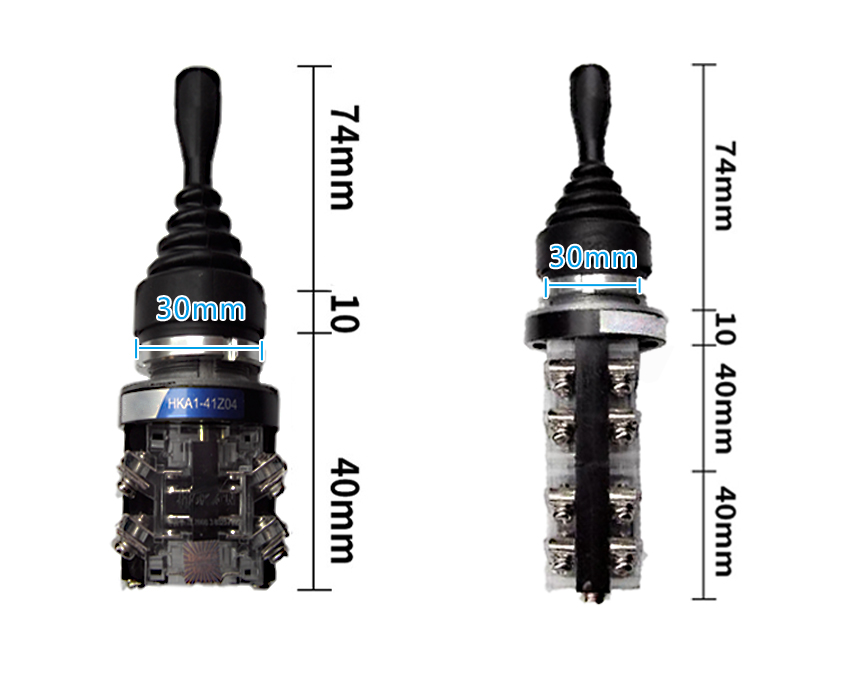

    Dimension (mm)

     Joystick switch dimension

    Tips: Conditions of Using Joystick Switch.

    1. Atmospheric conditions

    1. Humidity: The relative humidity of the air at the installation site does not exceed 50% when the highest temperature is +40℃, and it can have a higher relative humidity at a lower temperature. The monthly average temperature of the wettest month does not exceed +25℃, and the monthly average of the month The maximum relative humidity does not exceed 90%. Measures must be taken for condensation on the product due to temperature changes.
    2. Pollution degree: The pollution level of the master switch is specified as "Pollution Level 3", unless the specific product standard specifies otherwise or only after effective use of the shell, protective coating or sealing method, it may be reduced to "Pollution Level 2". It depends on the special purpose or micro-environment of the master switch.

    2. Vibration

    The switch should be able to work under vibration conditions with a frequency of 10 to 55 Hz and an amplitude of 0.75 mm (10 g).
