    Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A

    5 out of 5 based on 1 reviews | Write a review
    $35.00
    Cost-effective joystick switch for sales, featuring 4NO4NC, with 150V/ 250V/ 600V rated voltage, 15A/ 10A/ 4A rated current, 71mm hole diameter. It is widely used in factory equipment, instrumentation, marine equipment, medical equipment, CNC lathes, and oil extraction.
    SKU: ATO-JS-HKA1-1
    This product has a minimum quantity of 3
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Factory price joystick switch features 10-15A opertaing current, 600V insulation voltage, which with self-cleaning function and modular structure.

    Specification

    Model HKA1-1
    Type 4 way self-locking/ 4NO4NC
    Rated voltage 150V/ 250V/ 600V
    Rated current 15A/ 10A/ 4A
    Hole diameter 71mm
    Operating current 10-15A
    Insulation voltage 600V
    Insulation resistance 100MΩ
    Operating pressure 5-20N
    Contact resistance 200Ω
    Operating temperature 0℃-85 ℃
    Operation method Emergency
    Installation size 22mm
    Panel thickness 2-5mm
    Reset method Manual control
    Certificate CCC
    Warranty 12 months

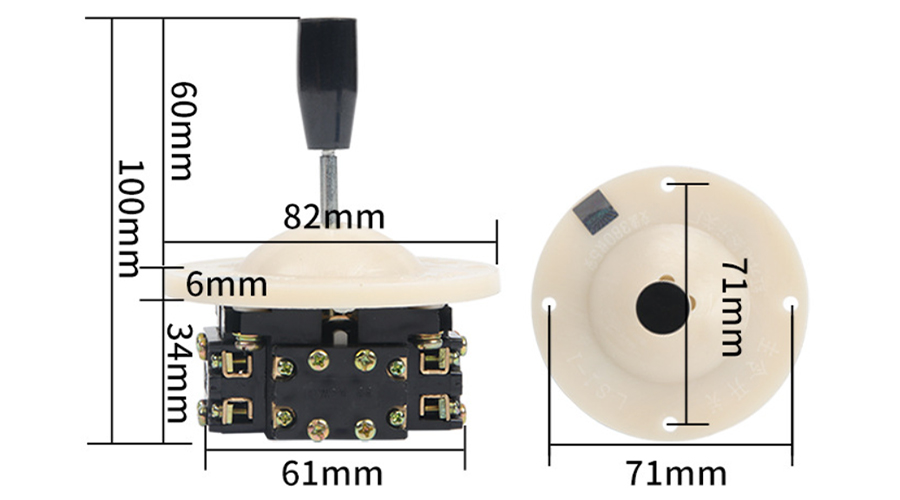

    Dimension (mm)

    Dimension of joystick switch of HKA1-1

    Tips: Conditions of Using Joystick Switch.
    1. Ambient air temperature
    (1) The upper limit of ambient air temperature is +40℃, and the average value within 24h does not exceed +35℃.
    (2) The lower limit of ambient air temperature is -5℃.
    The ambient air temperature refers to the ambient air temperature near the main switch, and for the master switch with a shell, it refers to the ambient air temperature near the shell.
    2. altitude
    The altitude of the installation site does not exceed 2000m.

    Existing reviews of Joystick Switch, 4NO4NC, 150V/ 15A, 250V/ 10A, 600V/4A
    I like the construction
    I used this together with 12 volt DC relays to control DC motors to control both the direction and deflection of the chute of the snowblower on my tractor. The service was first rate and everything worked as I hoped it would.
    From: Clairer | Date: 11/04/2022
