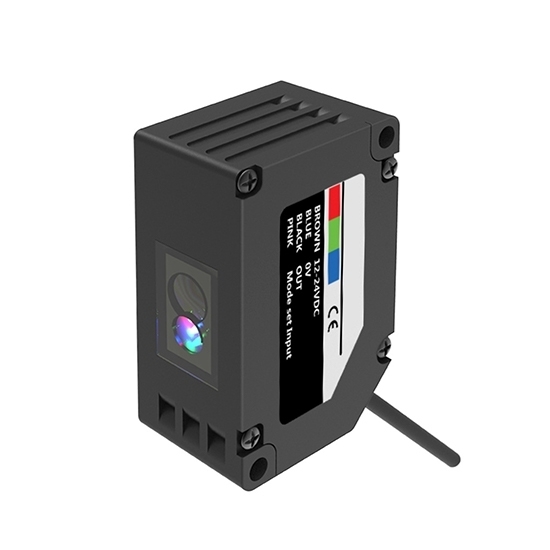

Photoelectric LED Color Sensor, 18-28mm

Write a review

$153.94

This photoelectric LED color sensor utilizes advanced RGB tri-color lighting to deliver high-precision color recognition and mark detection. With a versatile dual-mode operation, it allows seamless switching between color mode and mark mode to suit various industrial applications. Color identification sensor offers a long detection range of 18–28 mm, excellent anti-jitter performance for accurate and stable detection.

Output Type *

SKU: ATO-COLS-22N

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

This photoelectric LED color sensor is engineered for high-accuracy color discrimination and mark detection in industrial settings. Colour identification sensor employs RGB tri-color LEDs to support two operational modes—color mode and mark mode—enabling flexible and reliable performance across different applications. With features such as long detection range, adjustable hysteresis, and a compact rectangular light spot, this sensor ensures precision and stability even under challenging conditions.

Specification

Model	ATO-FGS-22N (NPN Output)	ATO-FGS-22P (PNP Output)
Sensing Distance	18–28 mm
Supply Voltage	12–24 V DC
Light Source Type	RGB Three-color Light
Spot Size	Approx. 1.5×7 mm (at 23 mm)
Residual Voltage	Below 1.5 V
Max. Input Current	Power below 850 mW Below 35 mA at 24 V
Current Consumption	50 mA
Response Time	< 100 μs
Mode Switching	Mark Mode: Low (ON) 0–0.6 V DC; Sink current below 0.5 mA; Input impedance approx. 10 kΩ
	Color Mode: High (OFF) 12 to +V DC or open
Output Action	Mark Mode: ON when mark detected Color Mode: ON when match
Light Projection Element	Composite LED; Red/Green/Blue (Peak Wavelength: 640 nm / 525 nm / 470 nm)
Operating Temperature	–10 ℃ to 55 ℃; 35% to 85% RH
Short-circuit Protection	Built-in
Weight	Approx. 104 g
Housing Material	ABS Engineering Plastic
Cable	4-core rubber cable, standard length 2 m
Wiring	4-wire Brown: +V; Blue: 0V; Black: Signal Output; Pink: Mode Switch

Feature

Dual Detection Modes: The photoelectric LED color sensor supports both color mode and mark mode. In color mode, it uses RGB tri-color LEDs to identify colors based on the reflected RGB ratio. In mark mode, it automatically selects the optimal single-color LED for high-speed mark detection.
Long Detection Range: Thanks to advanced optical and circuit design, the photoelectric LED color sensor achieves a reliable detection distance of 18–28 mm.
Anti-Jitter Performance: Equipped with adjustable hysteresis, the color identification sensor minimizes the impact of object vibration, ensuring stable operation.
Rectangular Light Spot: The color recognition sensor projects a rectangular light spot (approximately 1.5 mm × 7 mm at 23 mm), enabling precise detection on small or narrow targets.

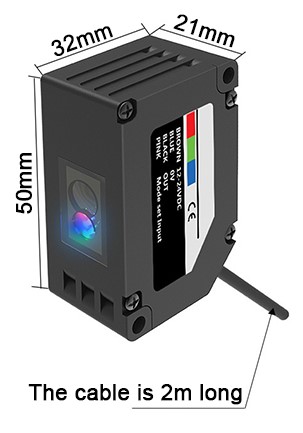

Dimension (Unit: mm)

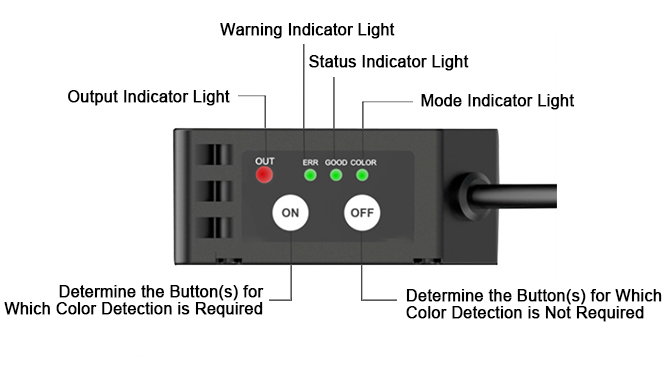

Detail

Wiring Diagram

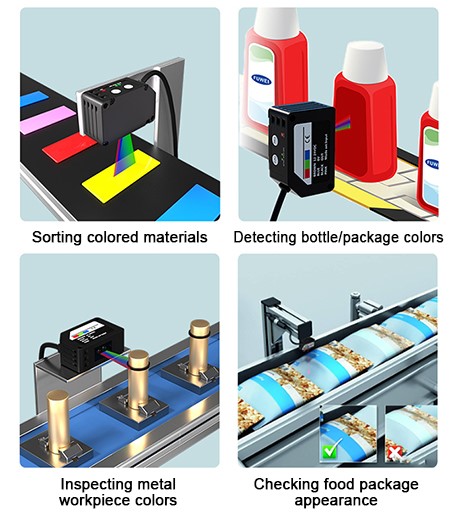

Application

3 Tips for Photoelectric LED Color Sensor Operation

Before teaching the photoelectric LED color sensor, confirm whether it is set to color mode or mark mode. The "COLOR" indicator light will be steadily lit in color mode and off in mark mode.
To teach the color sensor, first position it over the target color and press the ON button until the GOOD indicator flashes. Then, position it over the background color and press the OFF button to complete the setup.
Adjust the hysteresis setting to reduce the effects of object vibration. Press and hold the ON button for about 5 seconds until the hysteresis indicator flashes, then use the OFF button to select the desired hysteresis level (small, medium, or large).
