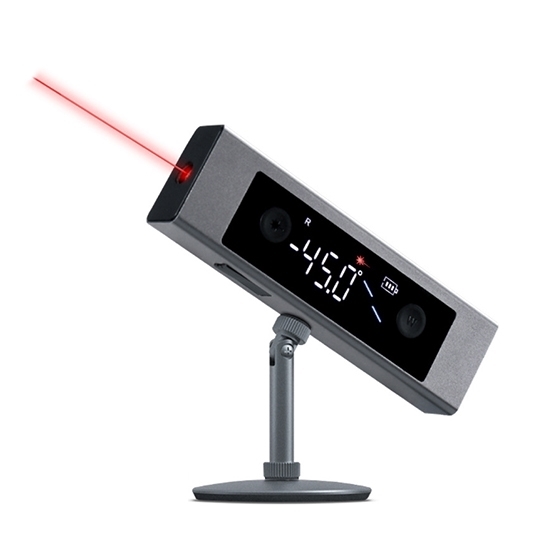

    Mini Laser Digital Inclinometer With Stand

    $97.88
    Mini laser digital inclinometer with stand includes cross and linear laser alignment, providing ±40° dual axis range, 4×90° single axis. Using magnetic adsorption on the workpiece, the electronic inclinometer features ±0.3° accuracy, 0.1° resolution, and 0.1° repeatability. ATO digital level inclinometer operates within 0-40°C environments while maintaining ±5mm error at 2m distance.
    SKU: ATO-DMI-119
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Measuring dual-axis cross and linear laser alignment, high accuracy miniature laser inclinometer ensures reliable angle reading. Digital display delivers clear, immediate results, and portable design supports various measurement scenarios.

    Specification

    Measurement Axis Single Axis Dual Axis
    Measuring Range 4×90° ±40°
    Resolution 0.1° 0.1°
    Accuracy ±0.2° ±0.3°
    Display Digital
    Laser Accuracy Error of ±5mm at 2m distance
    Repeatability 0.1°
    Power Supply Type-C Charging
    Power Type 3.7V Lithium Battery
    Operating Environment 0-40°C (Humidity ≤80%)
    Magnet The magnetic adsorption measurement surface can be adsorbed on the workpiece for measurement
    Reference Zero point measurement based on the horizontal plane
    Size 119mm*35mm*20mm


    Features

    • Dual-axis laser measurement: High precision digital inclinometer projects cross-line lasers simultaneously on both sides.
    • Dual-sided color displays: Bright high-definition screens on both surfaces ensure perfect readability from any viewing angle.
    • Compact portable design: Portable inclinometer features 119x35x20mm dimensions and lightweight 100g construction.
    • Magnetic adsorption capability: Built-in magnets provide secure attachment to various metal surfaces.
    • Automatic screen rotation: Dual-sided high definition color screens automatically flip orientation when inverted.
    • Type-C fast charging: High-capacity battery with modern Type-C charging interface.
    • Versatile stand compatibility: Digital level protractor inclinometer works with a universal stand for 360° projection.
    • Simplified button operation: Easy-to-use controls with intuitive interface design.
    • Multiple measurement modes: Switches freely between angle and slope measurement functions.
    • Precision laser projection: Lasers on both sides remain clearly visible even in bright working environments.

    Dimension (Unit: mm)

    Mini laser digital inclinometer dimension

    Details

    Mini laser digital inclinometer details

    Laser Type

    Mini laser digital inclinometer laser type

    Measuring Mode

    Mini laser digital inclinometer measuring mode

    Application

    Mini laser digital inclinometer application

    Tips: What are the ideal usage environments and key advantages of this mini laser digital inclinometer?

    This digital level inclinometer is optimized for convenient indoor applications such as office setups, furniture assembly, and DIY projects, where its bright cross-line laser ensures clear alignment without complex automatic leveling. The compact design and magnetic base allow flexible use on various surfaces, providing reliable angle measurement and slope conversion for everyday tasks. While specifically engineered for optimal performance in indoor lighting, the tilt meter delivers precision and ease-of-use that streamlines workflows in home, workshop, or professional office scenarios.
