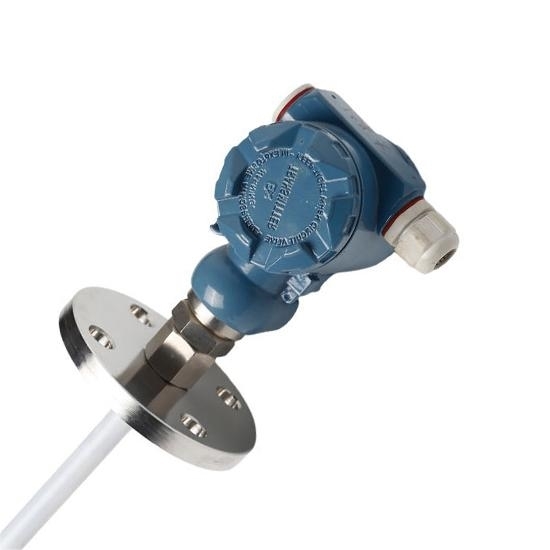

RF Capacitive Level Sensor for Corrosive/High-temp Liquids

Write a review

$417.50

RF capacitive level sensor provides 0.5% F.S. accuracy for 0-30m measurement. The liquid level sensor features a -50°C~250°C probe temperature and 4.0 MPa pressure rating. 316 Stainless Steel or PTFE construction ensures compatibility with corrosive media like sulfuric acid. Exibllct6 explosion-proof and IP67 protection guarantee safety. Standard 4-20mA or RS-485 output enables easy integration.

Output *
Measuring Range *

SKU: ATO-LEVS-SP60

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Engineered for harsh settings (high-temp, high-pressure and corrosive liquid applications), ATO RF capacitive level probe maintains stable performance with minimal temperature drift. The construction of this acid level sensor supports continuous monitoring in demanding conditions with 24V DC supply, ensuring adaptability.

Specification

Model	ATO-SP-60
Measuring Range	100PF~5000PF
Detection Range	0-30m
Measurement Accuracy	0.5%F.S
Pressure Rating	16 kg (Higher ratings customizable)
Probe Temperature	-50°C~250°C
Ambient Temperature	-40°C~85°C
Storage Temperature	-55°C~125°C
Supply Voltage	24V
Material	316 Stainless Steel, 1Gr18Ni19Ti, or PTFE
Explosion-proof Rating	Exibllct6
Temperature Drift	≤0.01%FS/°C (within 0~70°C range)
Protection Rating	IP67
Output Signal	Standard 4-20mA (RS-485 communication optional)
Medium Temperature	-30°C~350 °C
Medium Pressure	1.6, 2.5, 4.0 MPa
Suitable Applications	Purified water, alcohol, alkali, nitric acid, oil, sulfuric acid

Features

Accuracy: RF capacitive level transmitter delivers high precision with 0.5% F.S. accuracy across the entire 0-30m detection range.
Wide temperature endurance: Probe withstands extreme temperatures from -50°C to 250°C for reliable high-temperature process monitoring.
Pressure resistance: Handles medium pressures up to 4.0 MPa, ensuring integrity in pressurized vessel applications.
Robust construction: Manufactured from 316 stainless steel or PTFE materials for excellent corrosion resistance in harsh chemicals.
Safety certifications: ExibIet6 explosion-proof rating and IP67 protection guarantee safe operation in hazardous and demanding environments.
Stability: This industrial level sensor maintains minimal temperature drift, ≤0.01%FS/°C, for consistent readings.
Output flexibility: Features standard 4-20mA output with optional HART or RS-485 communication for versatile system integration.
Media compatibility: The fluid level sensor is suitable for a wide range of media including purified water, alcohol, oil, acids, and alkalis.
Electrical robustness: Designed for reliable performance within a wide -40°C to 85°C ambient temperature range.

Dimension (Unit: mm)

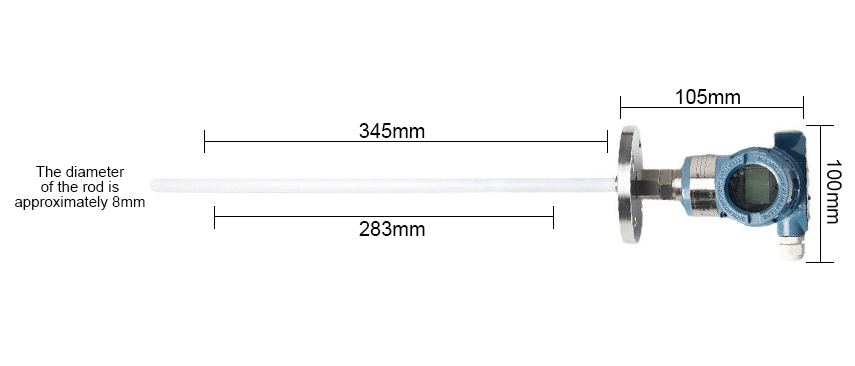

RF capacitive level sensor dimension

Wiring

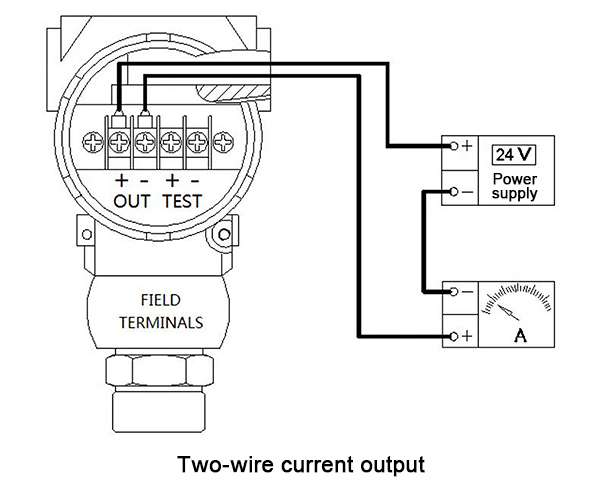

RF capacitive level sensor two wire current output

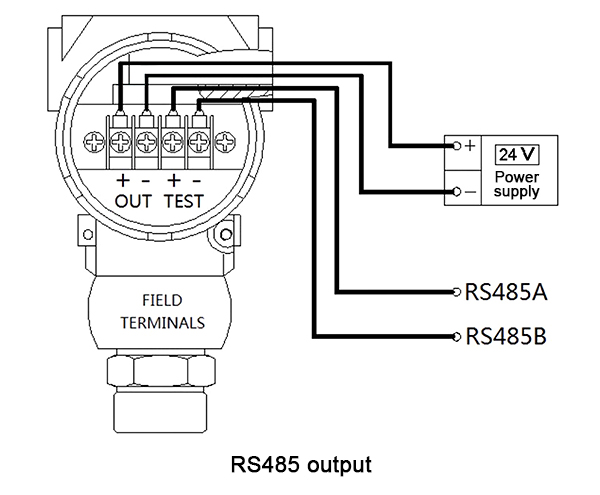

RF capacitive level sensor RS485 output

Installation Diagram

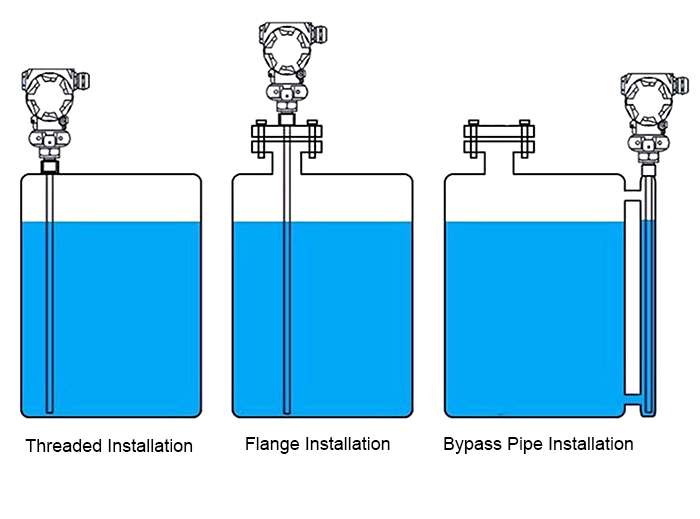

RF capacitive level sensor installation diagram

Application

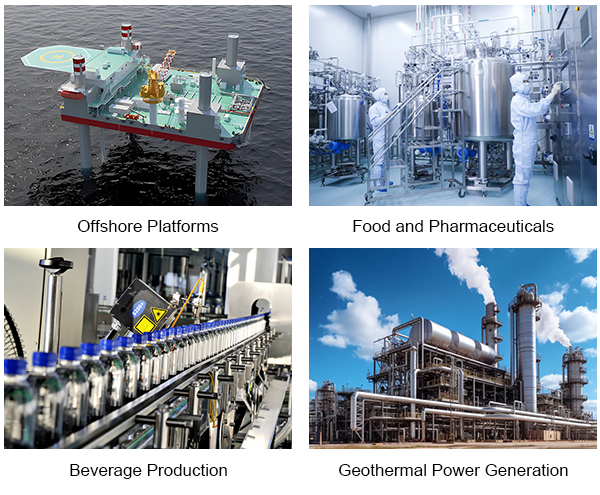

RF capacitive level sensor application

Tips: Can RF capacitive level sensor be used in high-pressure tanks?

Absolutely. The capacitive liquid level sensor is engineered for high-pressure applications, with a robust pressure rating of up to 4.0 MPa. This makes the chemical level sensor ideal for use in pressurized vessels, reactors, and pipelines commonly found in chemical processing, power generation, and oil and gas industries. The durable construction ensures long-term stability and reliable, accurate level measurement even under continuous high-pressure conditions.
