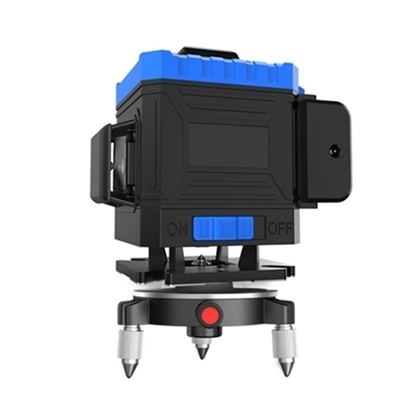

    Rotary Green Laser Level, 12 Line, 360 Degree

    Get a 12 lines green laser level tool online, the rotary green laser level with ±3° self-leveling range, 8 horizontal line and 4 vertical lines, 360-degree precise positioning of vertical lines reduces errors and increase efficiency.
    SKU: ATO-LL-12
    30-day Returns
    Delivery date: 6-12 days

    High-performance self-leveling laser level with 4 vertical line and 8 horizontal line, 360° rotation, with 5800 mhA rechargeable lithium battery for 72 hours standby, remote control, more convenient and quick.


    Model ATO-SL-12
    No.of Laser Lines 12
    Leveling Type 4 vertical line, 8 horizontal line, 6 crossing line
    Laser Wavelength 635nm
    Self-Leveling Range ±3°
    Launch Angle ≥120°
    Horizontal Accuracy 5m±1mm
    Vertical Accuracy 5m±1mm
    Plumb Dot Accuracy ±1mm at 1.5m
    Line Width 2mm
    Line Color Emerald green
    Power Supply 2 x 5800mA rechargeable lithium battery (72 hours standby)
    IP Rating IP 54
    Operation Temperature -10℃~50℃
    Battery Type Digital LCD rechargeable lithium battery (8 hours standby)
    Function Key Fingerprint touch buttons
    Wall Distance 7mm
    Ground Distance 6mm
    Laser Head Made in Germany
    Working Time 12 hours
    Outdoor Visible Distance About 15m
    Remote Control Yes
    Slash Mode Yes
    Weight 3kg

    Packing List

    • 1 x 8 Line Green Laser Level
    • 2 x 5800mA Lithium Battery
    • 1 x Power Adapter
    • 1 x Magnetic Bracket
    • 1 x Adjustable Lifting Platform
    • 1 x Magnetic Pivoting Base
    • 1 x Hand-shell Carrying Case
    • 1 x Remote Control
    • 1 x Conversion Screw
    • 1 x User Manual

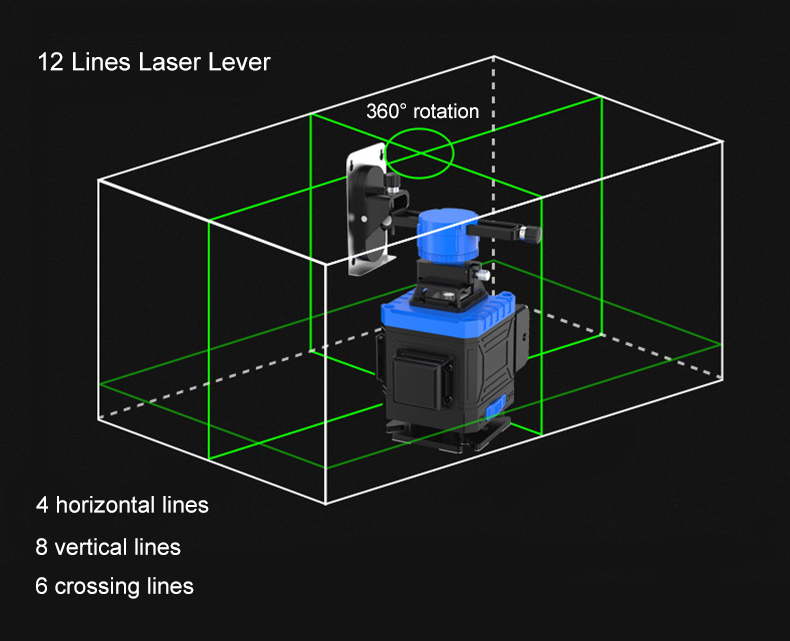

    12 Line Laser Level Diagram

    12 line rotary laser level diagram

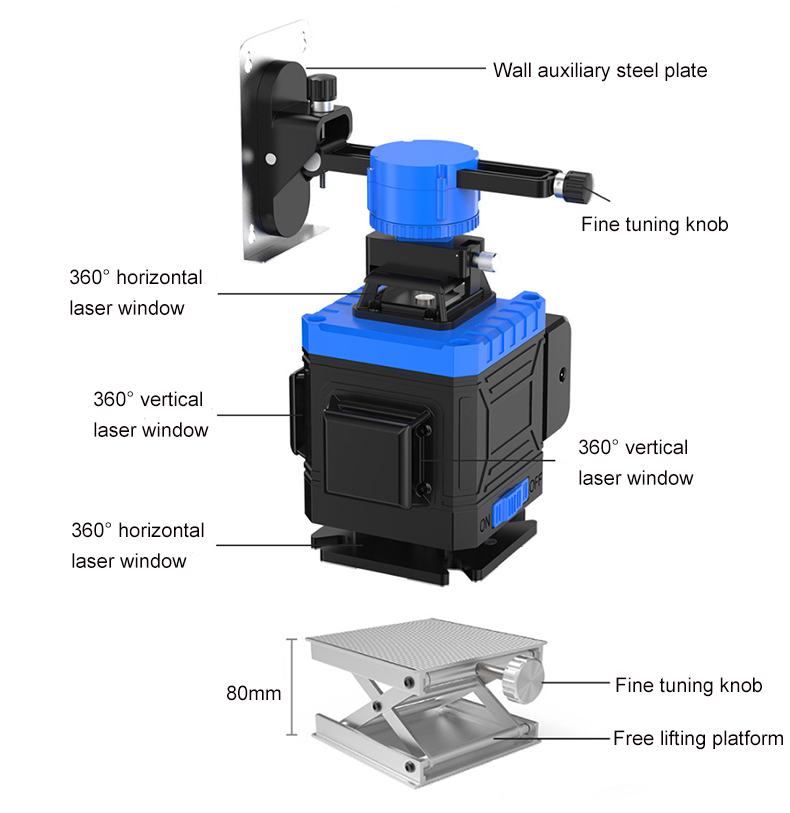

    Rotary laser level detail


    ATO high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

    Rotary laser level application

    Tips: Is a green laser level better than red?

    A green laser light is 10 to 50 times brighter than a red light laser. Green lasers are much more efficient and visible in areas of broad daylight and direct sunlight. They are also able to travel longer distances, which is why they are so popular on construction sites.
