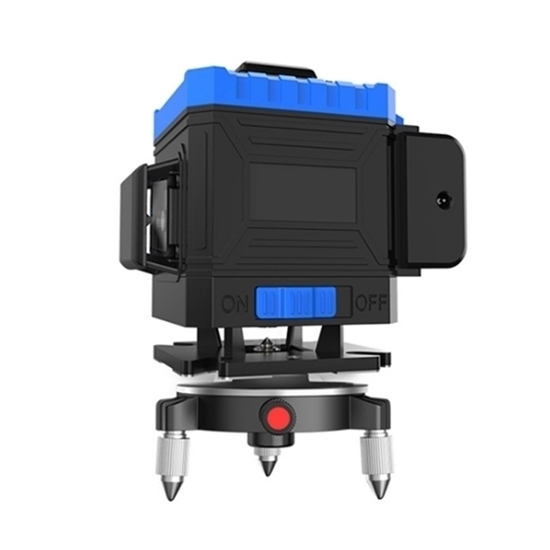

    Rotary Green Laser Level, 8 Line, 360 Degree

    ATO high-quality green laser level comes with 4 vertical lines, 4 horizontal lines and 2 crossing lines, the laser wavelength of 635nm, launch angle ≥120°. 360° rotation self-leveling laser level suitable for indoor/outdoor use.
    SKU: ATO-LL-08
    30-day Returns
    Delivery date: 6-12 days

    Lower cost rotary laser level with 5 green laser lines, 360° rotating base, self-leveling green rotating laser is IP54 rated, which means that it’s protected against dust and water, providing a longer product life.


    Model ATO-SL-08
    No.of Laser Lines 8
    Leveling Type 4 vertical line, 4 horizontal line, 2 crossing line
    Laser Wavelength 635nm
    Self-Leveling Range ±3°
    Launch Angle ≥120°
    Horizontal Accuracy 5m±1mm
    Vertical Accuracy 5m±1mm
    Plumb Dot Accuracy ±1mm at 1.5m
    Line Width 2mm
    Line Color Emerald green
    Power Supply 2 x 5800mA rechargeable lithium battery (72 hours standby)
    IP Rating IP 54
    Operation Temperature -10℃~50℃
    Battery Type Digital LCD rechargeable lithium battery (8 hours standby)
    Function Key Fingerprint touch buttons
    Wall Distance 7mm
    Ground Distance 6mm
    Laser Head Made in Germany
    Working Time 12 hours
    Outdoor Visible Distance About 15m
    Remote Control Yes
    Slash Mode Yes
    Weight 3kg

    Packing List

    • 1 x 8 Line Green Laser Level
    • 2 x 5800mA Lithium Battery
    • 1 x Power Adapter
    • 1 x Magnetic Bracket
    • 1 x Adjustable Lifting Platform
    • 1 x Magnetic Pivoting Base
    • 1 x Hand-shell Carrying Case
    • 1 x Remote Control
    • 1 x Conversion Screw
    • 1 x User Manual

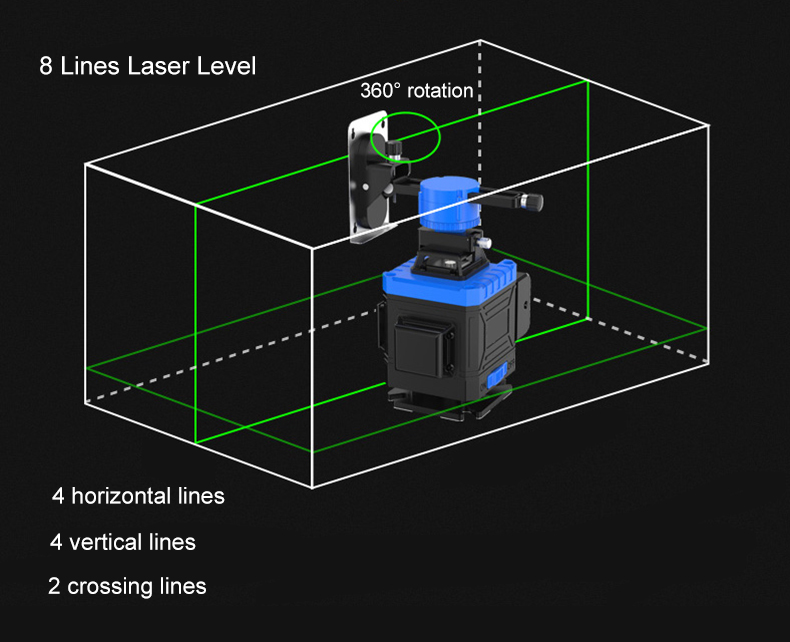

    8 Line Laser Level Diagram

    8 line rotary laser level diagram


    Rotary laser level detail


    ATO high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

    Rotary laser level application

    Tips: The basic structure of the laser level

    • Telescope: It is mainly used to observe the target. It can be subdivided into three parts: objective lens, eyepiece, and reticle. The objective lens can be used to collect light; the eyepiece is used to straighten the image, and the reticle is used to align the target.
    • Level and turntable: The level can be used to display the level state; the turntable is used to rotate the lens barrel for observation while maintaining the instrument level.
    • Base: Carrying the mirror and the level, providing the connection between the level and the tripod, which can be used to adjust the level of the level.
