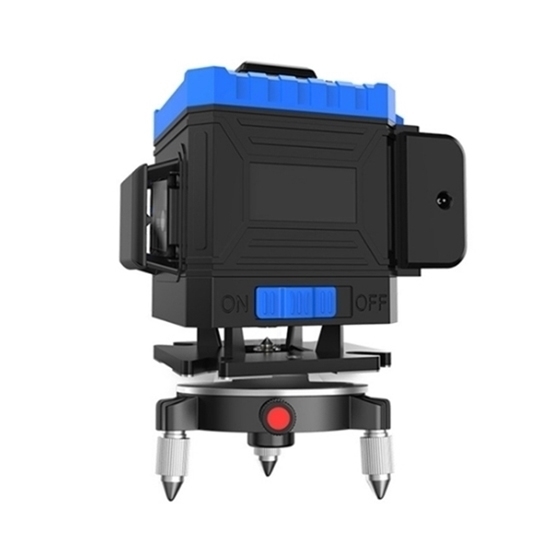

    Rotary Green Laser Level, 16 Line, 360 Degree

    High accuracy green beam laser level with 8 vertical line, 8 horizontal line and 10 crossing line, IP54 waterproof rating. The green laser can rotate 360 degrees to cover the floor, walls, and ceiling of the entire room so it is perfect for home decorating, hanging murals, laying floors, painting, and more.
    SKU: ATO-LL-16
    30-day Returns
    Delivery date: 6-12 days

    Rotary laser level allows 360° free rotation of the rotary laser level and projection of the laser line at any position or angle. ATO green laser level takes upgraded diode and chip tech with bright, clear, focused green lines laser, more accurate and reliable than traditional line drawing methods.


    Model ATO-SL-16
    No.of Laser Lines 16
    Leveling Type 8 vertical line, 8 horizontal line, 10 crossing line
    Laser Wavelength 635nm
    Self-Leveling Range ±3°
    Launch Angle ≥120°
    Horizontal Accuracy 5m±1mm
    Vertical Accuracy 5m±1mm
    Plumb Dot Accuracy ±1mm at 1.5m
    Line Width 2mm
    Line Color Emerald green
    Power Supply 2 x 5800mA rechargeable lithium battery (72 hours standby)
    IP Rating IP 54
    Operation Temperature -10℃~50℃
    Battery Type Digital LCD rechargeable lithium battery (8 hours standby)
    Function Key Fingerprint touch buttons
    Wall Distance 7mm
    Ground Distance 6mm
    Laser Head Made in Germany
    Working Time 12 hours
    Outdoor Visible Distance About 15m
    Remote Control Yes
    Slash Mode Yes
    Weight 3kg

    Packing List

    • 1 x 8 Line Green Laser Level
    • 2 x 5800mA Lithium Battery
    • 1 x Power Adapter
    • 1 x Magnetic Bracket
    • 1 x Adjustable Lifting Platform
    • 1 x Magnetic Pivoting Base
    • 1 x Hand-shell Carrying Case
    • 1 x Remote Control
    • 1 x Conversion Screw
    • 1 x User Manual

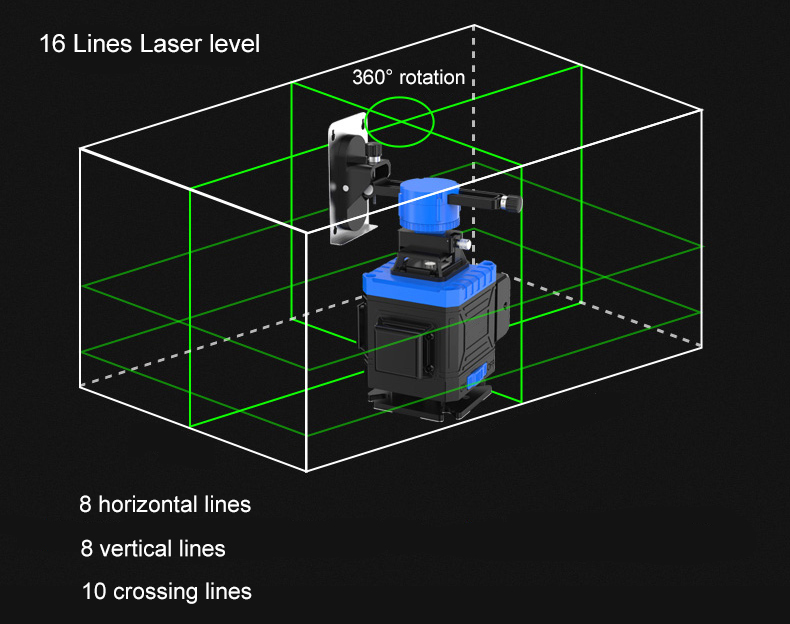

    16 Line Laser Level Diagram

    16 line rotary laser level diagram


    Rotary laser level detail


    ATO high-intensity laser level is a common measuring tool for measuring angles. The high-precision green light level can be widely used in metallurgical steel plate cutting, stone cutting, wood cutting, machine vision, and other fields.

    Rotary laser level application

    Tips: How to select the right laser level?

    1. Verticality: Because the verticality determines the angle difference after laser emission, the angle difference will affect the horizontal size.
    2. Launch angle: Laser is also a kind of light source, any light source that emits light will have a light angle. Therefore, when selecting, under the same distance condition, the smaller the emitted light spot, the higher the accuracy.
    3. The firmness of the structure: The firmness of the structure determines whether the laser level is easily damaged during storage and use, even after it is dropped to the ground. If it is not easy to damage, it depends on whether it will affect the overall frame structure. Otherwise, it will be broken after using it several times, or it will be checked frequently.
