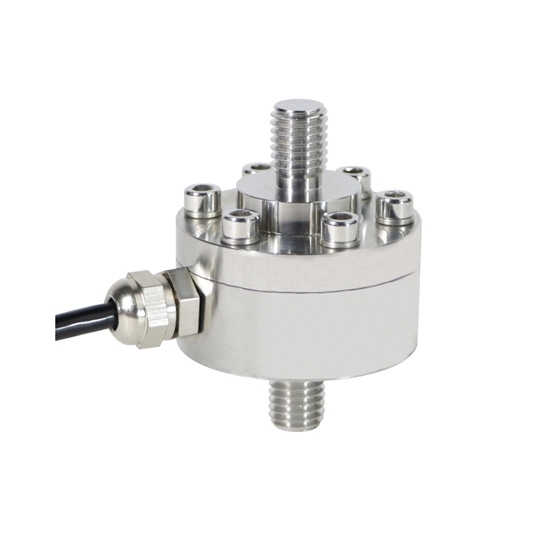

Tension and Compression Load Cell, Threaded Inline, 1kN/5kN to 20kN

4.6 out of 5 based on 3 reviews | Write a review

$176.89

Buy affordable tension and compression load cell, threaded inline, support 0-20kN measuring range and repeatability of 0.5% F.S. with 350/700Ω impedance and 10kHz response frequency. The load cells are designed with a stainless steel body for durability, and can withstand an operating voltage of 5-15 V.

Capacity *
With Transmitter *
With Display Controller *

SKU: ATO-LC-107

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

After purchasing one ATO load cell, you can buy a special digital panel meter to obtain readings directly, or buy a transmitter to output standard signal to PLC, DCS and other systems. Customized output signal is 0-5V, 0-10V, or 4-20mA.

Note: The load cell cannot be connected to both the transmitter and the controller at the same time — only one can be selected.

Reliable and durable threaded inline tension and compression load cell. It can be selected from 0.5KN/1KN/2KN/3KN/5KN/10KN/20KN and is available at an affordable price. With a rated output of 1.5-2.0mV/V and a zero balance of ±2% F.S., this load cell ensures high accuracy and performance. The tensile and compression load cell can be used in a variety of fields such as automotive press fitting, automated assembly, 3C product testing, medical testing, and other applications.

Specification

Model	ATO-DYMH-107
Capacity	0.5KN/1KN/2KN/3KN/5KN/10KN/20KN (optional)
Matched Transmitter	ATO-LCTR-OA (Click it to the transmitter page)
Matched Display Controller	ATO-DPM-DY800 (Click it to the controller page)
Rated Output	1.5-2.0mV/V
Zero Balance	±2%F.S.
Non-Linearity	0.5%F.S.
Hysteresis	0.5%F.S.
Repeatability	0.5%F.S.
Creep	0.05%F.S. (30min)
Temp Effect on Output	0.05%F.S./10°C
Temp Effect on Zero	0.05%F.S./10°C
Response Frequency	10kHz
Material	Stainless steel
Impedance	350/700Ω
Insulation	≥5000MΩ/100VDC
Operating Voltage	5-15V
Operating Temp Range	-20°C~65°C
Safe Overload	1.5
Maximum Overload	2
Cable Specifications	φ5*2m
Cable Ultimate Pull	10kg

Dimension (unit: mm)

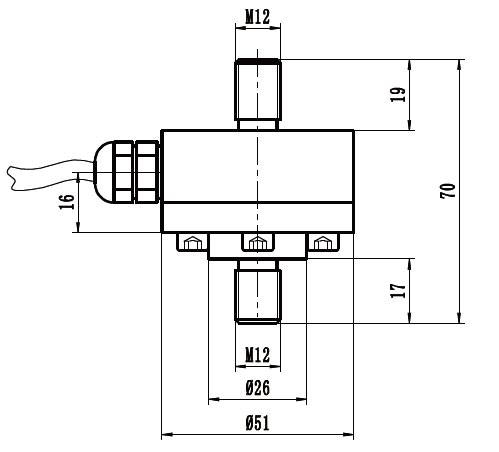

Tension and compression load cell dimensions

Wiring Diagram

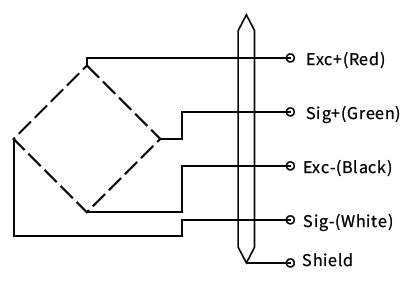

Tension and compression load cell wiring diagram

Force Diagram

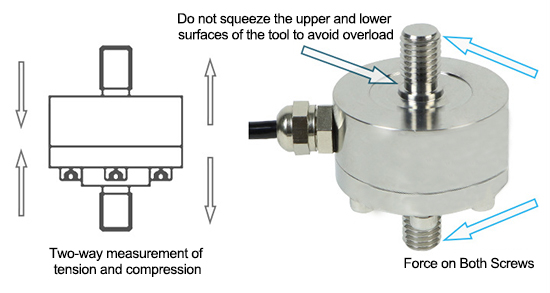

Tension and compression load cell force diagram

Application

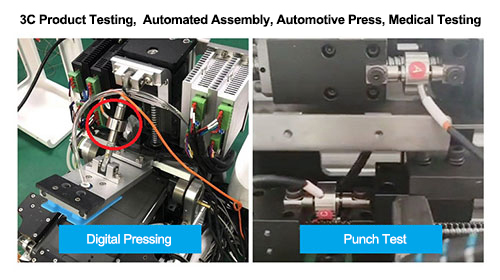

Tension and compression load cell application

Tips: How to ensure the measurement accuracy of the tension and compression load cell?

In order to ensure the accuracy of the tension and compression load cell, it is necessary to pay attention to the following points:

Correct Installation: Avoid additional stress interference and ensure that the load cell is subjected to uniform forces.
Periodic Calibration: Use standard weights or calibration equipment for periodic calibration.
Environmental Control: Avoid temperature changes, excessive humidity or electromagnetic interference affecting sensor performance.
Reasonable Range of Use: To avoid overloading or excessive impact force, so as not to affect the life and accuracy of the load cell sensor.
