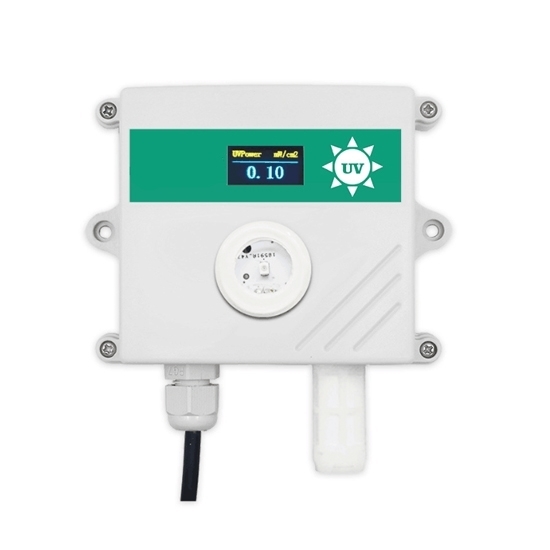

UV Light Intensity Sensor, 0-15mW/cm2

The UV light intensity sensor measures 0-15mW/cm² in the 240-370nm range with ±10% accuracy at 365nm. It operates on 10-30V DC, supports 485 ModBus-RTU, and offers 4-20mA or 0-5V/0-10V outputs with a 0.2s response time.

Specification

Features

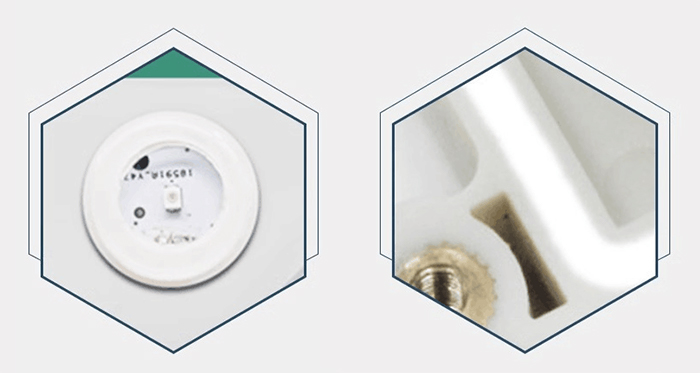

• High Sensitivity Sensor: Equipped with a high-sensitivity UV sensor, accurately measuring UV intensity within a wavelength range of 240-370 nm.
• Premium Transmitting Materials: Made with high-quality light-transmitting materials for enhanced measurement accuracy and reliability.
• OLED Display: Supports OLED screen for clear and real-time display of UV intensity and UV index, making monitoring more intuitive.
• Durable, High-Protection Shell: Features a robust, waterproof, and dustproof exterior suitable for harsh outdoor environments, withstanding rain and snow.
• Superior Anti-Interference: Designed to maintain accurate readings even in high-interference settings, ensuring stable performance.
• High-Quality Sensor Components: Incorporates reliable, high-precision components for consistent and stable UV measurements.

Wiring Method

Application

Tips: What benefits does the OLED display offer on this UV sensor?

The OLED display provides a clear and immediate visual output of UV intensity and UV index values, making it easy to read data in real-time without additional devices. Unlike traditional LCDs, OLED displays offer better contrast, are viewable from wider angles, and consume less power, making them efficient for long-term use. The display also enhances usability by allowing users to see accurate readings even in dimly lit environments, which is particularly beneficial for both indoor and outdoor monitoring applications.
