    What is an FRL Unit?

    As a common combined device in industrial equipment, filter-regulator-lubricator (FRL unit) plays an irreplaceable and important role in modern production. Its role is not limited to managing pressure, purification and lubrication during the flow of gas or liquid, but is also of great significance in improving production efficiency, ensuring equipment safety and extending equipment life. By effectively managing the pressure, purification and lubrication of fluid media, it can ensure the normal operation of equipment, improve production efficiency, reduce production costs, and provide a solid guarantee for the sustainable development of industrial production.

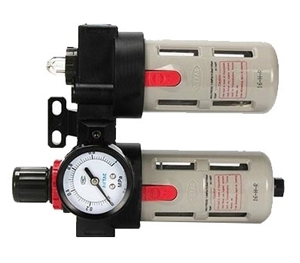

    FRL filter regulator lubricator

    Composition of FRL Unit


    • The filter is the first component of the FRL unit. Its main function is to remove solid particles, moisture, oil mist and other pollutants in the compressed air.
    • It usually contains a filter media, such as fiber or activated carbon, that effectively captures and filters airborne impurities.
    • The function of the filter is to protect downstream pneumatic equipment and prevent contaminants from entering and damaging pneumatic tools, valves and other critical components.
    • Filters usually have different filtration levels to meet the air quality requirements in different application scenarios, such as coarse filtration and fine filtration.


    • The pressure regulator is the second component of the FRL unit, and its main function is to control and regulate the pressure of compressed air.
    • It usually contains a pressure regulating mechanism that can adjust the outlet pressure manually or automatically to keep it within the required range.
    • The pressure regulator ensures stable pressure of compressed air to avoid damage or performance degradation of pneumatic equipment due to excessively high or low pressure.
    • The voltage regulator can also provide overload protection. When abnormal pressure occurs in the system, it can automatically cut off or reduce the output pressure to protect the safe operation of the system and equipment.


    • The lubricator is the third component of the FRL unit. Its main function is to provide the necessary lubricant for pneumatic equipment and reduce friction and wear.
    • It usually contains a container containing lubricant or lubricant, and the flow and release of the lubricant can be controlled by a regulating device.
    • The lubricant sprays lubricant into the compressed air, mixing it with the airflow and delivering it to the working parts of the pneumatic equipment, such as pistons, valves and seals.
    • With proper lubrication, lubricators can reduce friction losses in pneumatic equipment, extend its service life, and improve its performance and reliability.

    These three main components of the FRL unit work together to protect, condition and lubricate the compressed air in the pneumatic system, ensuring its reliability, efficiency and safety in a variety of industrial applications.

    Importance of FRL units in industrial applications

    FRL units can not only protect equipment and improve efficiency, but also ensure the safety of workers and provide a stable and reliable pneumatic system for industrial production.

    • Protective equipment: The FRL unit can effectively remove solid particles, moisture, oil mist and other pollutants in compressed air through filter components. If these contaminants enter pneumatic equipment, they will cause problems such as valve blockage, seal wear, and piston sticking, which will affect the normal operation of the equipment or even damage the equipment. Through the filtration function of the FRL device, pneumatic equipment can be protected from pollutants and the service life of the equipment can be extended.
    • Stable pressure: The pressure regulator is an important part of the FRL unit, which can stably and accurately control the output pressure of compressed air. In industrial production, many pneumatic equipment have very strict requirements for input pressure. Too high or too low pressure will affect the normal operation of the equipment. Through the pressure regulator in the FRL device, it can be ensured that the output pressure of the compressed air is always within the appropriate set range, thus ensuring the stability and reliability of the equipment.
    • Improve efficiency: The lubricator is another important component of the filter-regulator-lubricator FRL unit. It can provide necessary lubricants for pneumatic equipment and reduce friction and wear. Without adequate lubrication, pneumatic equipment may become stuck, run poorly, or even be damaged, affecting the efficiency of industrial production and the normal operation of production lines. Through the lubrication effect of the FRL unit, the friction loss of the equipment can be effectively reduced and the working efficiency and production efficiency of the equipment can be improved.
    • Ensure safety: FRL units not only protect equipment but also ensure the safety of workers. The filter can filter out harmful substances in the air and prevent them from entering the pneumatic system and working environment, thus ensuring the health and safety of workers. At the same time, the pressure regulator can ensure that the pressure in the pneumatic system is always within a safe range, avoiding accidents and equipment damage caused by too high or too low pressure.

    Applications of FRL units

    FRL units have a wide range of applications in industrial applications, covering many industries such as manufacturing, engineering and construction, aerospace, food processing, and pharmaceutical manufacturing. They provide key filtration, pressure regulation and lubrication functions for pneumatic systems, ensuring stable operation of equipment and efficient production processes.

    • Manufacturing: In the manufacturing industry, filter-regulator-lubricator units are widely used in various production lines and processes. For example, in the automotive manufacturing industry, FRL units are used to provide clean, stable compressed air to drive pneumatic tools and actuators, such as cylinders, valves, etc. At the same time, the FRL unit can also provide the required pneumatic energy for machine tools and automation equipment to ensure stable operation and efficient production of the equipment.
    • Engineering construction: In the field of engineering and construction, filter-regulator-lubricator FRL units are often used to drive various pneumatic tools and equipment, such as nailing machines, paint sprayers, lifting equipment, etc. The stable pressure and clean air provided by the FRL unit can ensure the normal operation of these tools and equipment and improve the construction efficiency and quality of engineering construction.
    • Aerospace: In the aerospace field, FRL units are widely used in the production and maintenance of aircraft and spacecraft. They provide clean and stable compressed air to the pneumatic system and are used to drive various hatches, landing gear, hydraulic systems and other key components to ensure the normal operation and safe flight of the aircraft.
    • Food processing: In the food processing and packaging industry, FRL units are used to provide clean, oil-free compressed air for driving various pneumatic conveying systems, packaging machinery and filling equipment. Through the filtration and lubrication functions of the FRL unit, hygienic safety and production efficiency during food processing can be ensured.
    • Pharmaceutical manufacturing: In the field of pharmaceutical manufacturing, filter-regulator-lubricator units are often used to drive various pneumatic tools and equipment, such as sprayers, filling machines, syringes, etc. The stable pressure and clean air provided by the FRL unit can ensure that the production process of pharmaceutical products is safe and reliable and meets relevant hygiene standards and quality requirements.
