    What is Working Principle of PV Combiner Box?

    In the realm of solar power systems, the PV (Photovoltaic) combiner box plays a pivotal role in orchestrating the seamless functioning of solar arrays. This blog post delves into the intricate working principles of the PV combiner box, shedding light on its significance in maximizing energy production and ensuring system reliability.

    Overview of PV Combiner Box

    The PV combiner box serves as a central hub for connecting multiple solar panels, consolidating the electrical outputs and streamlining them into a unified DC (Direct Current) output. This centralized approach simplifies maintenance, monitoring, and enhances overall system efficiency.

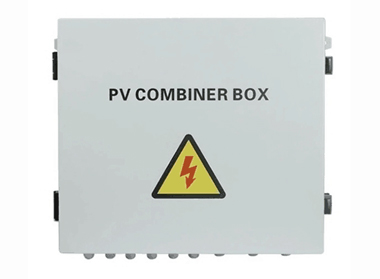

    PV combiner box

    Working Principle of PV Combiner Box

    The PV combiner box operates on a sophisticated set of principles that enable it to efficiently gather and channel the electrical outputs from individual solar panels. Here's a detailed breakdown of its working principles:

    Parallel Connection

    • At the core of the PV combiner box's working principle is the concept of parallel connection. Each solar panel is connected in parallel to the combiner box, allowing the electrical currents generated by the panels to flow simultaneously.
    • This parallel arrangement ensures that the voltage across each panel remains constant while the total current output is the sum of the currents from all the panels. This parallel configuration is crucial for maximizing the overall power output of the solar array.

    Input Terminals and Bus Bars

    • The PV combiner box features multiple input terminals, corresponding to the number of solar panels in the array. These terminals act as entry points for the DC power generated by the panels.
    • Internal bus bars within the combiner box play a pivotal role in efficiently consolidating the DC outputs from individual panels. The bus bars serve as conductive pathways, ensuring that the combined current is effectively channeled towards the next stage of the solar power system.

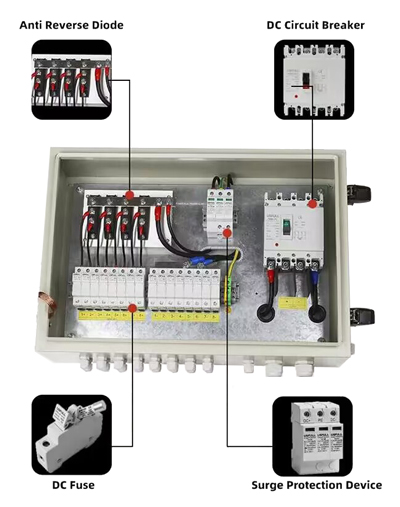

    Combiner box detail

    Voltage Monitoring

    • A key aspect of the PV combiner box's functionality is its ability to constantly monitor the voltage levels from each solar panel. This monitoring ensures that the panels are operating within the specified voltage range.
    • If any panel deviates from the prescribed voltage levels due to factors such as shading or malfunctions, the combiner box can take corrective actions, such as disconnecting the affected panel or adjusting the overall system voltage.

    Safety Features - Fuses and Circuit Breakers

    • Integrated fuses and circuit breakers within the PV combiner box serve as critical safety features. They protect the solar power system from overcurrent conditions, faults, and potential damage.
    • In the event of an electrical fault or overcurrent, the fuses and circuit breakers act as fail-safes, disconnecting the problematic section of the system. This not only prevents damage to the panels but also safeguards other components downstream, such as the inverter.

    Optimized Output for Inverter

    • The PV combiner box optimizes the DC power output before transmitting it to the inverter. By consolidating the currents and ensuring that the voltage levels are within the desired range, the combiner box contributes to maximizing the efficiency of the overall solar power system.
    • This optimized DC power is then fed into the inverter, where it undergoes conversion into AC (Alternating Current), making it suitable for use in homes, businesses, or the electrical grid.

    Benefits of Using PV Combiner Boxes

    • Enhanced Safety: Integrated safety features such as fuses, circuit breakers, and surge protection devices mitigate the risks associated with electrical faults and environmental factors.
    • Simplified Maintenance: The centralized design of the PV combiner box simplifies maintenance tasks, making it easier to identify and address issues within the solar power system.
    • Improved Efficiency: By optimizing the DC power output, PV combiner boxes contribute to maximizing energy production and overall system efficiency.

    The PV combiner box serves as a linchpin in the functioning of solar power systems, ensuring efficient and safe operation. Understanding its working principles is crucial for harnessing the full potential of solar energy, making it an indispensable component in the journey towards sustainable and renewable energy sources. To learn more about convergence boxes go to
