10A 1 pole 5kA Miniature Circuit Breaker

$33.38

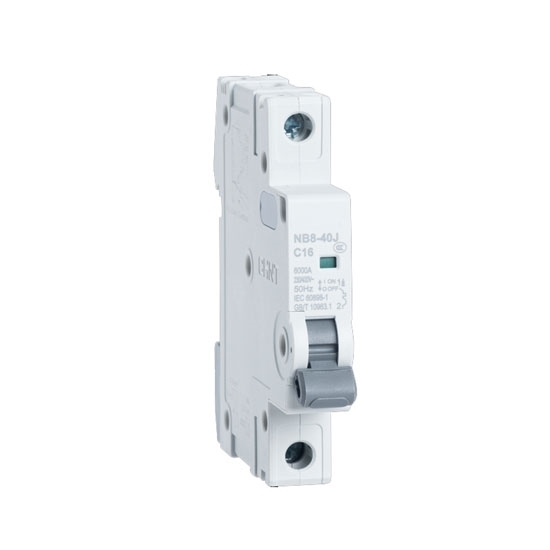

UL 1077 listed miniature circuit breaker with 1 pole, 10A current rating, standard ratings of 5 kA at 277/480V AC. Three tripping curves to choose from, easy installation on DIN rail, suitable for supplementary protection.

SKU: ATOCLXB1-10

Rated Voltage (Ue) *

Trip Curve *

B Curve
C Curve
D Curve

Qty:

Delivery date: 6-12 days

Overview

Circuit Breaker Information

Model: ATOCLXB1-10
Rated Current: 10 amp
Rated Voltage: 277/480V AC, 50Hz/ 60Hz
Number of poles: 1 pole
Module width of only 18 mm (per pole)
5 kA short circuit interrupting capacity
Complete range of UL 1077 listed DIN rail mounted
Thermal-magnetic overcurrent protection, three levels of short circuit protection, categorized by B, C and D curves

Technical Data

Standard Certifications		IEC	UL1077
Electrical Parameters	Height	86 mm
	Width	18 mm per pole
	Mounting	DIN Rail
	Rated Current (In)	1A, 2A, 3A, 4A, 6A, 10A, 13A, 16A, 20A, 25A, 32A, 40A, 50A, 63A (Available)
	Number of poles	1P, 2P, 3P, 4P (Available)
	Rated Voltage (Ue) (Optional)	240/415V or 230/400V	277/480V
	Rated Insulation Voltage (Ui)	500V
	Reted Frequency	50Hz/60Hz
	Short Circuit Interrupting Capacity (Optional)	6/10KA	5KA
	Trip Characteristic (Optional)	B Curve (3-5In)	B Curve (4In)
		C Curve (5-10In)	C Curve (7In)
		D Curve (10-20In)	D Curve (14In)
Mechanical Parameters	Electrical Life	8000 times
	Mechnical Life	10000 times
	Protection Degree	IP20
	Calibration Temperature	30℃
	Operating Temperature	-5℃~+40℃
	Storage Temperature	-25℃~+70℃
	Tightening Torque	22 Ib-in (2 Nm)
	Terminal Size Acceptability–Min/Max	2.5 mm²(12 AWG) / 25mm²(3 AWG)

Circuit Breaker Dimension

Tips: What is a miniature circuit breaker?
Miniature circuit breaker (MCB), also known as micro circuit breaker, is mainly used for alternating current 50HZ or 60HZ and the workplace below rated voltage 480/277V and rated current 63A. Miniature circuit breaker that has the features including advanced structure, reliable performance, strong breaking capacity, well designed shape and small size, is suitable for lighting of office buildings, houses and similar buildings, overload of distribution line and equipment, and short circuit protection, as well as, infrequent switch on-off operation and conversion.
Miniature circuit breaker is commonly used to connect and break the circuit by separating the moving contact and the fixed contact of miniature circuit breaker. When the miniature circuit breaker is switched on, the moving contact and the fixed contacts are closed under the opposite mechanical motion.
