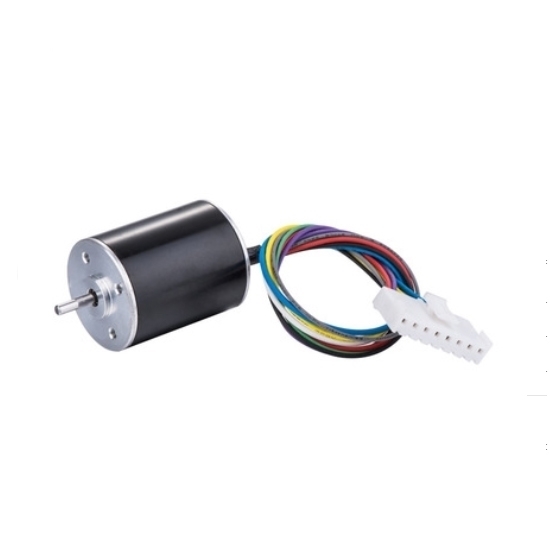

    11000 rpm 12V 24V Small Brushless DC Motor

    5 out of 5 based on 1 reviews | Write a review
    Cheap 67W 3 phase 4 pole brushless DC motor with high speed 11000 rpm, 12 volt, 24 volt voltage, brushless design for long life, is intended to fill the need for a small motor with high performance.
    SKU: ATO-BLDC-11000R
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Small Brushless DC motor Description

    12V/24V BLDC motor, with rated speed of 8250 rpm and noload speed up to 11000 high rpm, 3 phase, 4 pole, 67W rated power. Small electric motor with mini size, easy to wire and install.

    11000 rpm High Speed BLDC Motor Specifications

    Basics Model ATOWS4255-110
    Type Micro Brushless DC Motor
    Weight 210g
    Size D:42mm, L:55mm
    Usage Boat, Car, Electric Bicycle, Home Appliance, Industrial Equiment
    Technical Parameters Rated Power 67W
    Rated Voltage 12V DC 24V DC
    Rated Current 5.83A 2.91A
    Noload Current 0.81A 0.39A
    Rated Speed 8520 rpm
    Noload Speed 11000 rpm
    Rated Torque 58.1 mN.m
    Construction Permanent Magnet
    Bearing NMB Ball Bearing
    Efficiency 90%
    Motor Housing Stainless steel
    Insulation Class Class B
    Protect Feature Explosion-proof
    Wiring Diagram Pin 1 Red +5V
    Pin 2 Purple Hall A
    Pin 3 Green Hall B
    Pin 4 Grey Hall C
    Pin 5 Black GND
    Pin 6 Yellow Phase A
    Pin 7 Blue Phase B
    Pin 8 White Phase C
    Click to see the matched controller specs

    12V/24V Small BLDC Motor Dimension

    13000 rpm bldc motor dimension


    11000rpm High Speed Brushless DC Motor Details

    Tips: Advantages of Brushless DC Motor

    1. Brushless dc motor doesn't have a brush and has low interference.
    2. Without a brush, the DC brushless motor would not generate sparks as the brush motor, thus reducing the interference of sparks on the remote control radio equipment.
    3. Brushless motor has low noise and operates smoothly.
    4. Without a brush, the friction force of DC brushless motor is greatly reduced, the motor runs smoothly while noise reduces greatly. This advantage of the brushless motor is a great support for the operational stability of models.
    5. Brushless motor has a long service life and requires low maintenance cost.
    6. Without a brush, main friction occurs at bearings of the brushless motor. From another point of view, brushless motor is almost free of maintenance, as long as wiping dust for maintenance.
    Existing reviews of 11000 rpm 12V 24V Small Brushless DC Motor
    Highest degree of protection for brushless motors
    What is the highest protection degree "IP" for your BLDC motor?
    From: Mccary | Date: 25/07/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    The highest degree of protection of our brushless motors is IP65.
