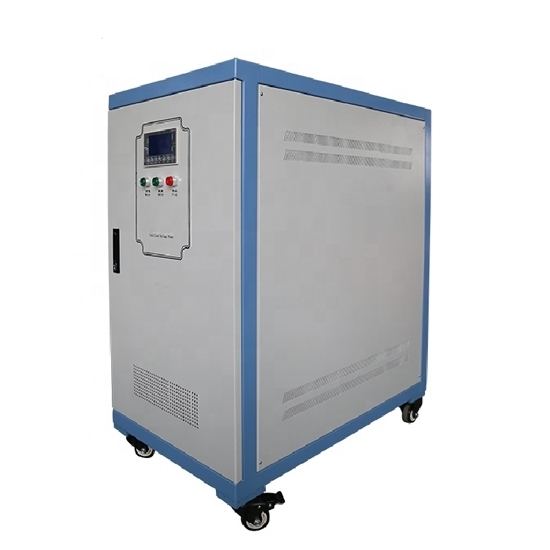

250 kVA 3 phase Industrial AC Automatic Voltage Stabilizer

250 kVA Voltage Stabilizer Features

• Input: Three phase and four-line system, 175V-265V (phase voltage), 304V-456V (line voltage)
• Output: Three phase 380V, ±1% accuracy, other voltages can be customized
• 3 years standard warranty
• High technology with computer programming control
• Step-less automatic voltage control
• Perfect protection function: Over/ low voltage protection, over heat/ load protection, short circuit protection
• High efficiency: More than 95%

250 kVA 3 phase Industrial AC Automatic Voltage Stabilizer is a adjustable automatic voltage compensation high-power regulating power device. When voltage from supply network is varied or due to loading current effect, it automatically regulates the output voltage to ensure the normal function of the varied of electric equipments.

250 kVA Voltage Stabilizer Specifications

Model Number		ATO-SBW/ZBW-250K
Capacity		250 kVA (The power capacity of voltage stabilizer needs to be 1.5~2 times greater than the load power)
		User Manual for 30kVA-3000kVA 3-phase voltage stabilizer
Phase		3 Phase 4-line
Input Voltage Range		±15% tolerance for all standard output voltages above 380V. ±20% tolerance for required 380V output and all standard voltages below.
Output Voltage		3 phase 380V (Optional: 110V/ 120V/ 208V/ 220V/ 230V/ 240V/ 400V/ 415V/ 440V/ 460V/ 480V)
Output Accuracy		±2~4%/ ±1% (Optional) * In case of output accuracy of +/- 2-4%, the voltage stabilizer will be servomotor based, and in case of output accuracy of +/- 1%, the voltage stabilizer would be SCR based.
Frequency		50Hz/60Hz
Current Type		AC
Efficiency		≥95%
Response Time		≤1.5S
Ambient Temperature		-15°C~+40°C
Cooling Method		Naturally air cooled
Insulation Resistance		≥5MΩ
Electricalintensity		Without breakdown and flashover phenomena at power frequency sine voltage 2000V for 1 min
Overload Capacity		Overload current (%)		Duration (min)
		20		≤60
		40		≤15
		60		≤5
Waveform Distortion		Non-lack fidelity waveform
Protection		Over-voltage, over-current, feed phases
Protection Grade		IP 24
Warranty		24 months
Certificate		ISO9001:2008, CE
Weight		1150 Kg
Package Size		1100x800x2000 mm

3 Phase Voltage Stabilizer Schematic Diagram

Industrial Voltage Stabilizer Inner Detail

Voltage Stabilizer Buying Tips

1. Before purchasing a voltage stabilizer, you'd better determine the reverse range and frequency of household voltage. For instance, if your voltage is pulled to about 80V and the input range of your voltage stabilizer is between 140 V and 230V, it will not work as you wish. Therefore, voltage stabilizers should be selected according to the power supply range of the service environment. It is recommended to choose a broadband voltage stabilizer.
2. You'd better know the total power of the device you need to stabilize the voltage, and the rated power of your voltage stabilizer should be 30% higher than the total power of all devices when choosing a voltage stabilizer. You should know that the heat generated by full load will increase the loss of components. When the voltage stabilizer operates overload, the required current will be too large, and the voltage will inevitably be pulled down.
